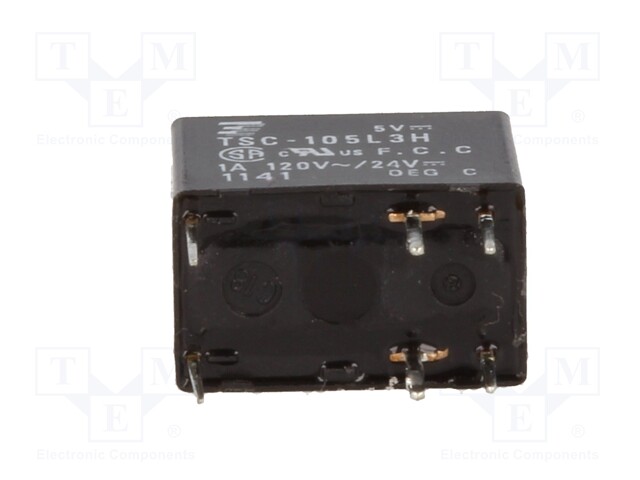

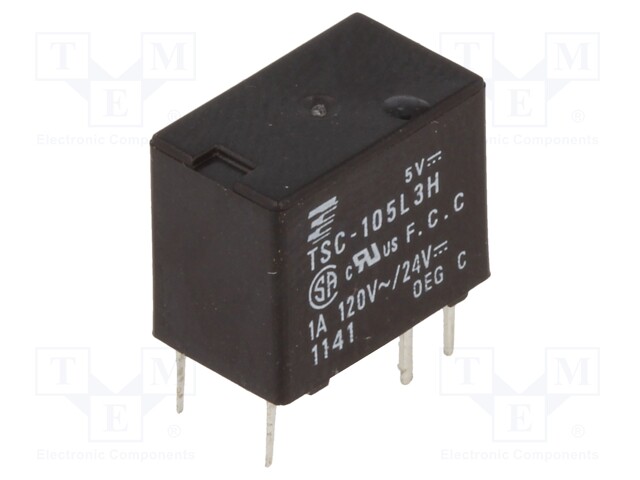

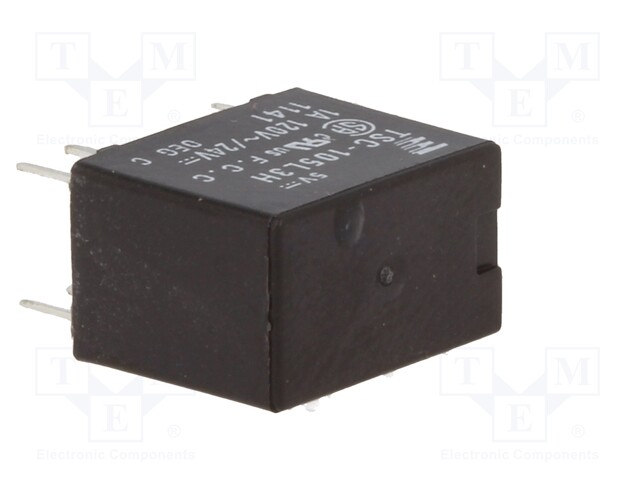

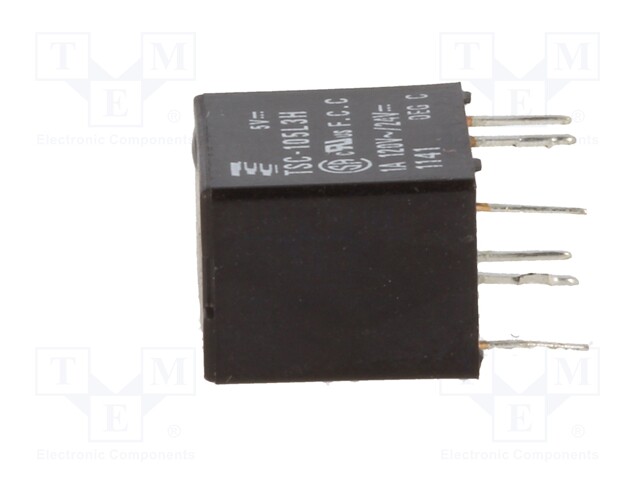

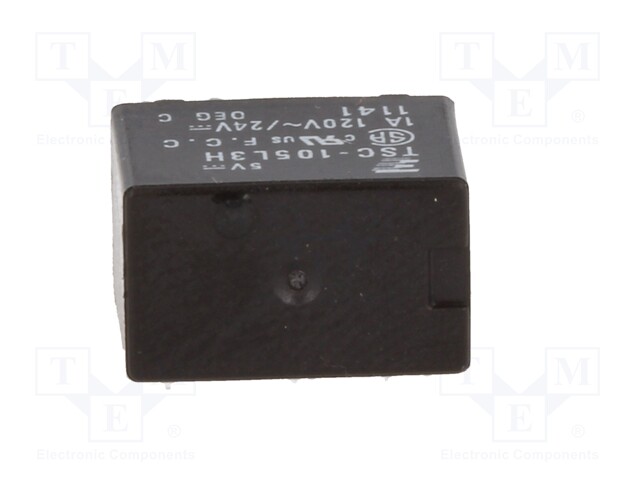

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 1A/120VAC; 1A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1-1419130-2
    Tootja: TE Connectivity
    Tootja tootekood: 1-1419130-2
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    5,12 € 5,12 € (KM-TA) 5.12 EUR

    5,12 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 5VDC; 1A/120VAC; 1A/24VDC

    Mounting PCB
    Operating temperature -40...80°C
    Contact plating silver plated
    Contact material nickel
    Terminal pitch 2.54mm

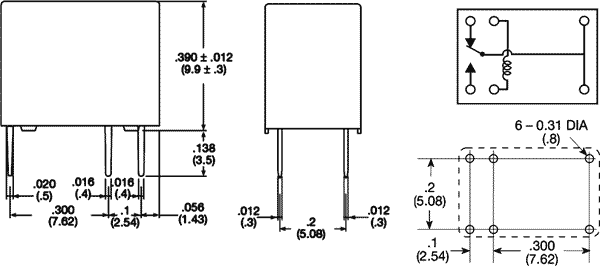

    Body dimensions 12.3x7.4x9.9mm
    Mechanical durability 5000000cycles
    Switched voltage ≤ 30V DC, ≤ 120V AC
    Electrical life 100000cycles
    Switching capacity 24W, 120VA
    Coil resistance 160Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 24V DC
    AC contacts rating @R 1A / 120V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 150mW
    Operate time 5ms
    Release time 5ms
    Coil current 30mA
