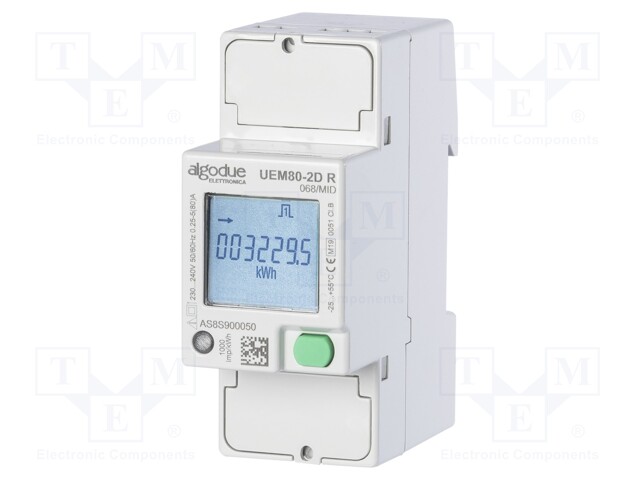

Electric energy meter; 80A; Network: single-phase; 50÷60Hz; IP51

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1107.0001.0001
    Tootja: ALGODUE
    Tootja tootekood: 1107.0001.0001
    • Mounting
    • Operating temperature
    • IP rating
    • Interface
    • Maximum current
    • Body dimensions
    • Communictions protocol
    • Input voltage
    • Kind of display used
    • Operating frequency
    • Kind of network
    • Output
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Accuracy class
    • Measuring instrument features
    • Measuring instrument features
    • Kind of counter
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Kind of meter
    • Kind of meter
    • Dimensions (W x H x D)

    220,18 € 220,18 € (KM-TA) 220.18 EUR

    220,18 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Electric energy meter; 80A; Network: single-phase; 50÷60Hz; IP51

    Mounting for DIN rail mounting
    Operating temperature -25...55°C
    IP rating IP51
    Interface RS485
    Maximum current 80A
    Body dimensions 90x36x64mm
    Communictions protocol MODBUS
    Input voltage 230...240V
    Kind of display used LCD
    Operating frequency 50...60Hz
    Kind of network single-phase
    Output pulse output SO
    Conform to the norm EN 50470-1, EN 50470-3, IEC 62053-21, IEC 62053-23
    Accuracy class B
    Measuring instrument features MID certificate, with reset function only on partial counters
    Kind of counter electronical
    Measurement AC current, AC voltage, frequency, active energy, reactive energy
    Kind of meter digital, mounting
    Dimensions (W x H x D) 36x90x64mm
