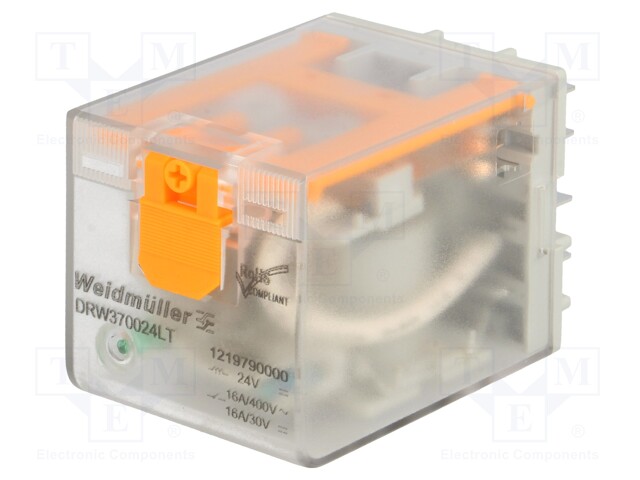

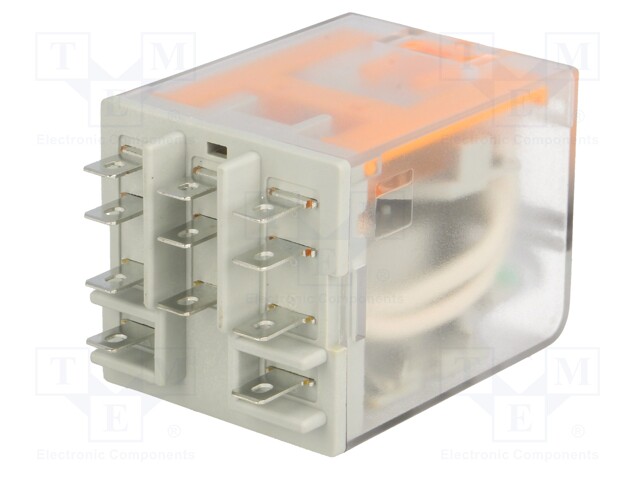

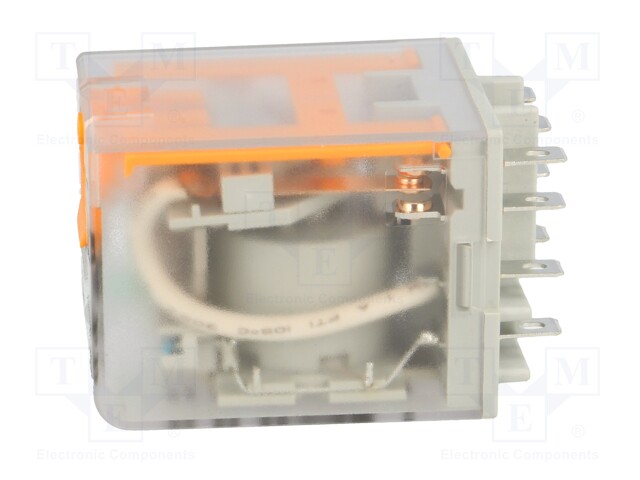

Relay: electromagnetic; 3PDT; Ucoil: 24VDC; 16A/400VAC; 16A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1219790000
    Tootja: WEIDMÜLLER
    Tootja tootekood: 1219790000
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; 3PDT; Ucoil: 24VDC; 16A/400VAC; 16A/30VDC

    Mounting socket
    Operating temperature -40...60°C
    Leads connectors
    Contact material AgCdO

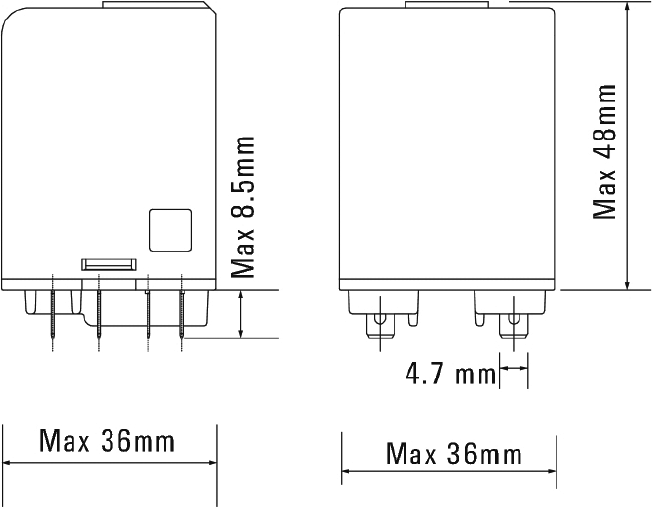

    Body dimensions 36x36x48mm
    Switched voltage ≤ 400V AC, ≤ 250V DC
    Coil resistance 400Ω
    Rated coil voltage 24V DC

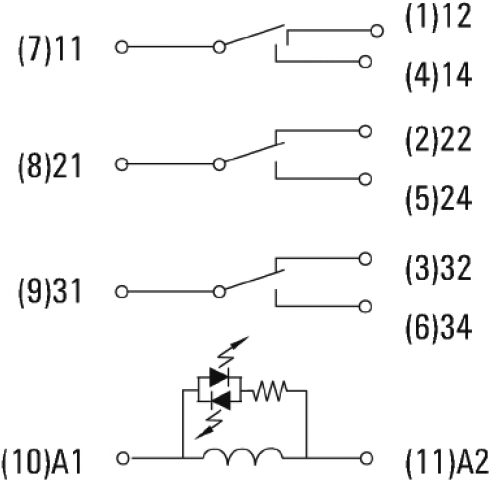

    Contacts configuration 3PDT
    DC contacts rating @R 16A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 16A / 400V AC
    Contact current max. 16A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.5W
