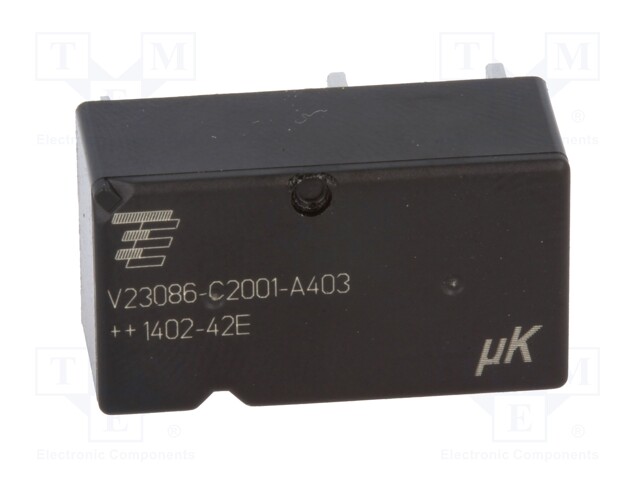

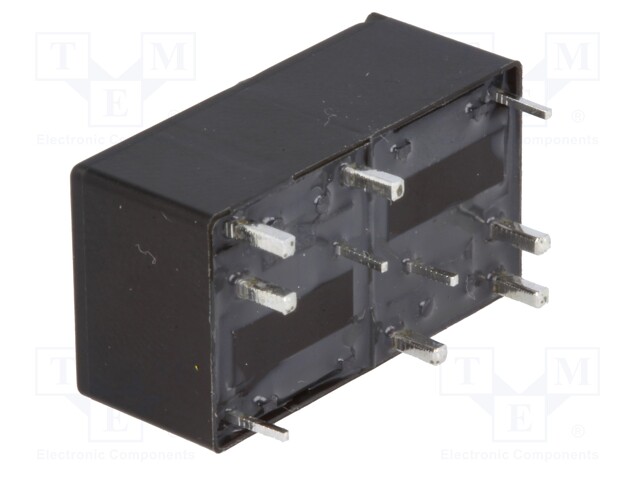

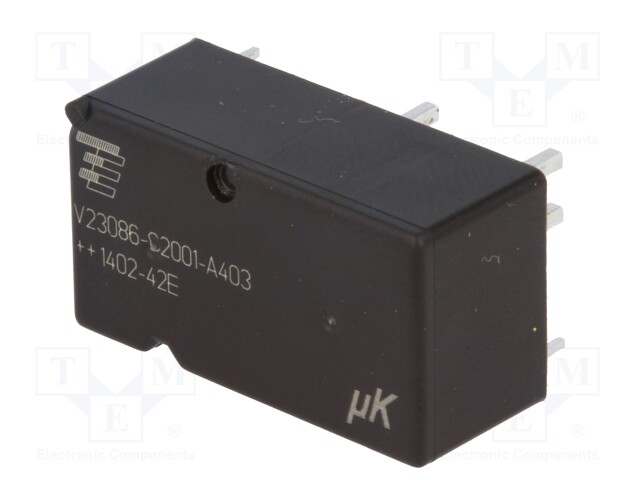

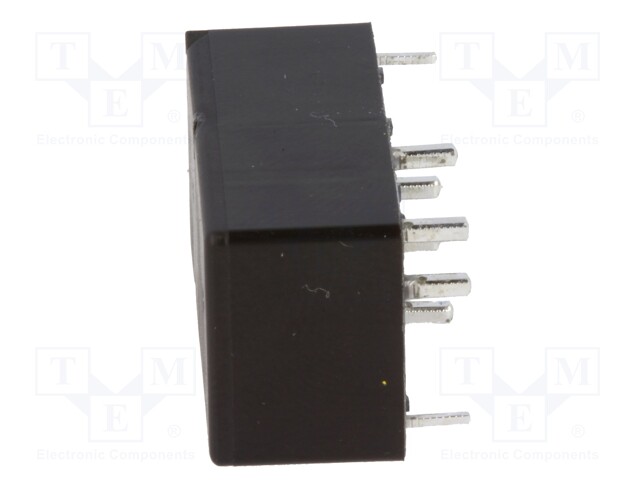

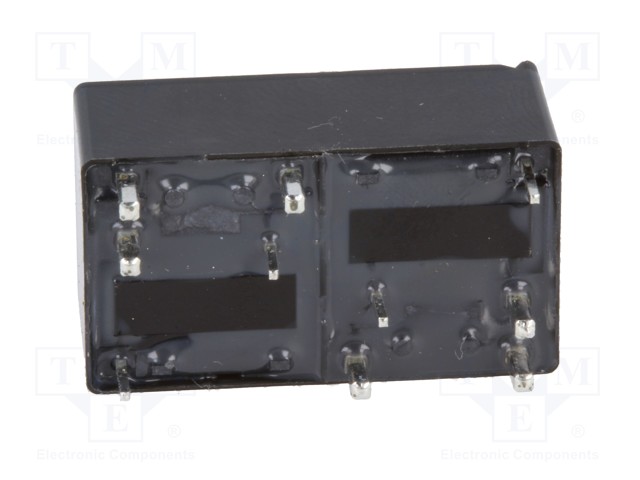

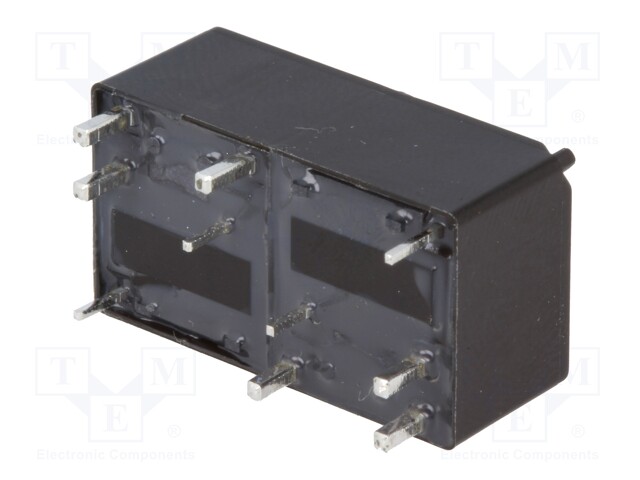

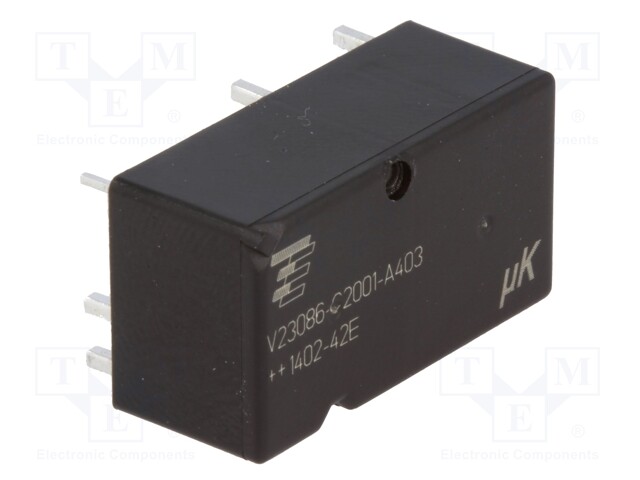

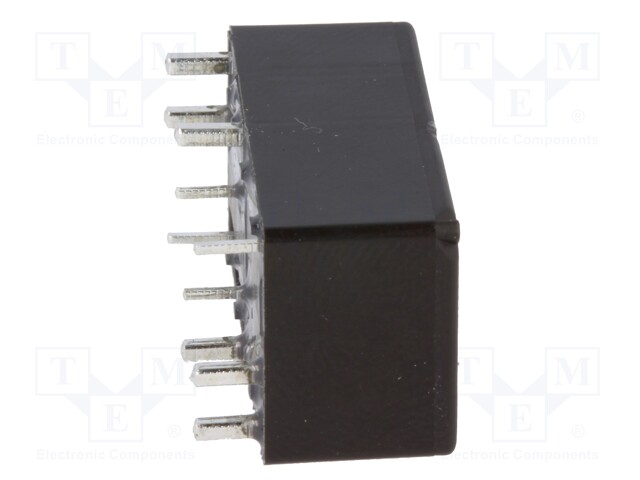

Relay: electromagnetic; SPDT x2; Ucoil: 12VDC; 25A; 254Ω; 567mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1413009-9
    Tootja: TE Connectivity
    Tootja tootekood: 1413009-9
    • Mounting
    • Operating temperature
    • Contact material
    • Height
    • Body dimensions
    • Mechanical durability
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    7,22 € 7,22 € (KM-TA) 7.22 EUR

    7,22 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT x2; Ucoil: 12VDC; 25A; 254Ω; 567mW

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Height 10.2mm

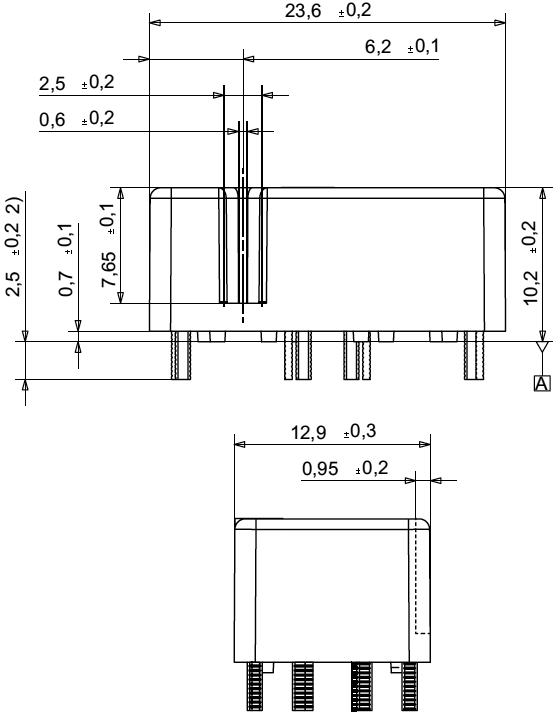

    Body dimensions 23.6x12.9x10.2mm
    Mechanical durability 5000000cycles
    Coil resistance 254Ω
    Rated coil voltage 12V DC

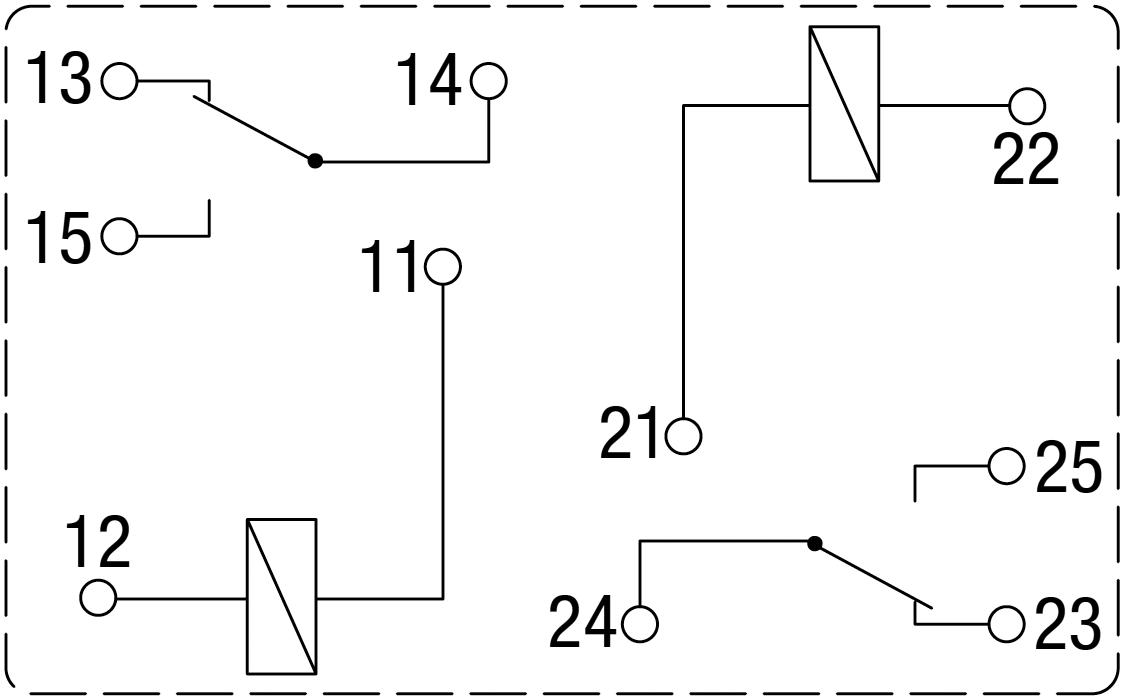

    Contacts configuration SPDT x2
    Contact current max. 25A
    Relay variant automotive, double
    Type of relay electromagnetic
    Coil voltage min. 6.9V DC
    Coil power consumption 567mW
    Coil current 47.2mA
