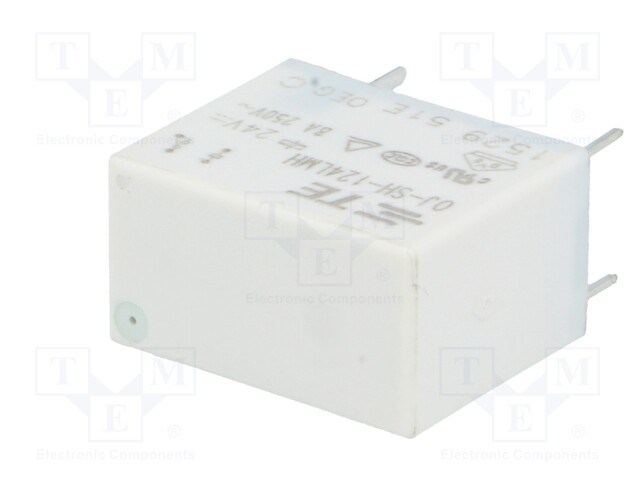

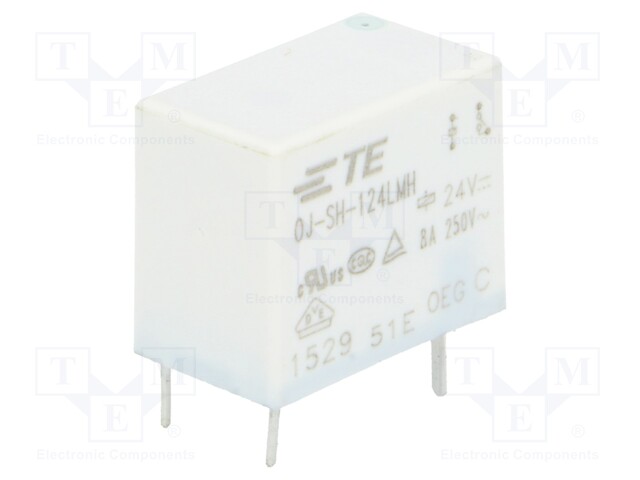

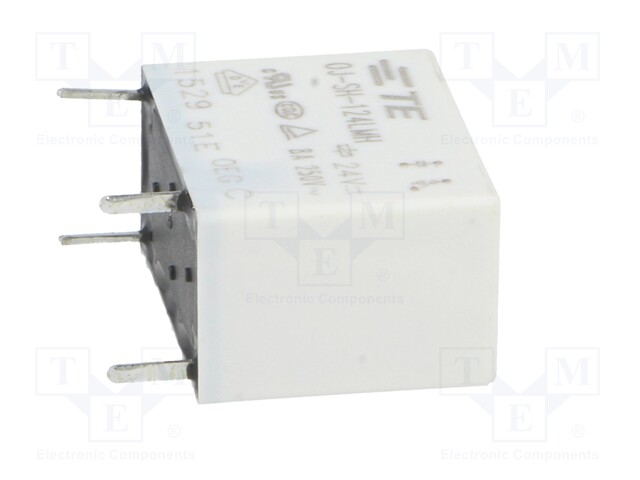

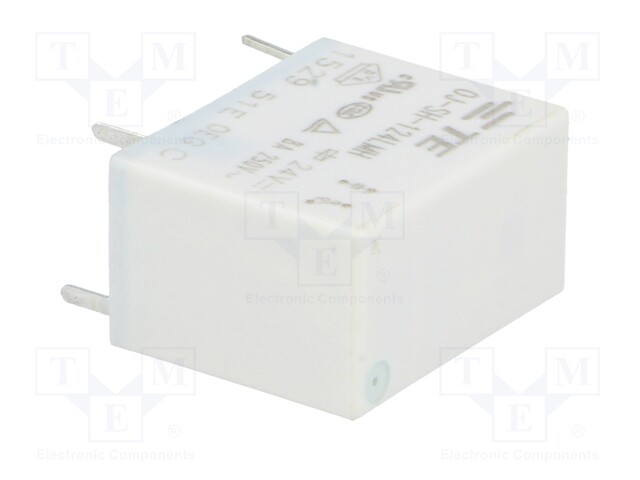

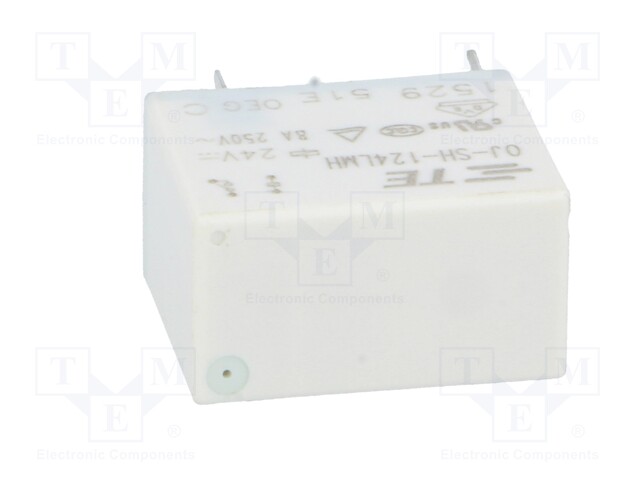

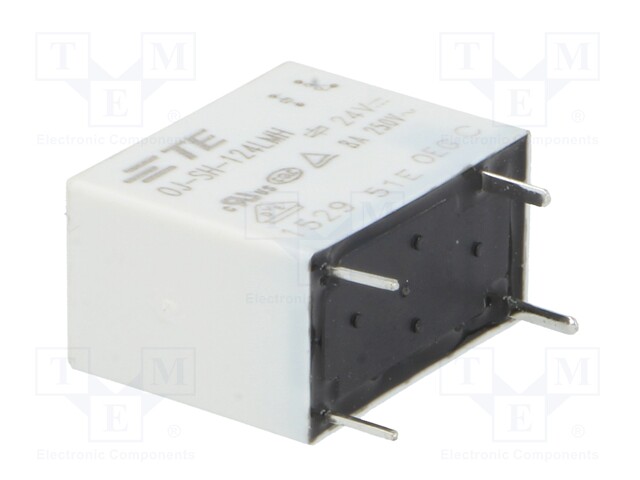

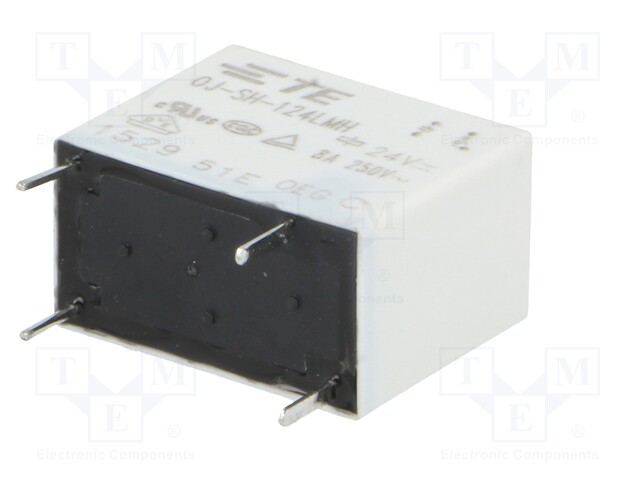

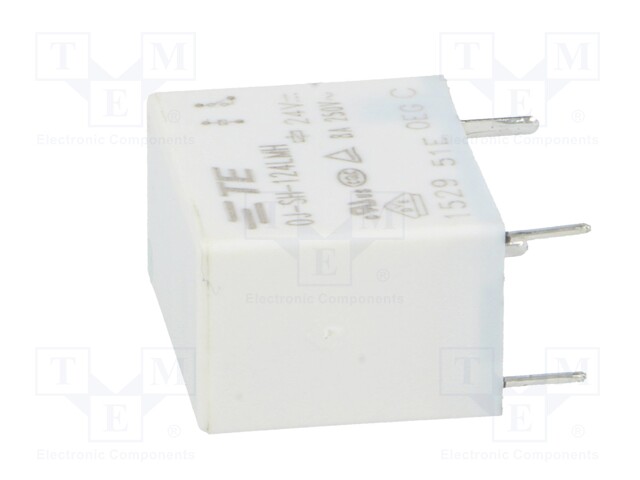

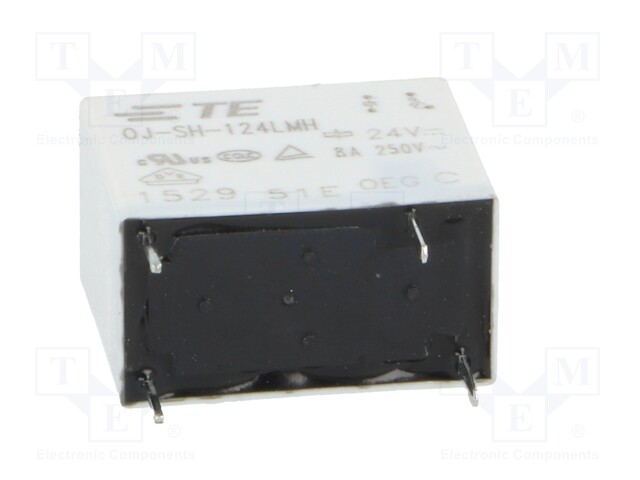

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1461247-3
    Tootja: TE Connectivity
    Tootja tootekood: 1461247-3
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Operate time
    • Release time
    • Coil current

    1,80 € 1,80 € (KM-TA) 1.8 EUR

    1,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -30...70°C
    Contact material AgCdO

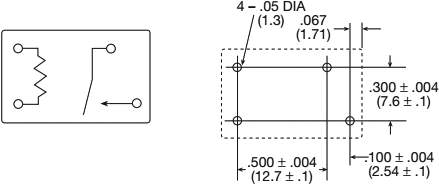

    Terminal pitch 2.54mm
    Height 14.7mm

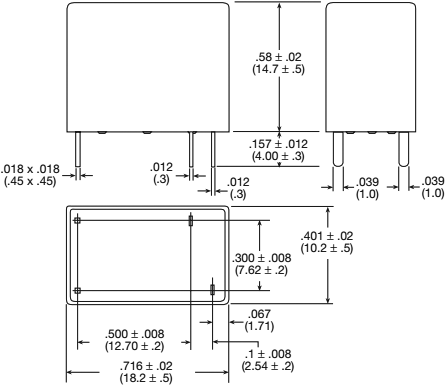

    Body dimensions 18.2x14.7x10.2mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Operate time 15ms
    Release time 4ms
    Coil current 8.33mA
