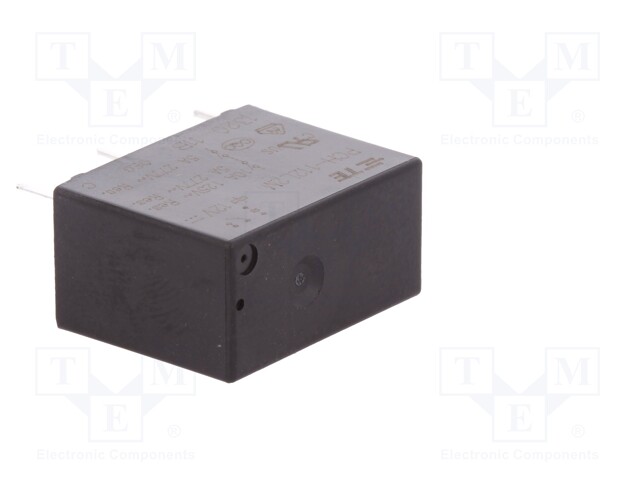

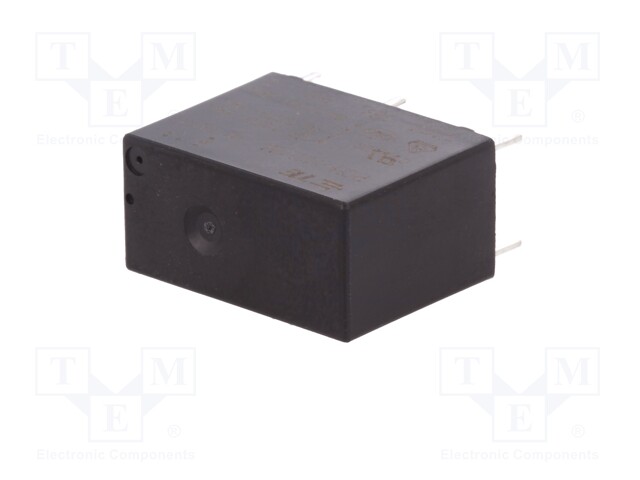

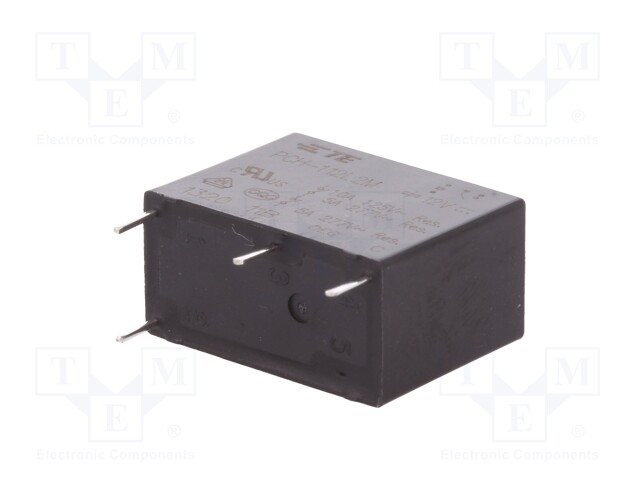

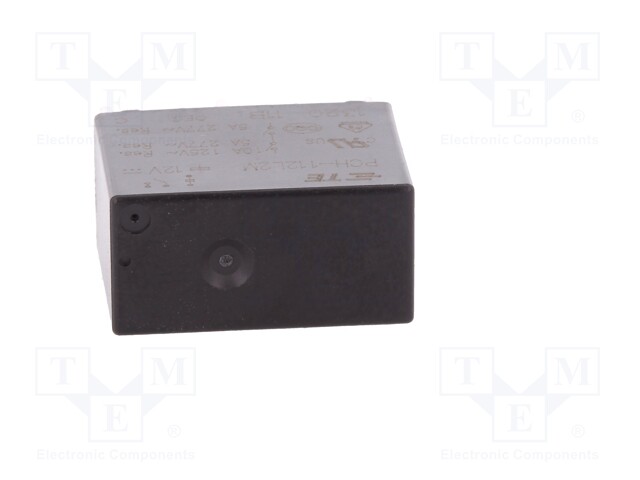

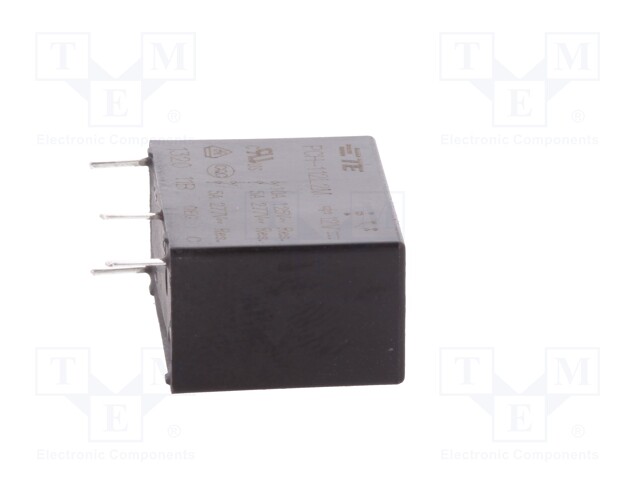

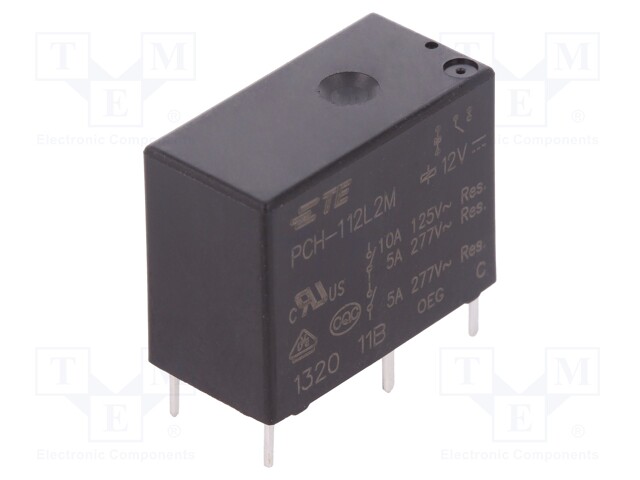

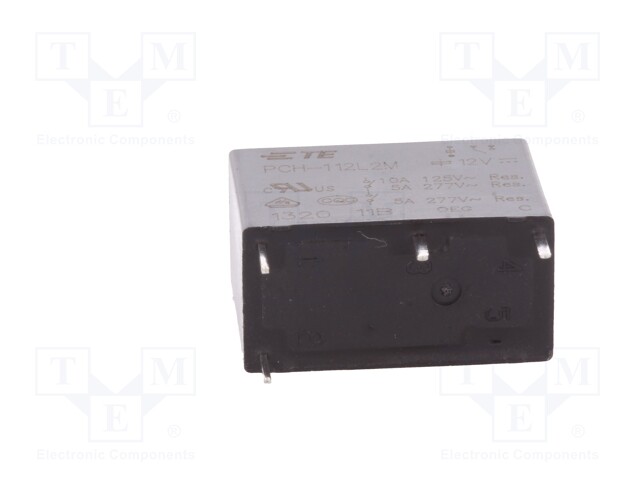

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/277VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1461352-5
    Tootja: TE Connectivity
    Tootja tootekood: 1461352-5
    • Mounting
    • Operating temperature
    • Series
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    2,67 € 2,67 € (KM-TA) 2.67 EUR

    2,67 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/277VAC; 5A/30VDC

    Mounting THT
    Operating temperature -40...85°C
    Series PCH
    Contact material AgSnO<sub>2</sub>

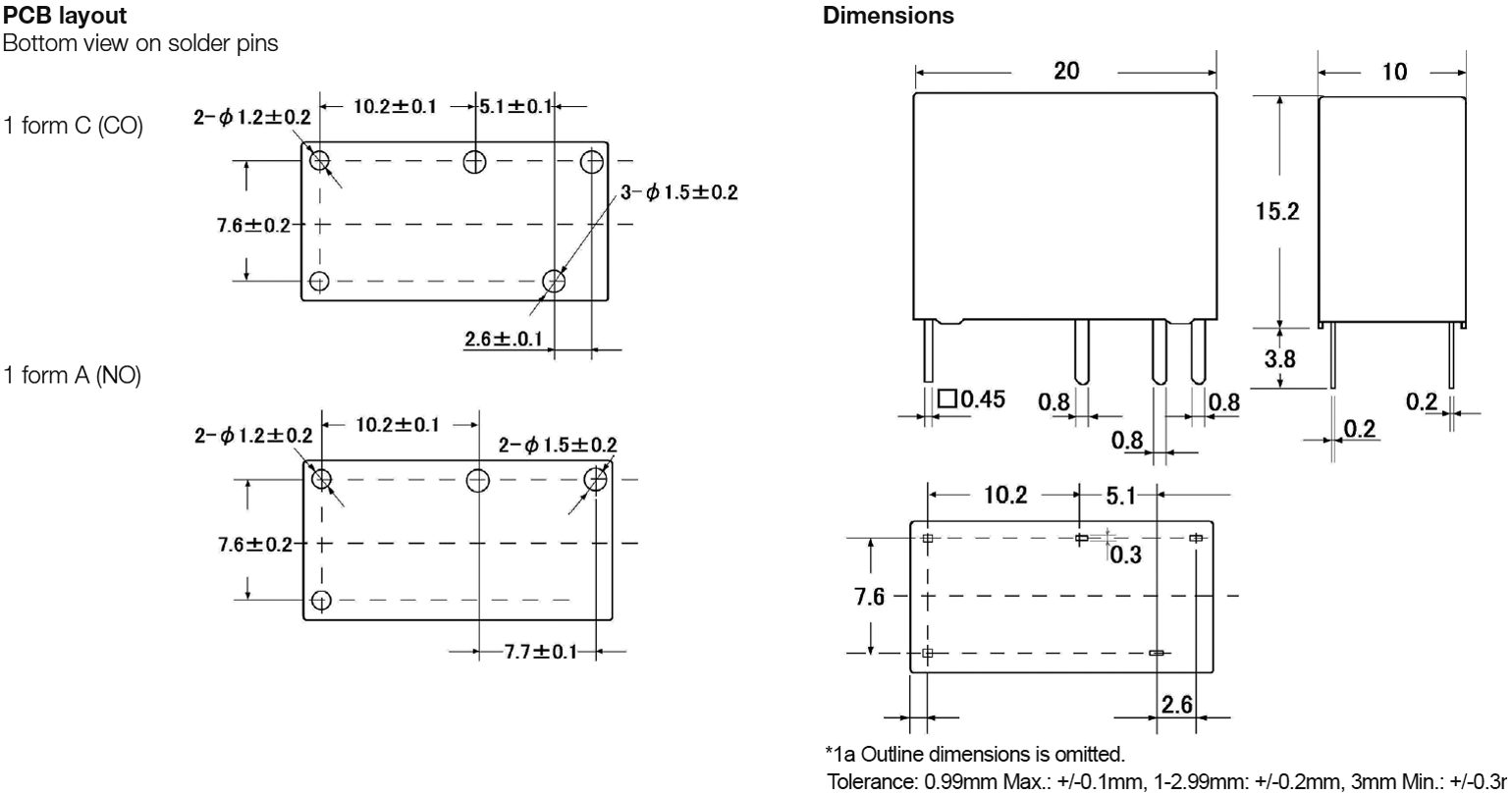

    Body dimensions 20x15.2x10mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC

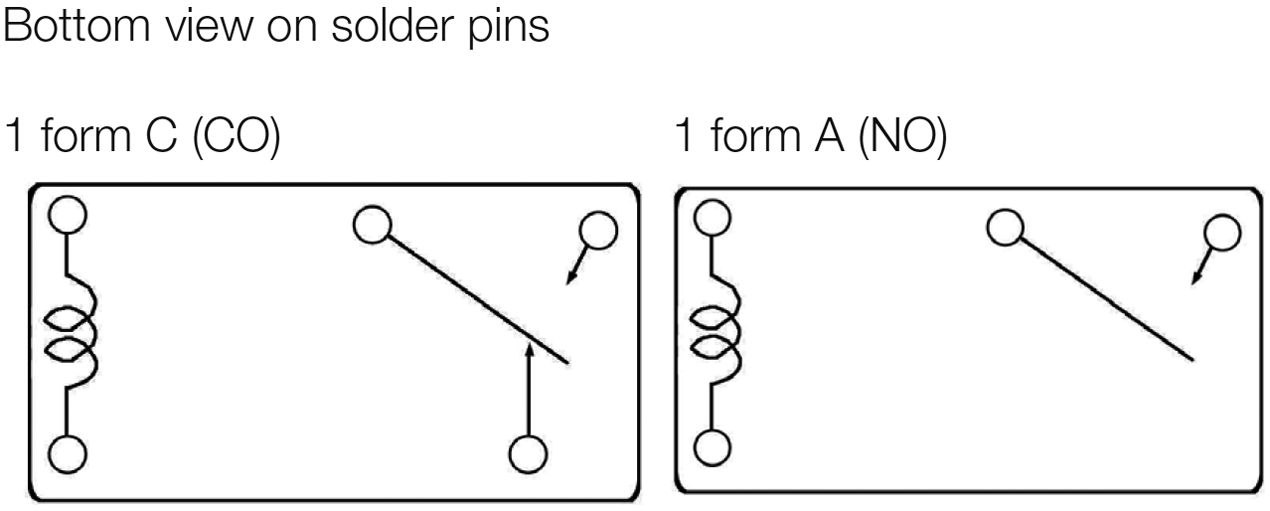

    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 277V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 200mW
    Operate time 10ms
    Release time 5ms
    Coil current 16.5mA
