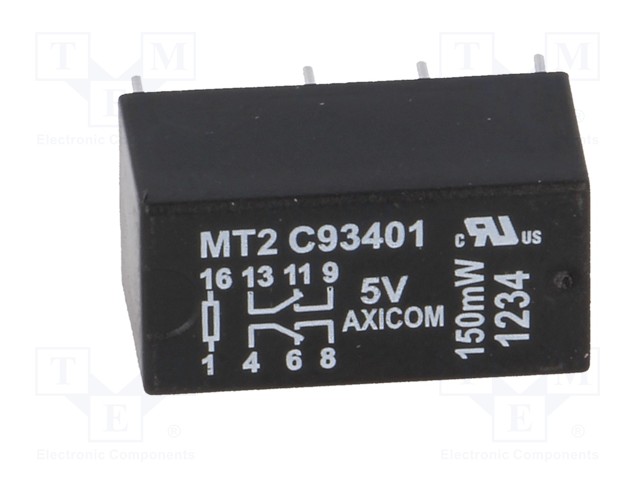

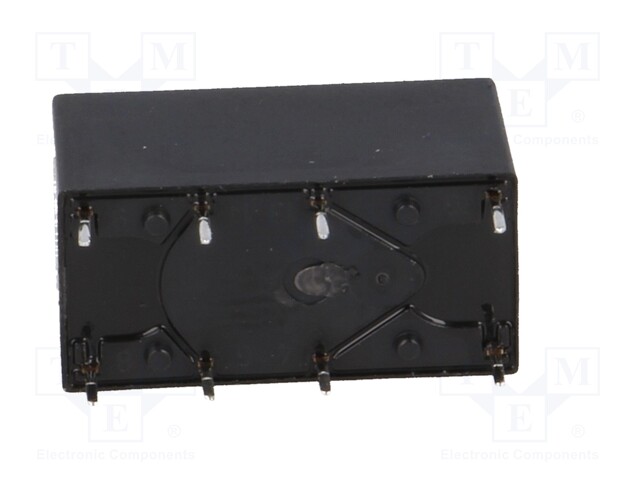

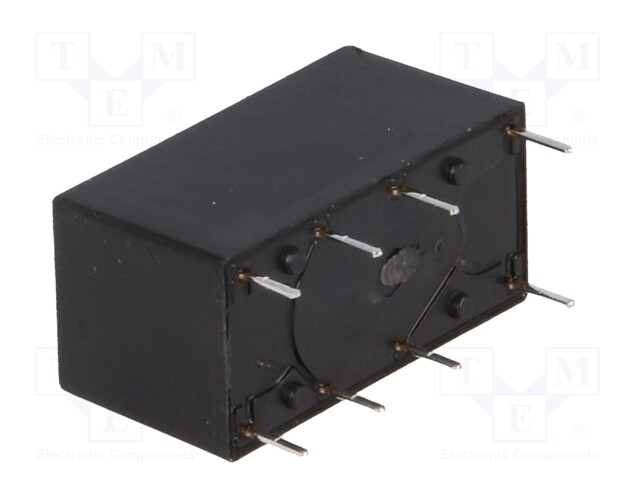

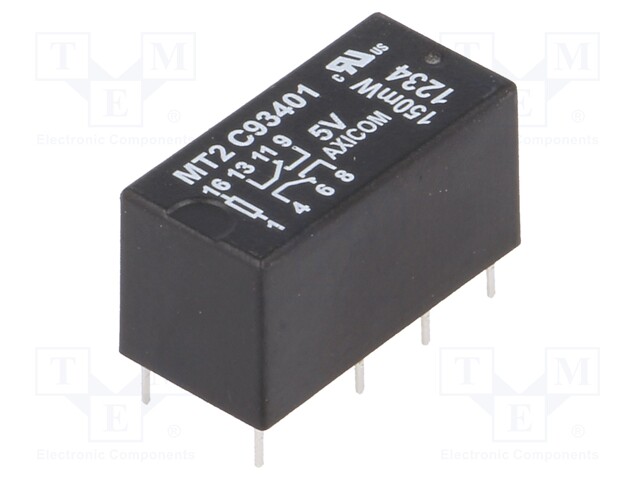

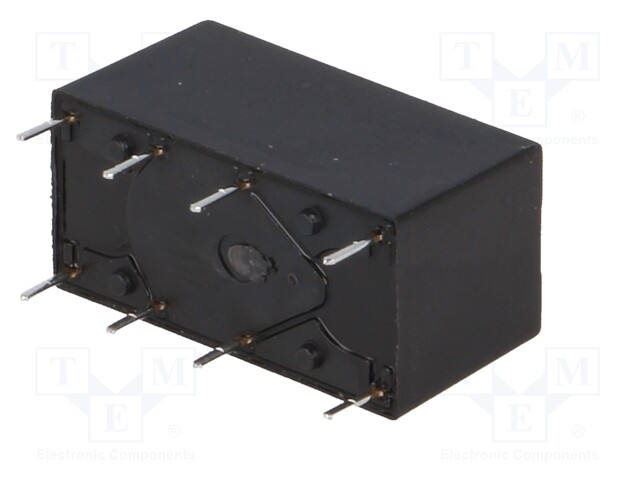

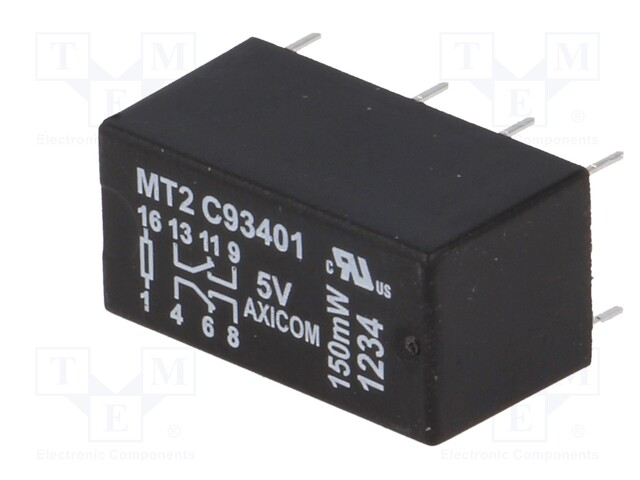

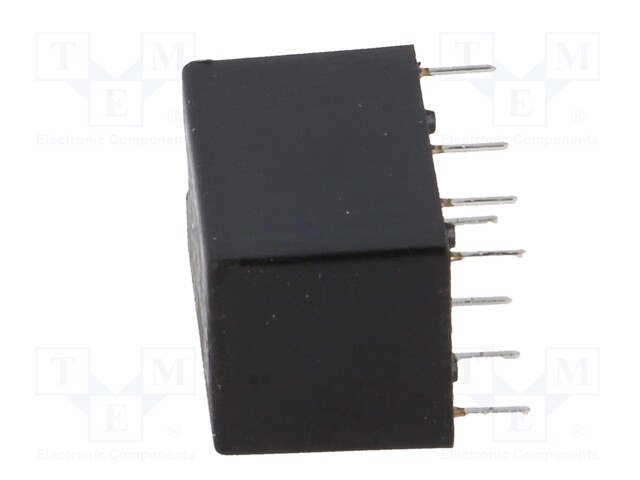

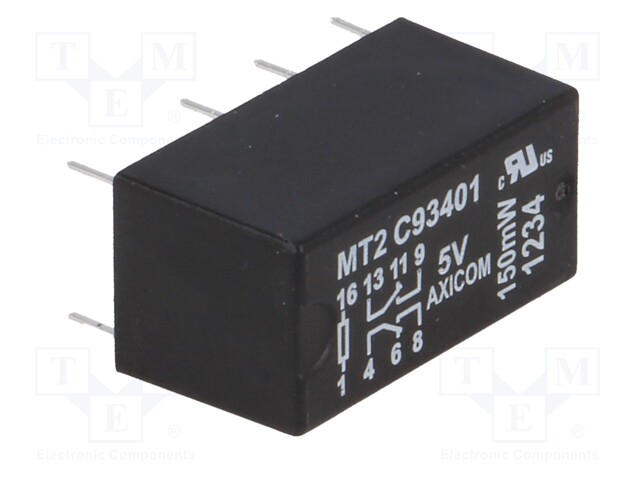

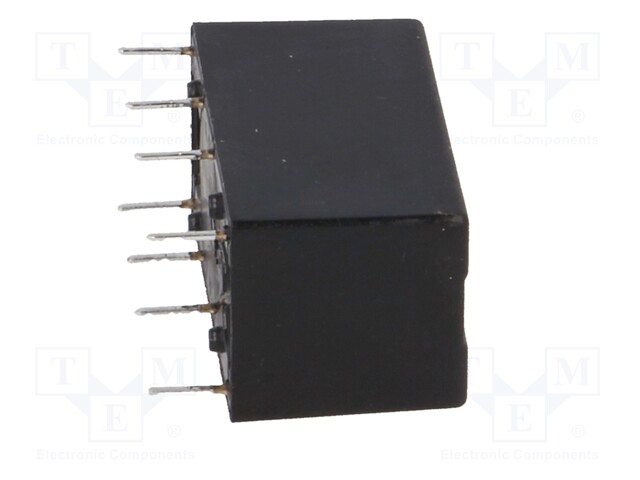

Relay: electromagnetic; DPDT; Ucoil: 5VDC; max.250VAC; max.220VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1462000-1
    Tootja: TE Connectivity
    Tootja tootekood: 1462000-1
    • Mounting
    • Operating temperature
    • IP rating
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Switched current
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    7,59 € 7,59 € (KM-TA) 7.59 EUR

    7,59 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 5VDC; max.250VAC; max.220VDC

    Mounting PCB
    Operating temperature -55...85°C
    IP rating IP67
    Body dimensions 20.2x10x11mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Coil resistance 168Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    Contact resistance 70mΩ
    AC contacts rating @R 2A / 250V AC
    Switched current 2A
    Contact current max. 2A
    Relay variant signal
    Coil voltage max. 13.5V DC
    Type of relay electromagnetic
    Coil voltage min. 3.6V DC
    Coil power consumption 150mW
