Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM

    Kordarv: 2000.0
    Minimum quantity: 2000.0
    Tootekood: 1462039-6
    Tootja: TE Connectivity
    Tootja tootekood: 1462039-6
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    3,99 € 3,99 € (KM-TA) 3.99 EUR

    3,99 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM

    Mounting SMT
    Operating temperature -40...85°C
    IP rating IP67
    Contact material PdRu + Au
    Terminal pitch 2.2mm

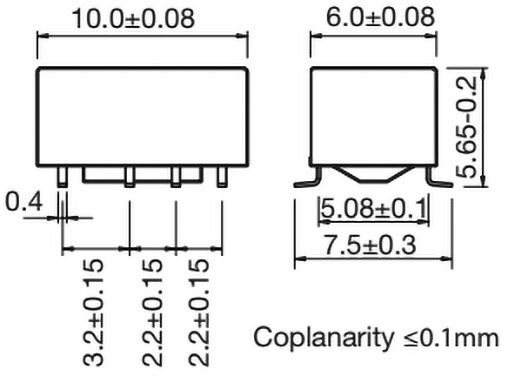

    Body dimensions 10x6x5.65mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Switching capacity 60W, 62.5VA
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 140mW
