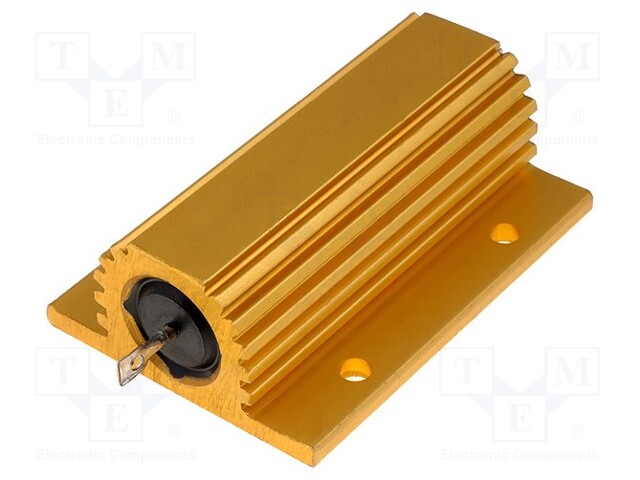

Resistor: wire-wound; with heatsink; screw; 10Ω; 100W; ±5%

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1625999-3
    Tootja: TE Connectivity
    Tootja tootekood: 1625999-3
    • Mounting
    • Resistance
    • Type of resistor
    • Operating temperature
    • Tolerance
    • Leads
    • Body dimensions
    • Mounting holes pitch
    • Temperature coefficient
    • Resistor features
    • Kind of resistor
    • Number of mounting holes
    • Power without heatsink
    • Recommended heatsink
    • Recommended heatsink

    15,16 € 15,16 € (KM-TA) 15.16 EUR

    15,16 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Resistor: wire-wound; with heatsink; screw; 10Ω; 100W; ±5%

    Mounting screw
    Resistance 10Ω
    Type of resistor wire-wound
    Operating temperature -55...250°C
    Tolerance ±5%
    Leads for soldering

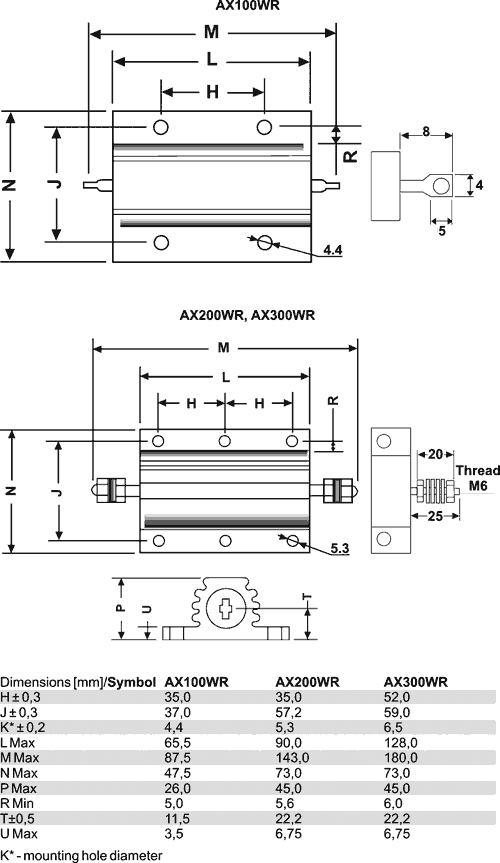

    Body dimensions 65.5x47.5x26mm
    Mounting holes pitch 37x35mm
    Temperature coefficient 50ppm/°C
    Resistor features needs additional heatsink
    Kind of resistor with heatsink
    Number of mounting holes 4
    Power without heatsink 50W
    Recommended heatsink 99500mm<sup>2</sup> surface area, thickness 3mm
