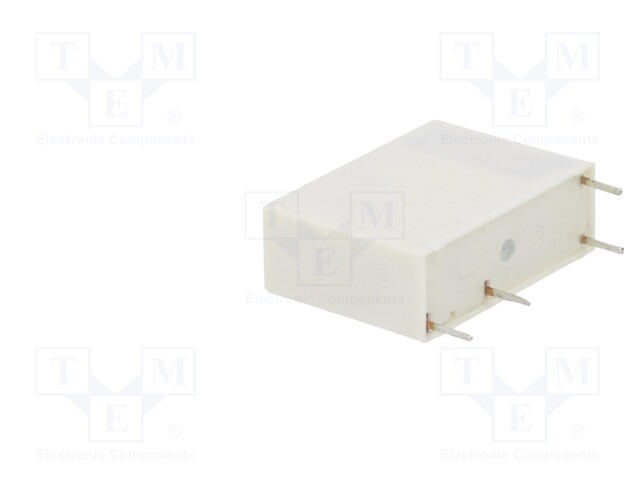

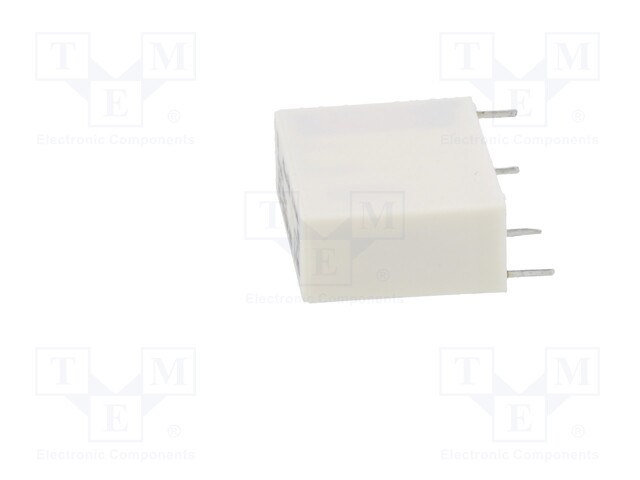

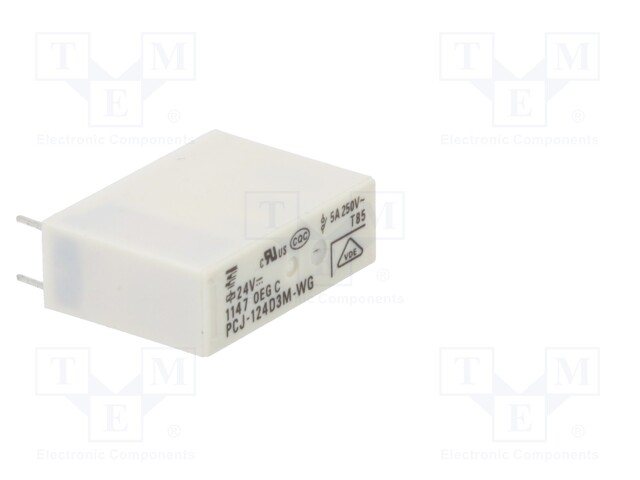

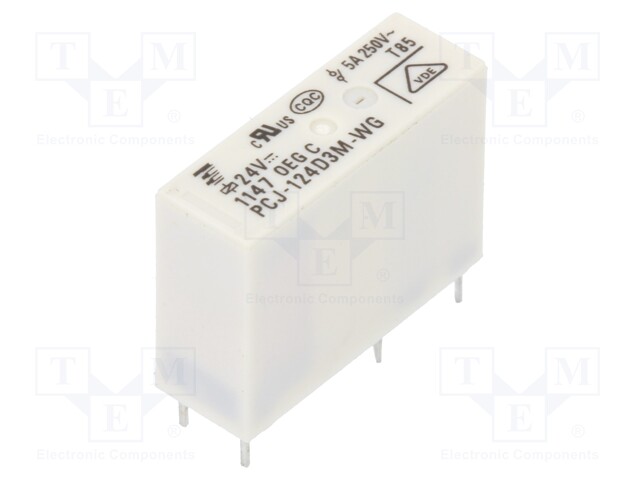

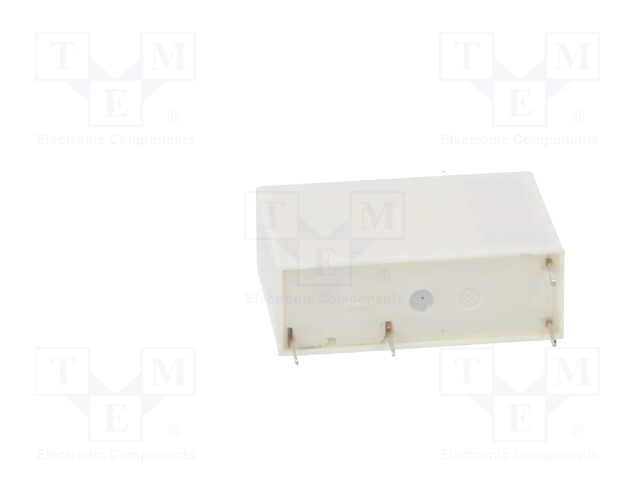

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A; 200mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1721547-7
    Tootja: TE Connectivity
    Tootja tootekood: 1721547-7
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    3,75 € 3,75 € (KM-TA) 3.75 EUR

    3,75 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A; 200mW

    Mounting THT
    Operating temperature -40...105°C
    Contact material AgNi
    Terminal pitch 7mm
    Body dimensions 20.4x15x7mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 200mW
    Operate time 10ms
    Release time 4ms
