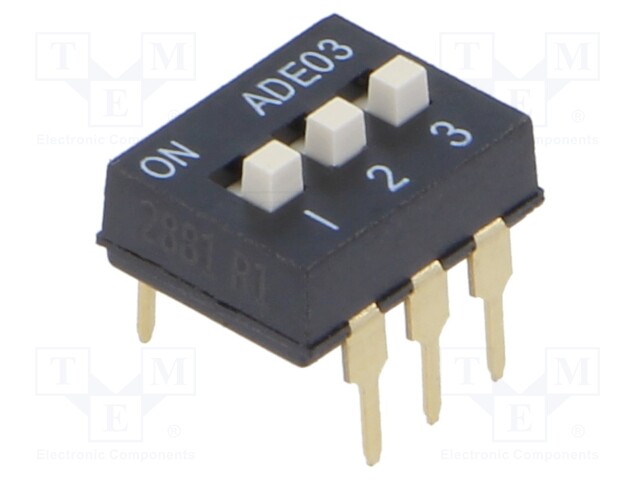

DIP / SIP Switch, 3 Circuits, Slide, Through Hole, SPST, 24 V, 100 mA

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1825057-2
    Tootja: TE Connectivity
    Tootja tootekood: 1825057-2
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Terminal pitch
    • Flammability rating
    • Body colour
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number

    1,50 € 1,50 € (KM-TA) 1.5 EUR

    1,50 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele DIP / SIP Switch, 3 Circuits, Slide, Through Hole, SPST, 24 V, 100 mA

    Mounting THT
    Operating temperature -30...85°C
    Type of switch DIP-SWITCH
    Contact plating gold-plated
    Number of positions 2
    Leads for soldering
    Contact material copper alloy
    Max. contact resistance 50mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Body colour black
    Illumination none
    Min. insulation resistance 1GΩ
    Electrical life 1000cycles
    Poles number 3
    Contacts configuration SPST
    DC contacts rating @R 100mA / 24V DC
    Switching method OFF-ON
    Stable positions number 2
