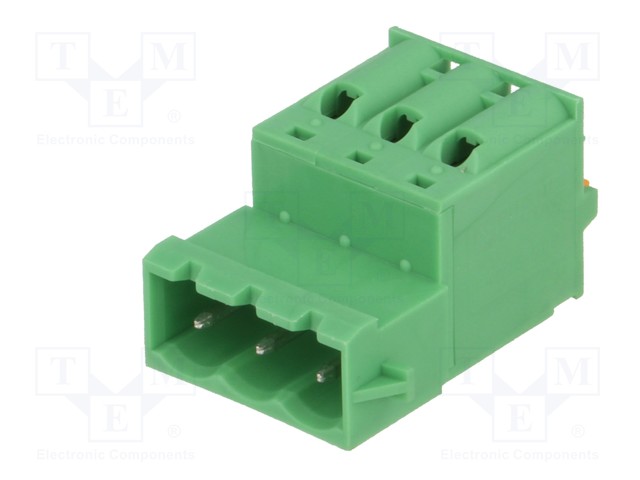

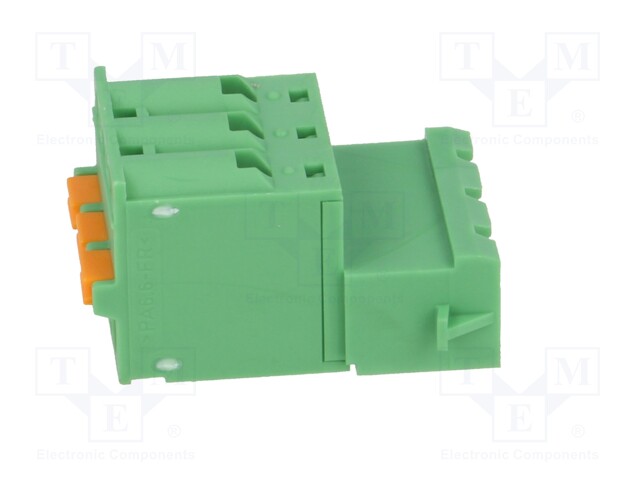

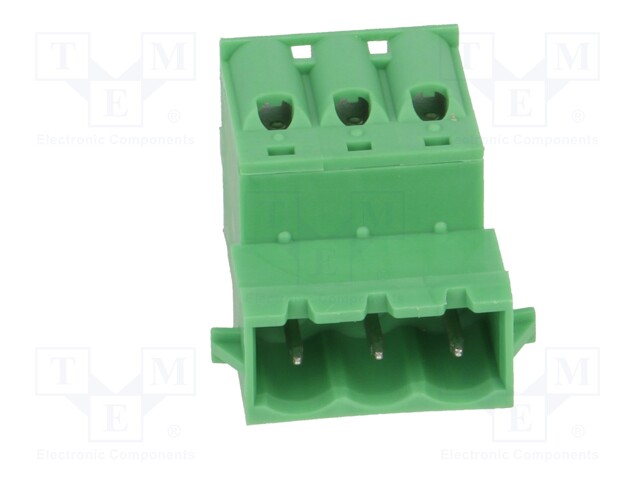

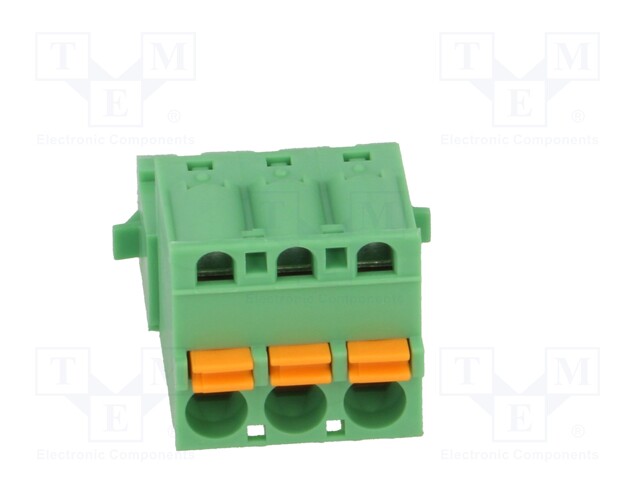

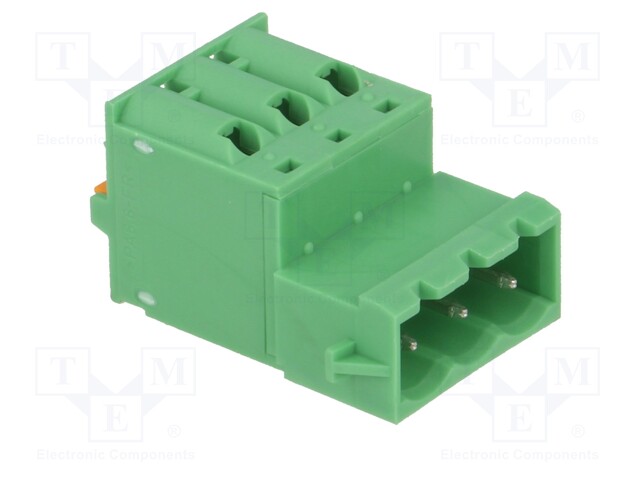

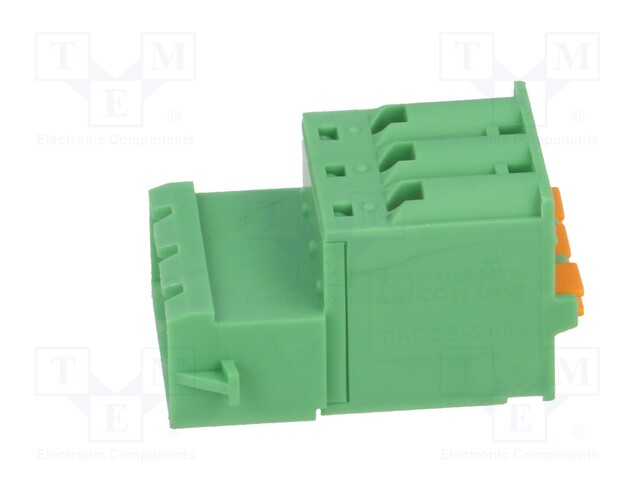

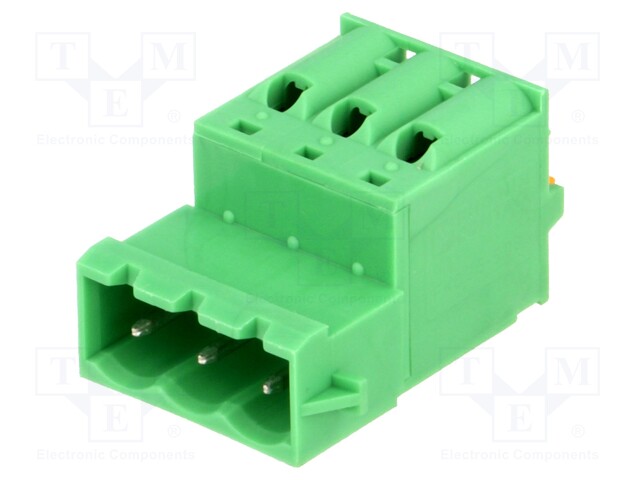

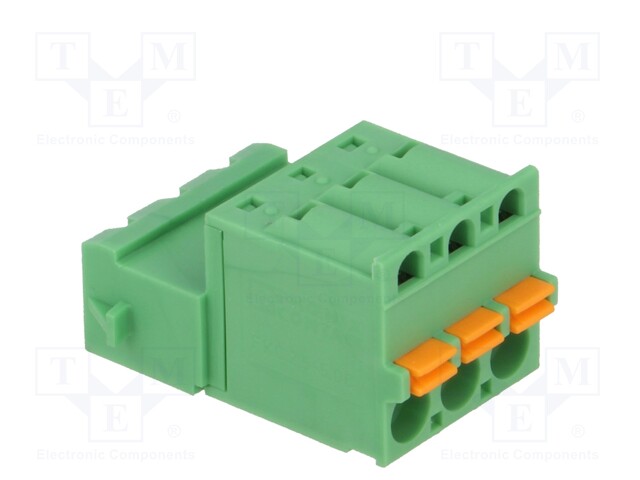

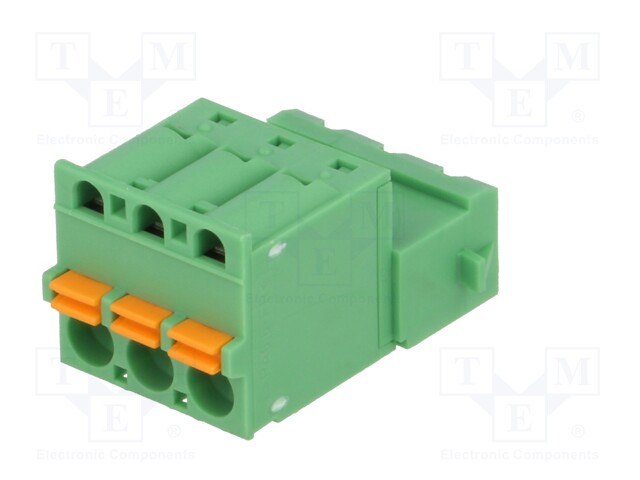

Pluggable terminal block; Contacts ph: 5.08mm; ways: 3; straight

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1925870-1
    Tootja: PHOENIX CONTACT
    Tootja tootekood: 1925870
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Body material
    • Flammability rating
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Number of terminals
    • Locking system
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Stripped wire length

    4,82 € 4,82 € (KM-TA) 4.82 EUR

    4,82 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Pluggable terminal block; Contacts ph: 5.08mm; ways: 3; straight

    Operating temperature -40...105°C
    Contacts pitch 5.08mm
    Electrical mounting spring clamp
    Connector plug
    Kind of connector male
    Mechanical mounting for cable
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Body material polyamide
    Flammability rating UL94V-0
    Current rating 12A
    Number of ways 3
    Type of pin configuration 1x3
    Number of terminals 3
    Locking system latch
    Connector variant with push button
    Conform to the norm CSA, UL, VDE
    Spatial orientation straight
    Stripped wire length 10mm
