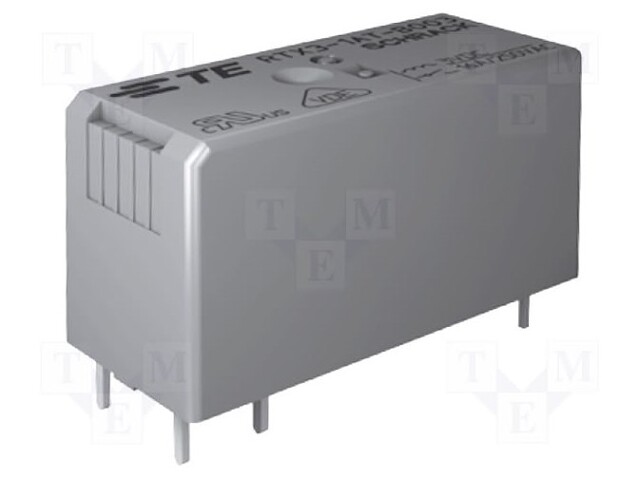

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; 38Ω; 320A

    Kordarv: 500.0
    Minimum quantity: 500.0
    Tootekood: 1937650-2
    Tootja: TE Connectivity
    Tootja tootekood: 1937650-2
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    14,33 € 14,33 € (KM-TA) 14.33 EUR

    14,33 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; 38Ω; 320A

    Mounting PCB
    Operating temperature -40...70°C
    Contact material W + AgSnO<sub>2</sub>
    Terminal pitch 2.52mm
    Body dimensions 29.1x16x12.7mm
    Mechanical durability 100000cycles
    Switched voltage ≤ 250V AC
    Max surge current 320A
    Coil resistance 38Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant bistable, inrush, miniature
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 650mW
