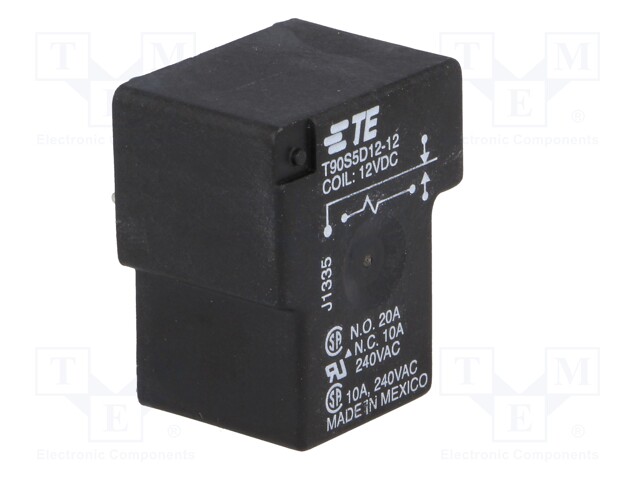

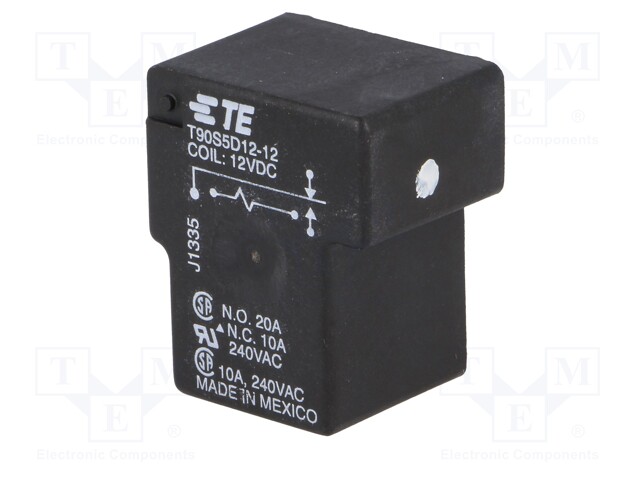

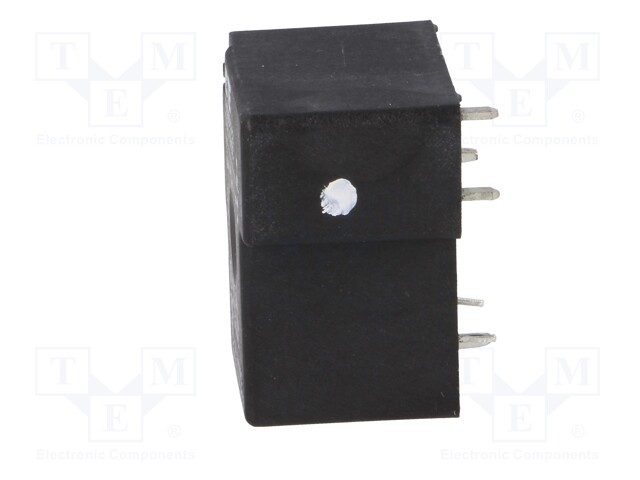

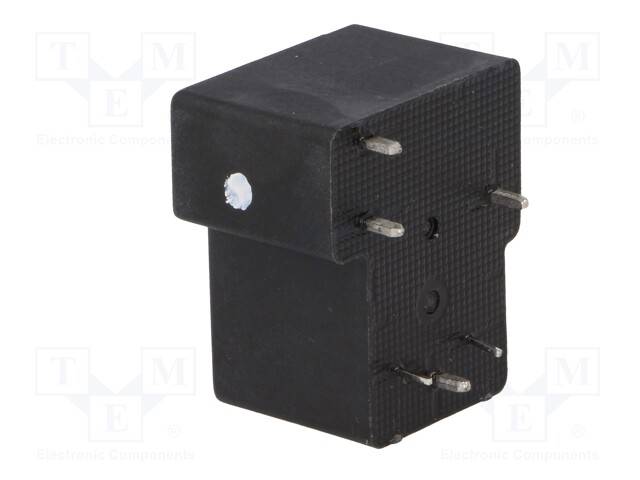

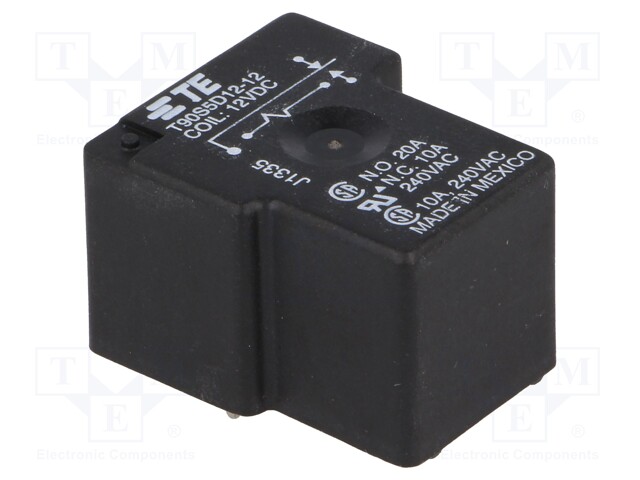

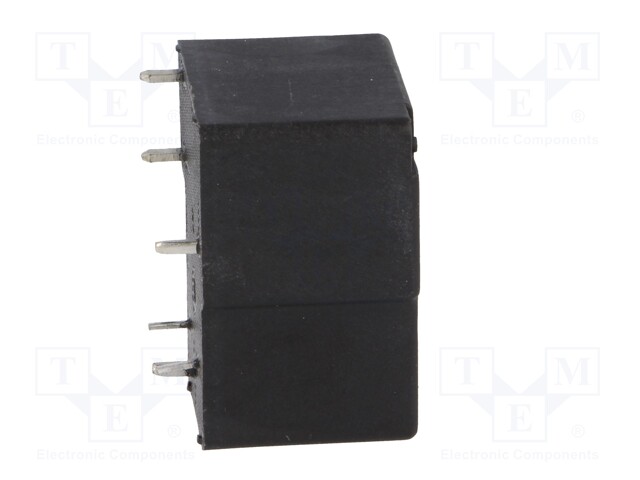

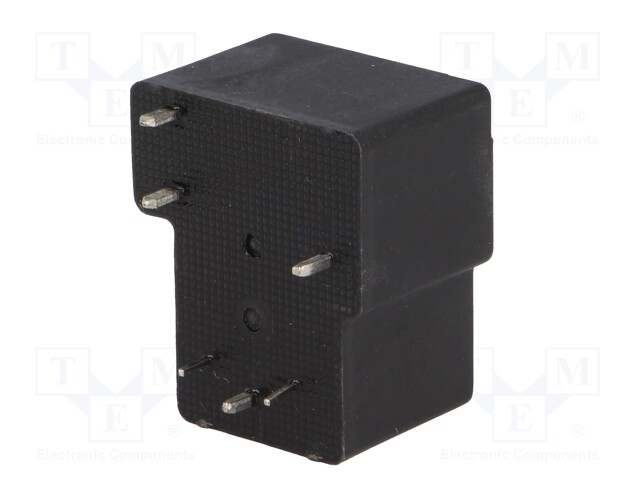

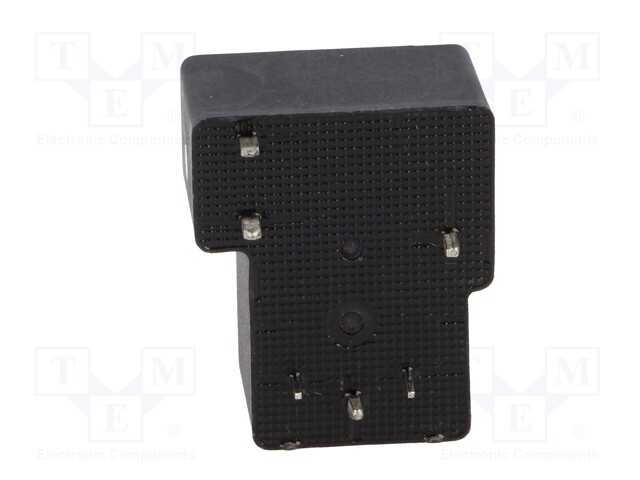

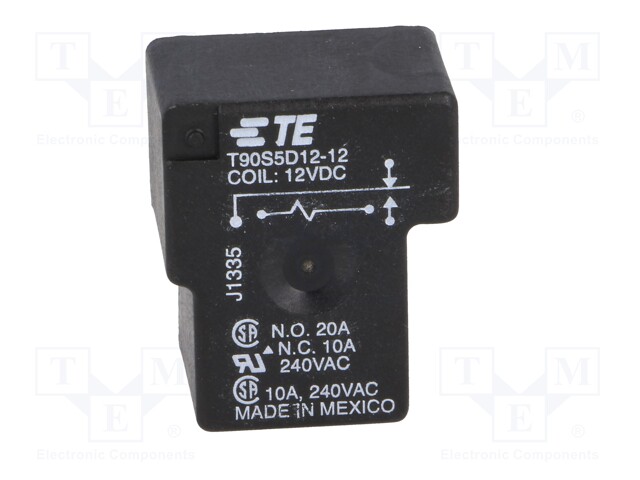

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 20A; Ucoil min: 9VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2-1393209-8
    Tootja: TE Connectivity
    Tootja tootekood: 2-1393209-8
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 20A; Ucoil min: 9VDC

    Mounting PCB
    Operating temperature -55...85°C
    Leads for PCB
    Contact material AgCdO

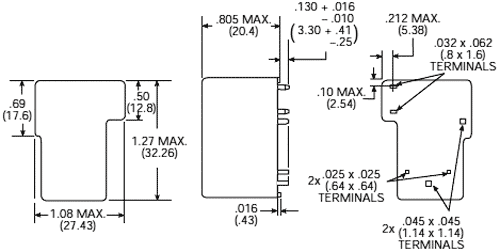

    Body dimensions 30.5x24.1x16.9mm
    Mechanical durability 10000000cycles
    Coil resistance 155Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    Contact resistance 75mΩ
    Contact current max. 20A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 930mW
