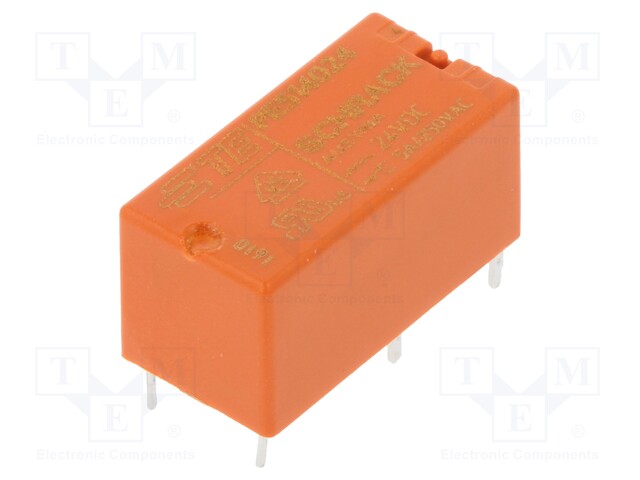

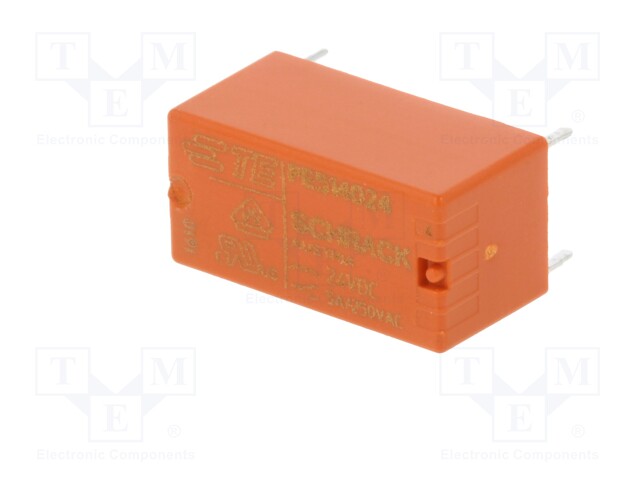

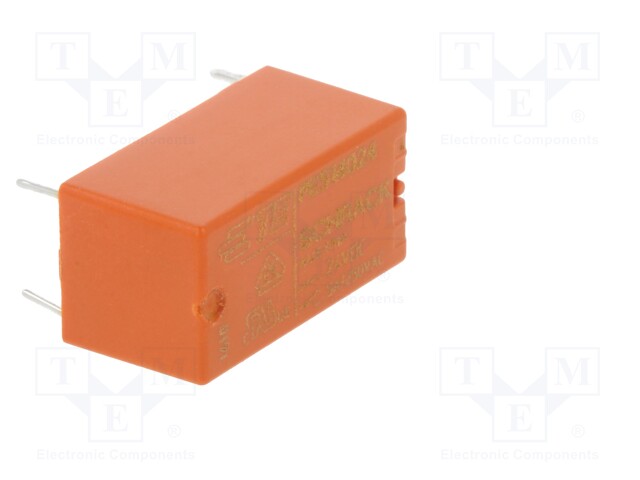

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2-1393219-2
    Tootja: TE Connectivity
    Tootja tootekood: 2-1393219-2
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    4,67 € 4,67 € (KM-TA) 4.67 EUR

    4,67 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi 90/10

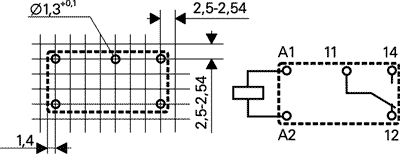

    Terminal pitch 7.62mm
    Body dimensions 20x10x10mm
    Mechanical durability 150000000cycles
    Switched voltage ≤ 300V DC, ≤ 440V AC
    Coil resistance 2.725kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Operate time 5ms
    Release time 2ms
    Coil current 8.8mA
