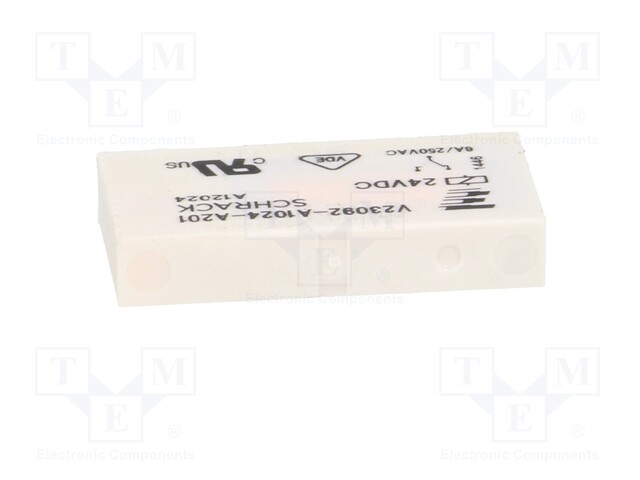

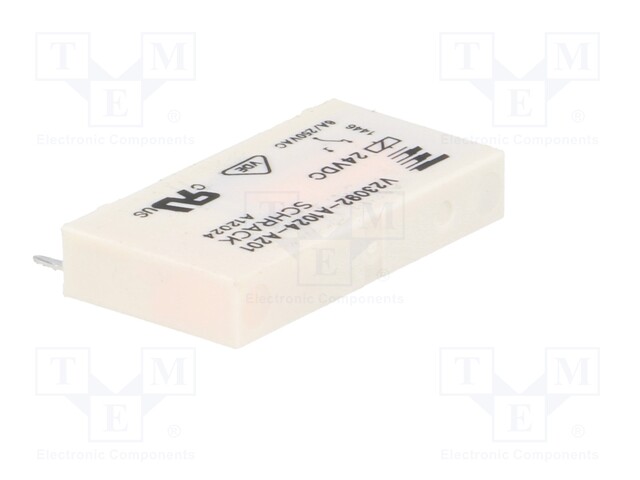

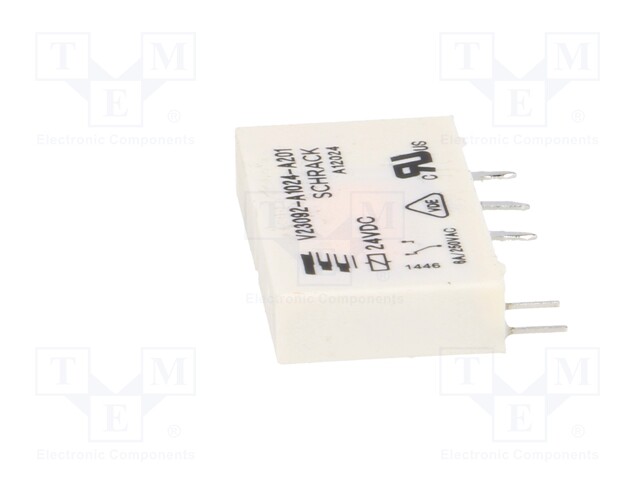

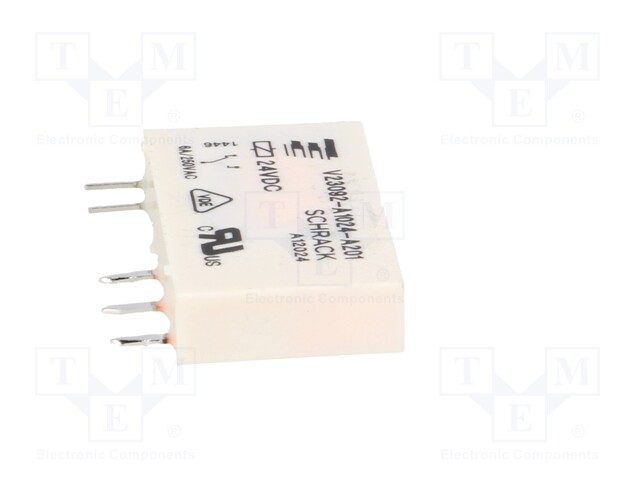

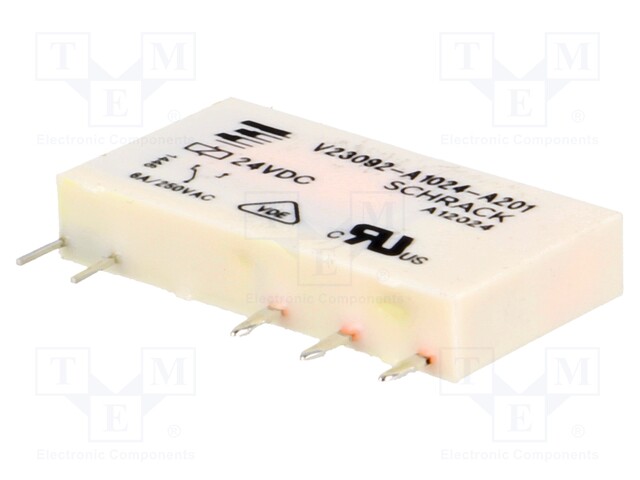

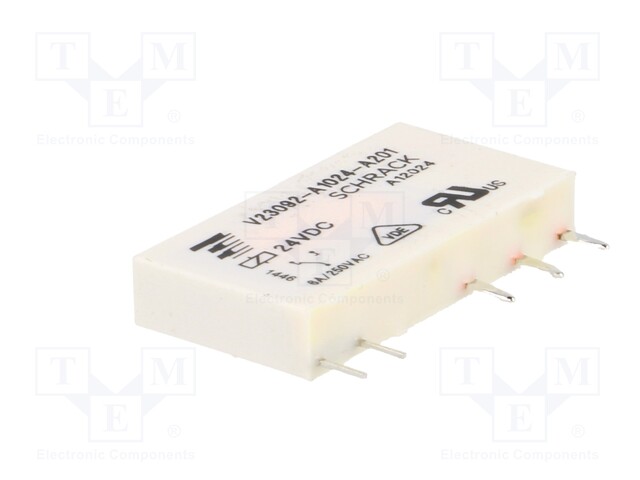

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2-1393236-1
    Tootja: TE Connectivity
    Tootja tootekood: 2-1393236-1
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    13,43 € 13,43 € (KM-TA) 13.43 EUR

    13,43 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgSnO<sub>2</sub> Au
    Terminal pitch 5mm

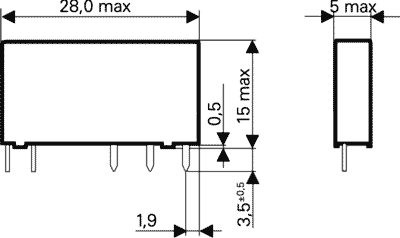

    Body dimensions 28x5x15mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 300V DC, ≤ 440V AC
    Coil resistance 3.39kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant interface
    Type of relay electromagnetic
    Coil power consumption 170mW
    Operate time 5ms
    Release time 2.5ms
    Coil current 7.1mA
