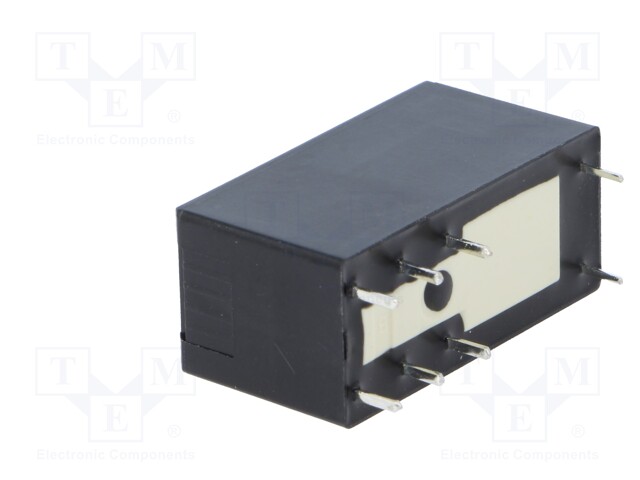

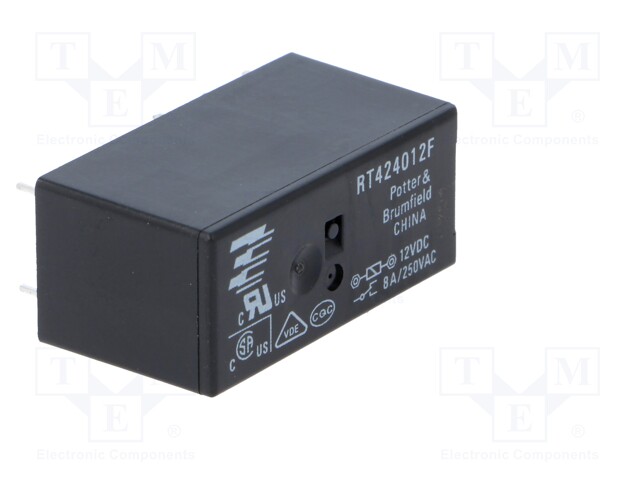

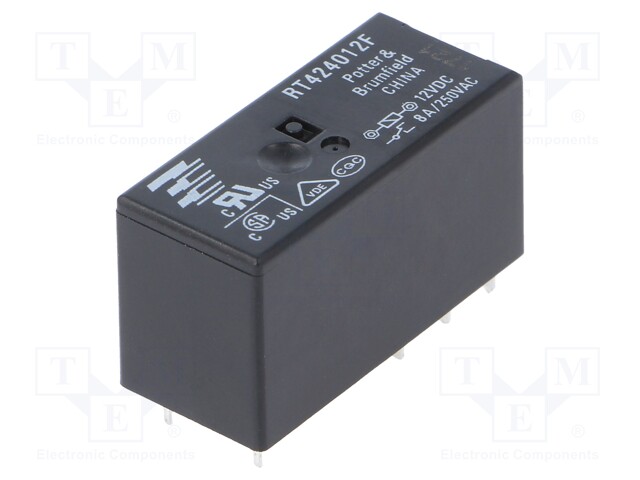

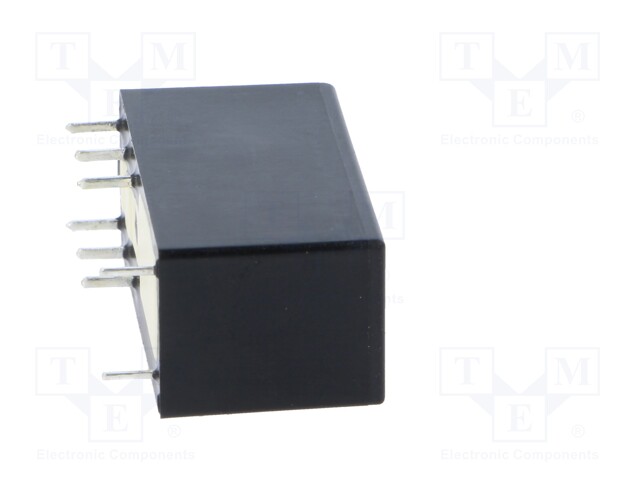

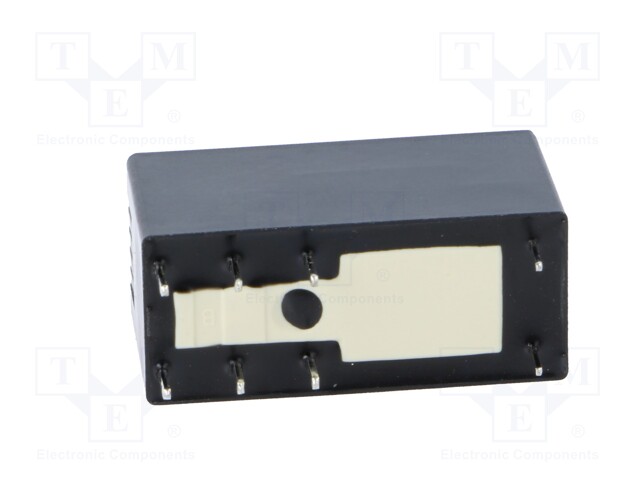

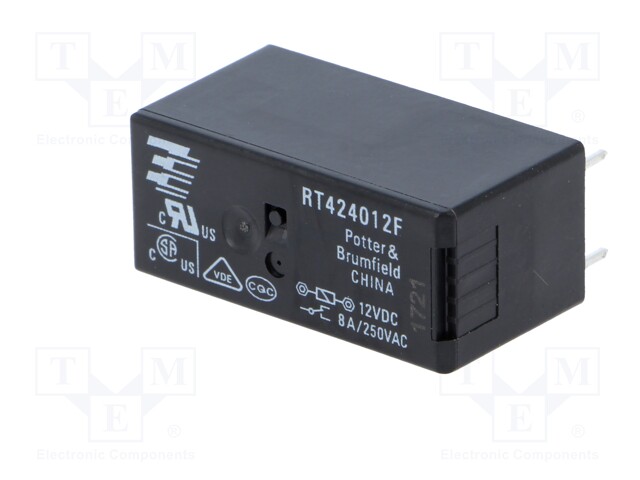

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC; 8A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2-1393237-8
    Tootja: TE Connectivity
    Tootja tootekood: 2-1393237-8
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    7,64 € 7,64 € (KM-TA) 7.640000000000001 EUR

    7,64 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP40
    Number of pins 8
    Contact material AgNi 90/10
    Terminal pitch 5mm
    Height 15.7mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature, monostable
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 400mW
    Operate time 8ms
    Release time 6ms
