Relay: PCB Power Relay; SPDT; 1CO; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC; 2.35kOhm, Hongfa

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 20009275
    Tootja: HONGFA RELAY
    Tootja tootekood: HF118F/024-1Z1
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1,90 € 1,90 € (KM-TA) 1.9000000000000001 EUR

    1,90 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: PCB Power Relay; SPDT; 1CO; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC; 2.35kOhm, Hongfa

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

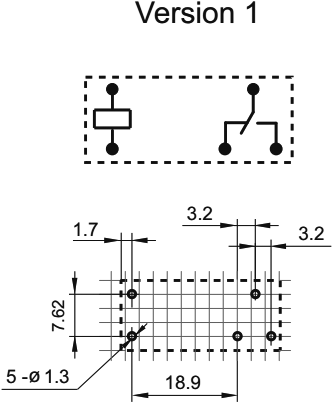

    Terminal pitch 3.2mm

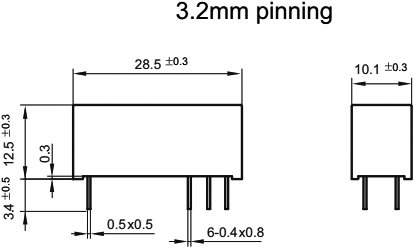

    Body dimensions 28.5x12.5x10.1mm
    Switched voltage ≤ 125V DC, ≤ 440V AC
    Coil resistance 2.35kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Coil voltage max. 36V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 220mW
