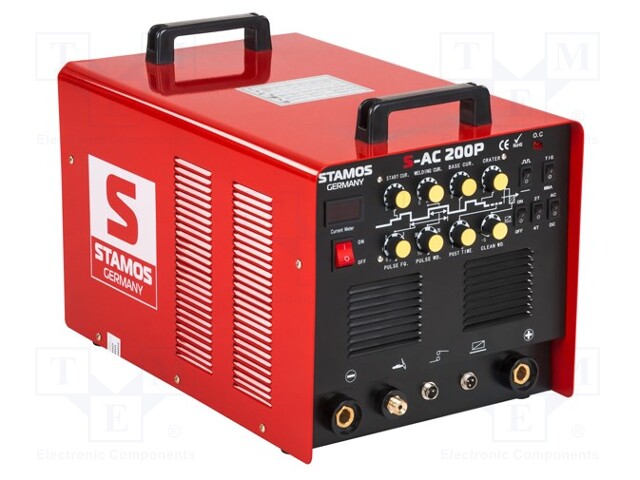

Inverter welder; 4.1kVA; 230VAC; 19A; 50/60Hz; MMA,TIG; IP21; 56V

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2094
    Tootja: STAMOS
    Tootja tootekood: 2094
    • Supply voltage
    • IP rating
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Power consumption
    • Kind of display used
    • Efficiency
    • Duty cycle factor
    • Insulation class
    • Input current
    • Supply voltage frequency
    • Power factor
    • Open circuit voltage
    • Electrode diameter (MMA)
    • Electrode diameter (TIG)
    • Welding method
    • Welding method
    • Welding current TIG-AC
    • Output current frequency in AC mode
    • Pulse current in PULSE mode
    • Gas flow time after welding
    • Pulse frequency DC mode
    • Welding current at 100% duty cycle
    • Welding current TIG-DC
    • Welding current MMA
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding current at 60% duty cycle
    • Balans prądu AC
    • Nominal duty cycle
    • Method of cooling the handle
    • Dimensions (a x b x c)

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Inverter welder; 4.1kVA; 230VAC; 19A; 50/60Hz; MMA,TIG; IP21; 56V

    Supply voltage 230V AC
    IP rating IP21
    Kit contents ground clamp with cable, hammer with a wire brush, MMA welding holder with cable, TIG welding holder with 3.8m cable, welding mask
    Power consumption 4.1kVA
    Kind of display used LED
    Efficiency 85%
    Duty cycle factor 10...90%
    Insulation class F
    Input current 19A
    Supply voltage frequency 50/60Hz
    Power factor ≥0.7
    Open circuit voltage 56V
    Electrode diameter (MMA) 1...4mm
    Electrode diameter (TIG) 1...3.2mm
    Welding method MMA, TIG
    Welding current TIG-AC 20...200A
    Output current frequency in AC mode 60Hz
    Pulse current in PULSE mode 5...200A
    Gas flow time after welding 1...10s
    Pulse frequency DC mode 0.2...25Hz
    Welding current at 100% duty cycle 154A
    Welding current TIG-DC 5...200A
    Welding current MMA 10...200A
    Welding equipment features 2 T / 4 T change-over switch, ANTI STICK - prevents electrode from sticking to welding material, ARC FORCE - electrical arc stablization, connector for connecting a foot pedal, HOT START - easy to initiate an electrical arc, integrated solenoid gas valve, MOSFET technology, possibility to set current upslope and downslope time, possibility to set gas flow time after welding, PULS - possibility of pulse current welding, TIG AC - welding of aluminum and non-ferrous metals (brass, bronze), TIG HF - non-contact electrical arc ignition using high frequency
    Welding current at 60% duty cycle 200A
    Balans prądu AC 20...80%
    Nominal duty cycle 60%
    Method of cooling the handle air
    Dimensions (a x b x c) 325x510x365mm
