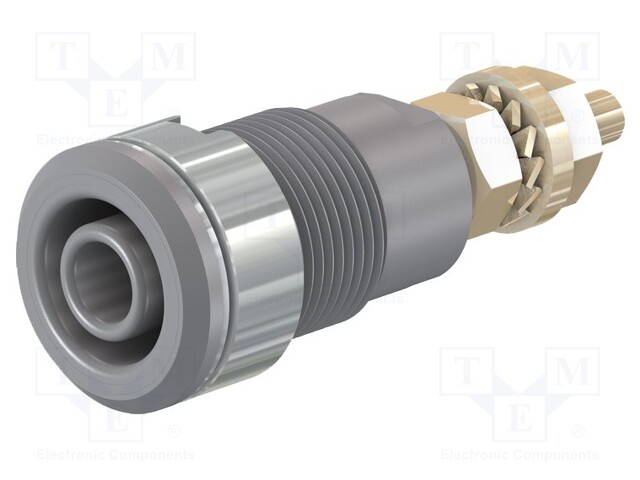

Socket; 4mm banana; 32A; 1kV; Cutout: Ø12.2mm; grey; gold-plated

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 23.3020-28
    Tootja: STÄUBLI
    Tootja tootekood: 23.3020-28
    • Mounting
    • Mounting
    • Mounting
    • Connector
    • Colour
    • Contact plating
    • Material
    • Mounting hole diameter
    • Panel cutout diameter
    • Current rating
    • Rated voltage
    • Connector variant
    • Overall length
    • Conform to the norm
    • Conform to the norm

    4,86 € 4,86 € (KM-TA) 4.86 EUR

    4,86 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

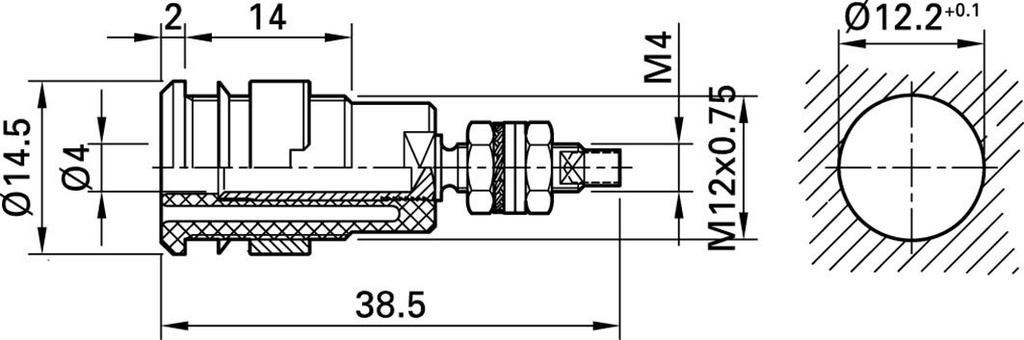

    Spetsifikatsioon tootele Socket; 4mm banana; 32A; 1kV; Cutout: Ø12.2mm; grey; gold-plated

    Mounting on panel, screw, soldered
    Connector socket
    Colour grey
    Contact plating gold-plated
    Material brass
    Mounting hole diameter Ø12.2mm
    Panel cutout diameter 12.2mm
    Current rating 32A
    Rated voltage 1kV
    Connector variant insulated
    Overall length 38.5mm
    Conform to the norm CAT III 1000V, EN 61010
