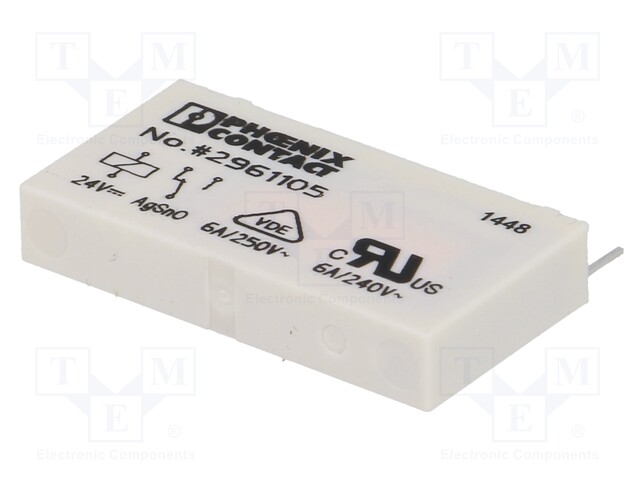

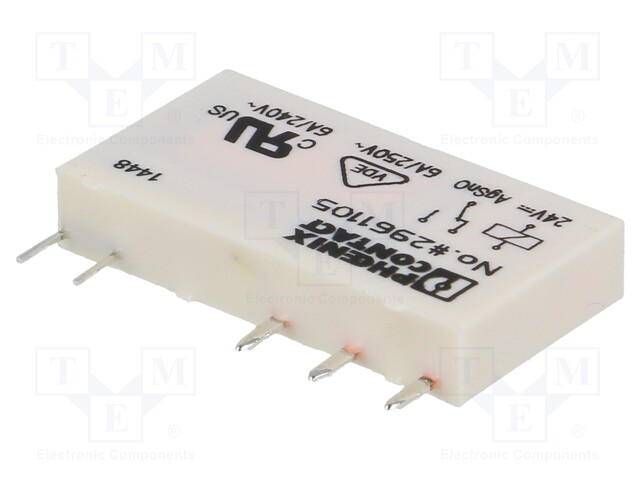

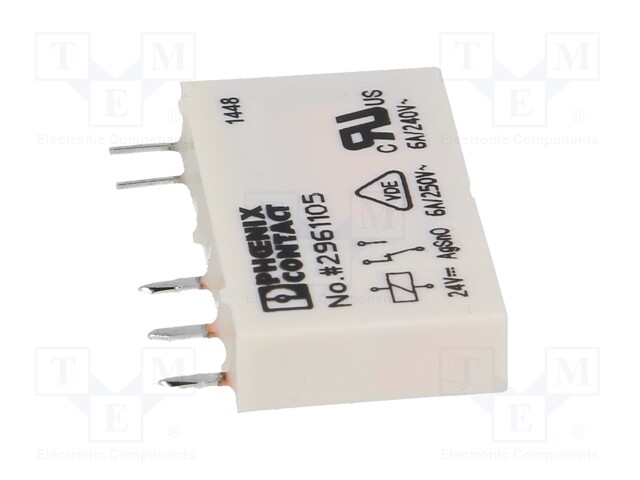

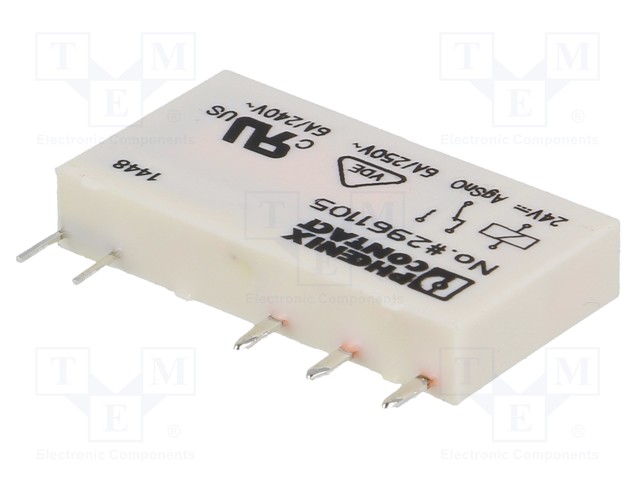

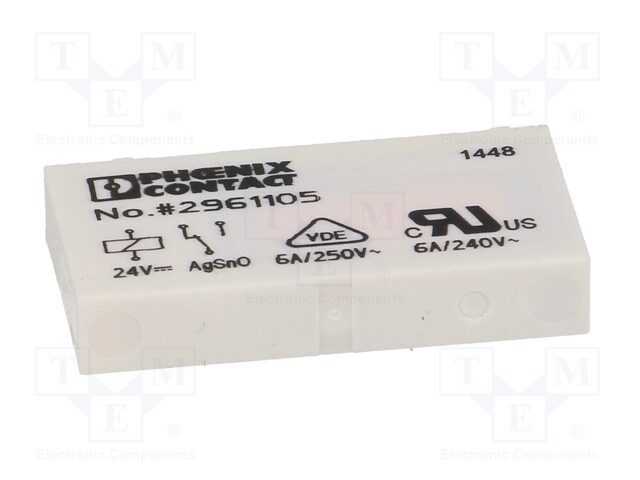

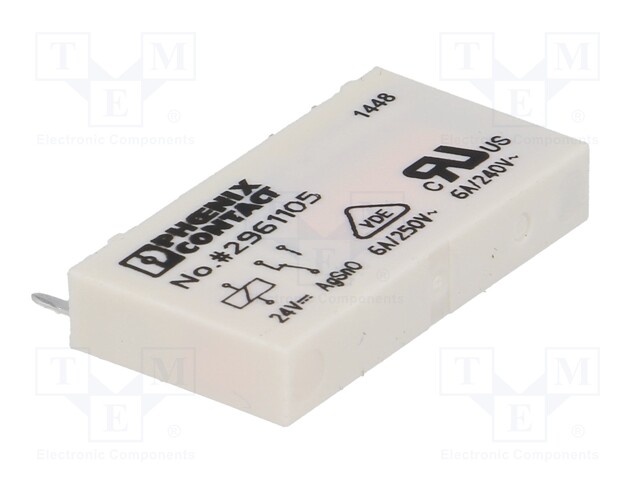

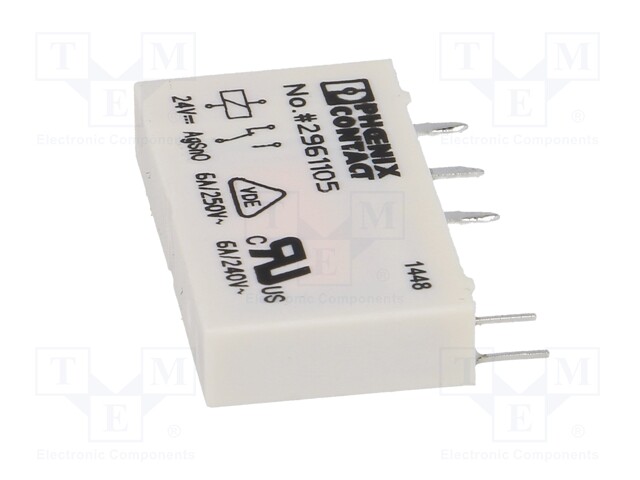

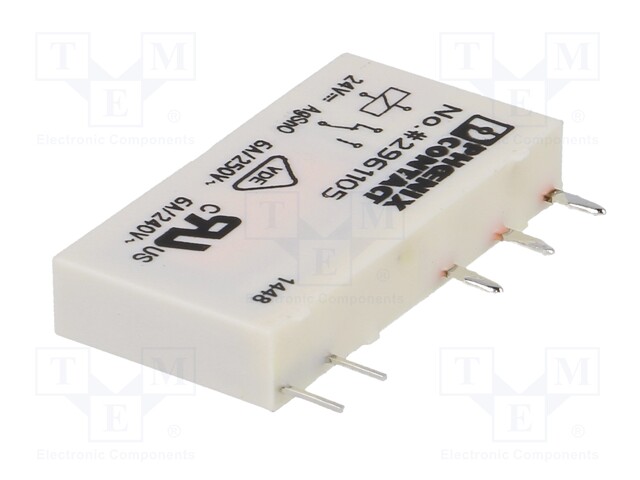

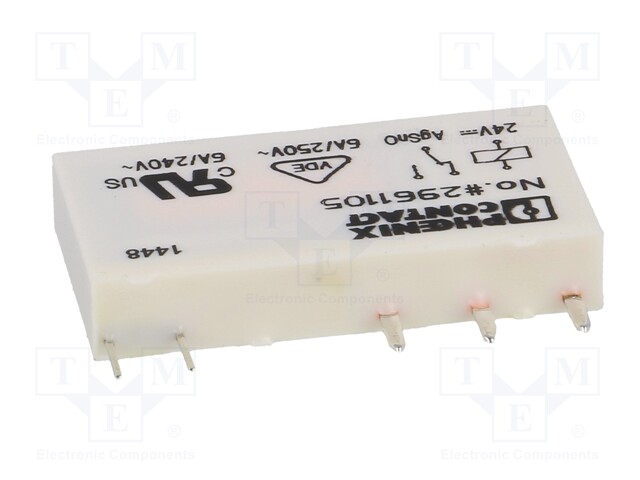

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 2A/24VDC; 6A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2961105-1
    Tootja: PHOENIX CONTACT
    Tootja tootekood: 2961105
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage min.
    • Operate time
    • Release time

    8,33 € 8,33 € (KM-TA) 8.33 EUR

    8,33 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 2A/24VDC; 6A

    Mounting PCB, socket
    Operating temperature -40...85°C
    Leads for soldering
    Terminal pitch 5mm
    Body dimensions 28x5x15mm
    Mechanical durability 20000000cycles
    Switched voltage ≤ 250V DC, ≤ 250V AC
    Coil resistance 3.39kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 3A / 230V AC
    Contact current max. 6A
    Relay variant miniature
    Coil voltage min. 14.4V DC
    Operate time 5ms
    Release time 2.5ms
