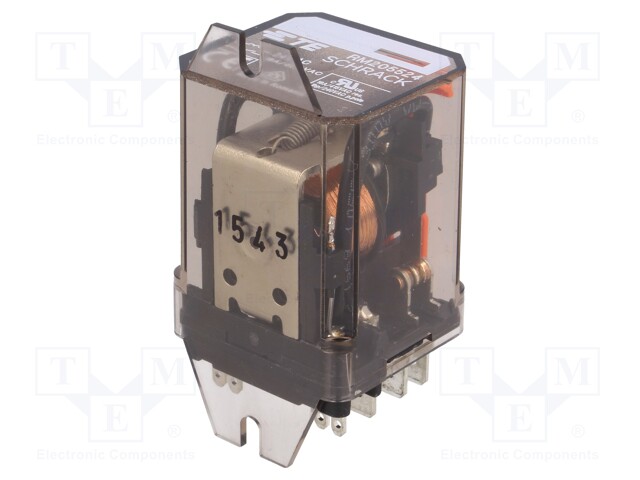

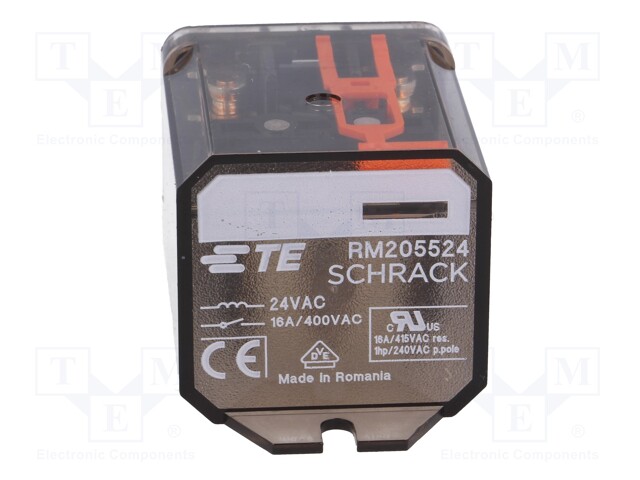

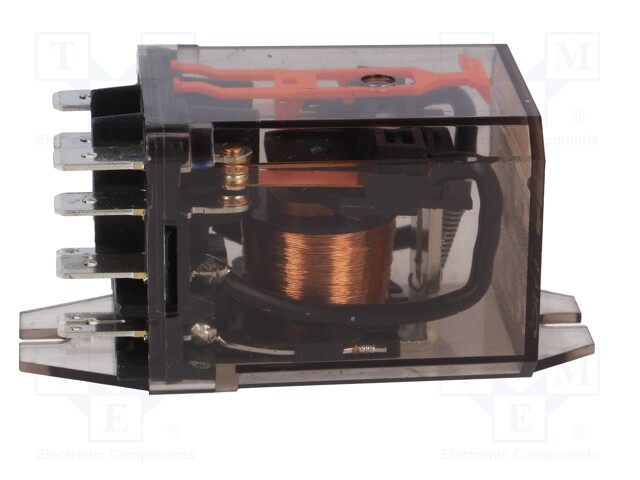

Relay: electromagnetic; DPDT; Ucoil: 24VAC; Icontacts max: 16A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3-1393146-0
    Tootja: TE Connectivity
    Tootja tootekood: 3-1393146-0
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VAC; Icontacts max: 16A

    Mounting holders
    Operating temperature -45...60°C
    Leads connectors
    Contact material AgCdO

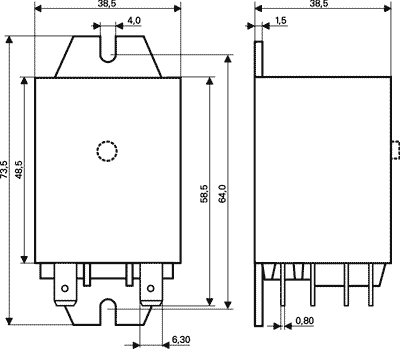

    Body dimensions 38.5x38.5x55.5mm
    Mechanical durability 20000000cycles
    Switched voltage ≤ 300V DC, ≤ 440V AC
    Coil resistance 86Ω
    Contacts configuration DPDT
    DC contacts rating @R 16A / 30V DC
    AC contacts rating @R 16A / 380V AC
    Contact current max. 16A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 2.3VA
    Operate time 15ms
    Release time 10ms
    Coil current 94.2mA
