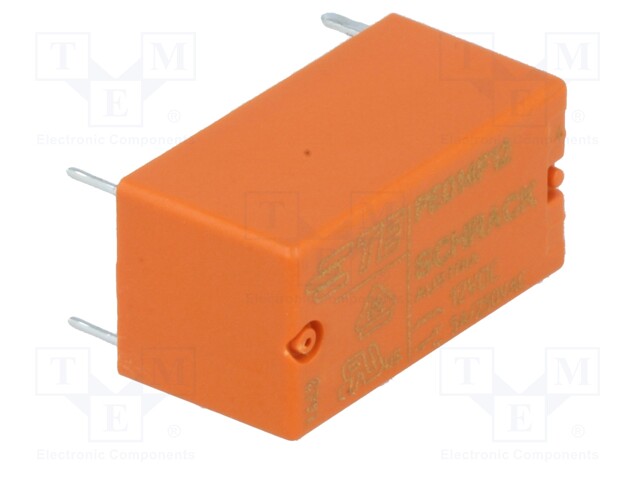

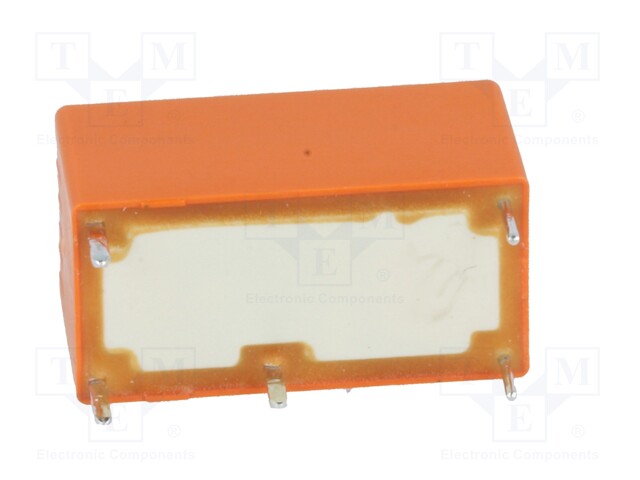

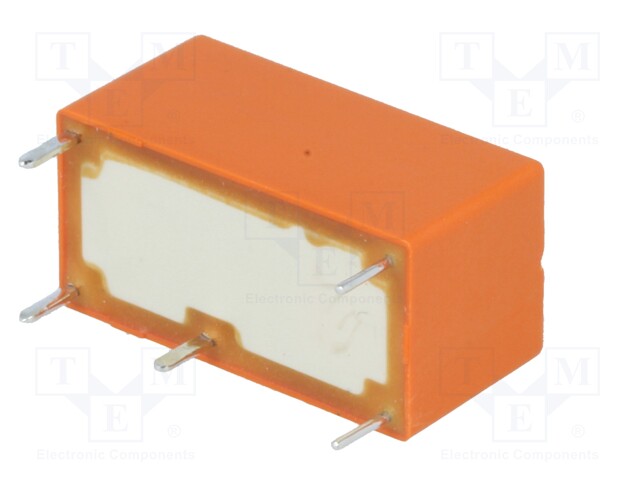

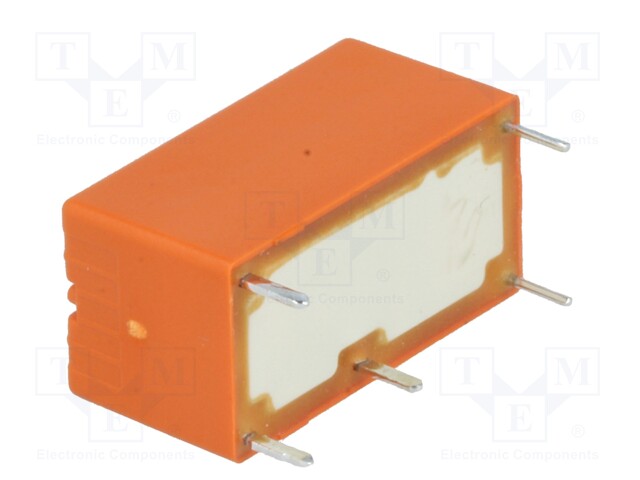

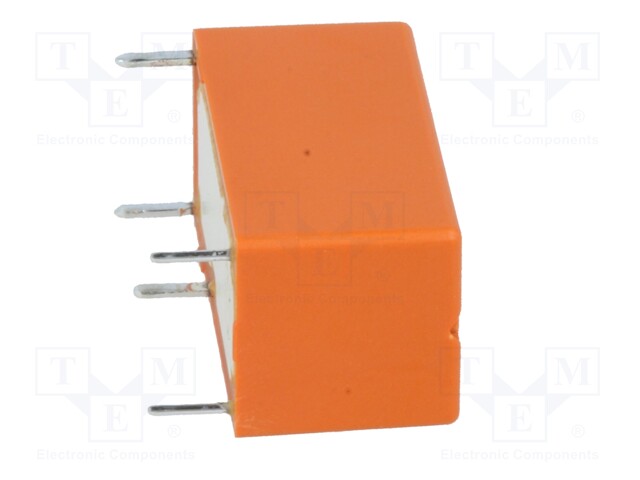

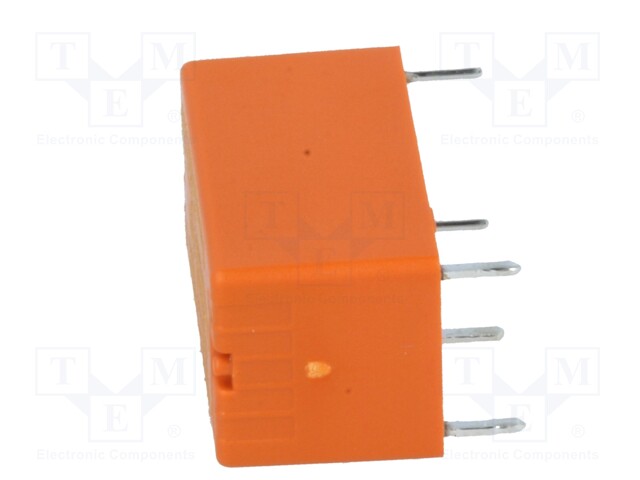

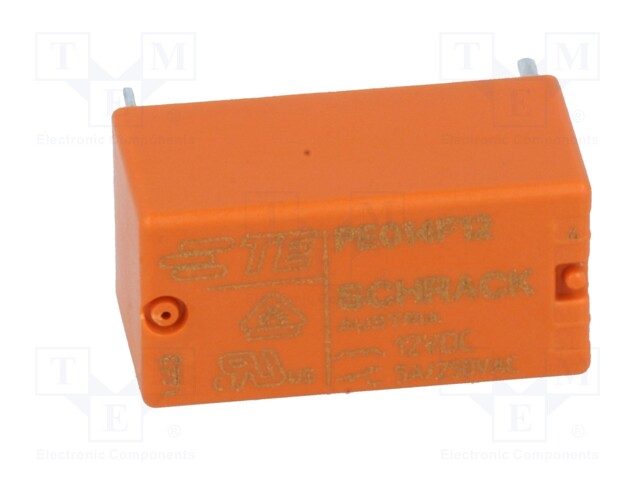

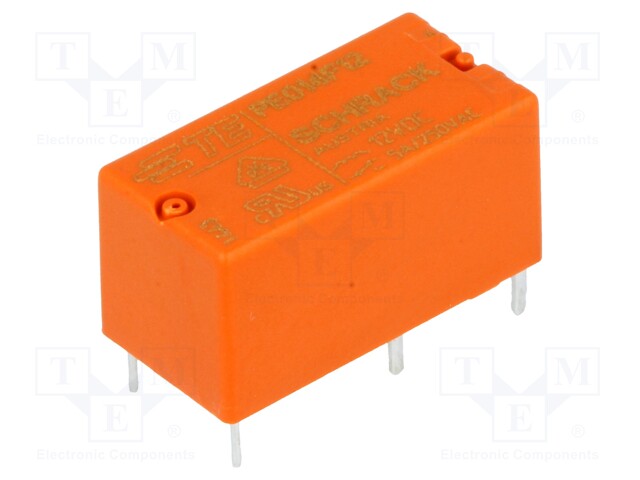

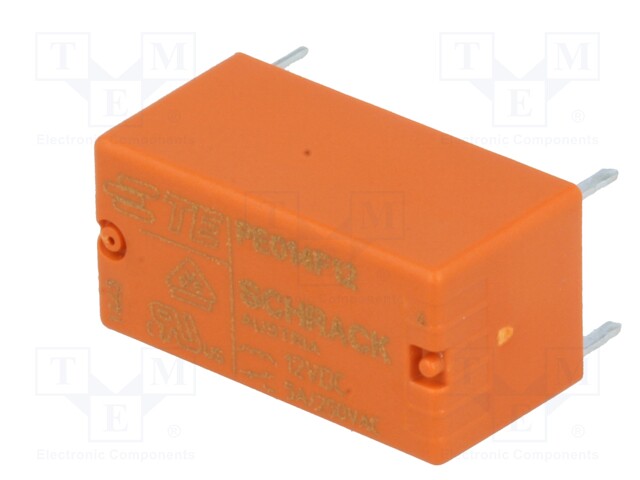

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC; 5A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3-1415390-1
    Tootja: TE Connectivity
    Tootja tootekood: 3-1415390-1
    • Mounting
    • Operating temperature
    • Polarisation
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Switching time
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption

    6,56 € 6,56 € (KM-TA) 6.5600000000000005 EUR

    6,56 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC; 5A

    Mounting PCB
    Operating temperature -40...70°C

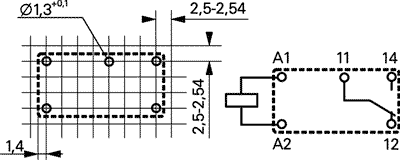

    Polarisation A1 "+" , A2 "-" coil terminals
    Contact material AgNi 90/10
    Terminal pitch 7.62mm
    Body dimensions 20x10x10mm
    Switched voltage ≤ 220V DC, ≤ 440V AC
    Switching capacity 1.25kVA
    Coil resistance 650Ω
    Rated coil voltage 12V DC
    Switching time 20ms
    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant bistable, miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
