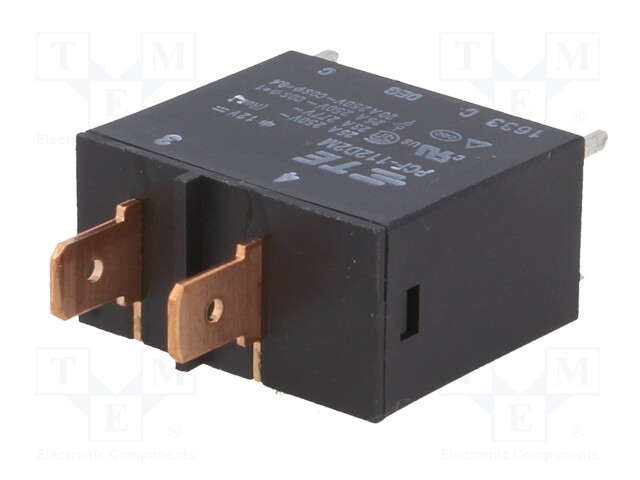

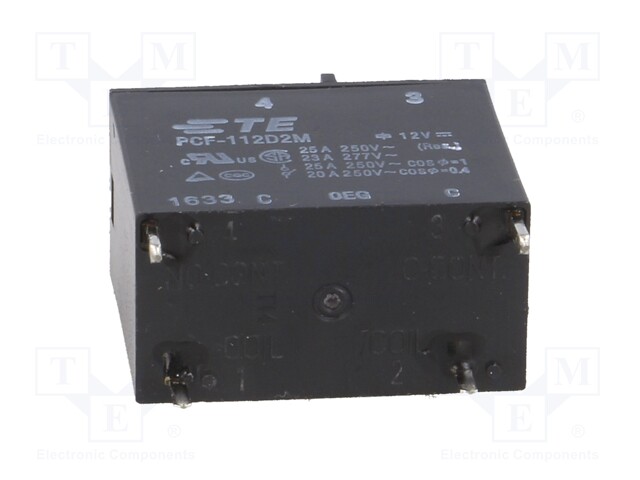

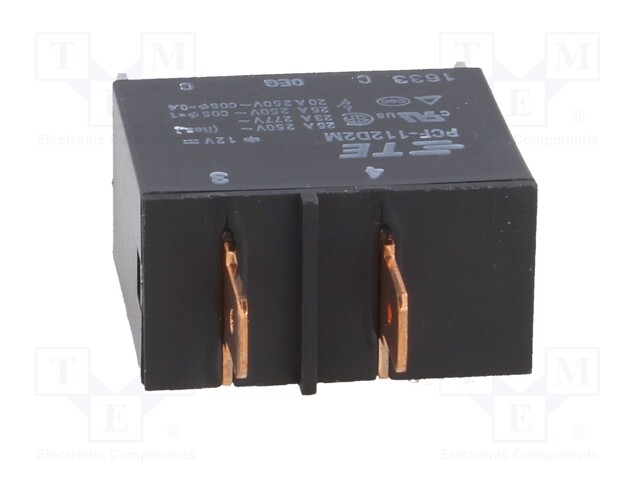

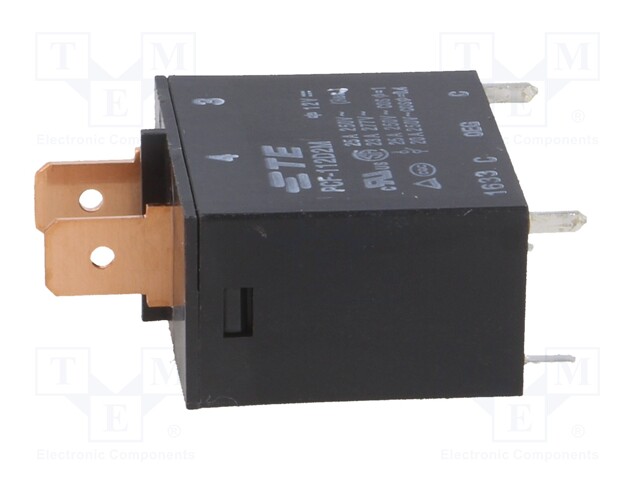

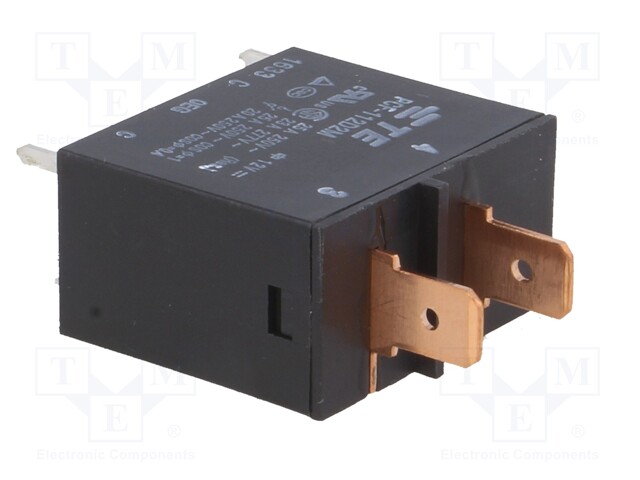

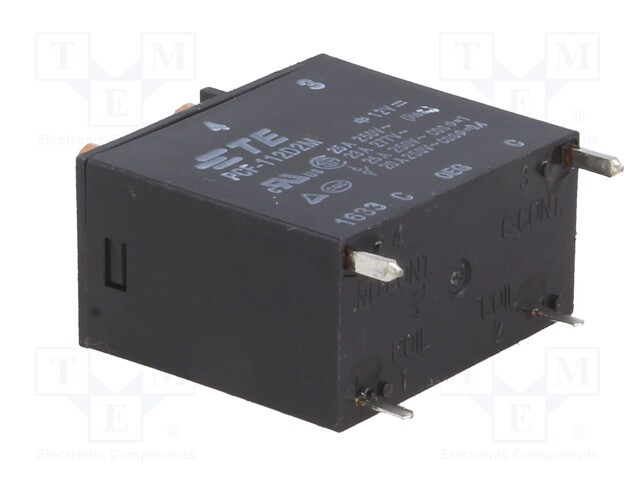

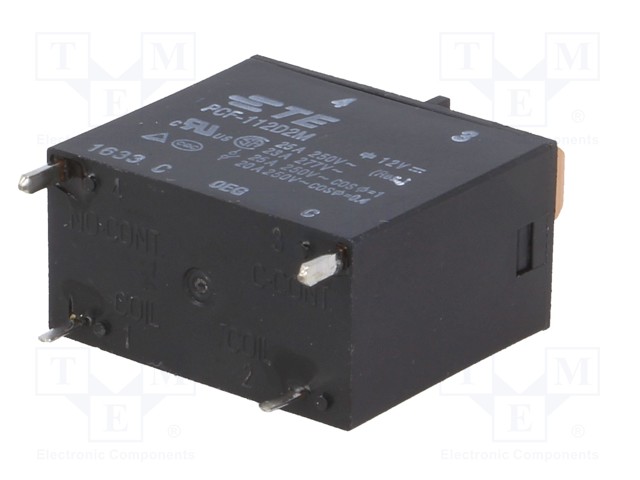

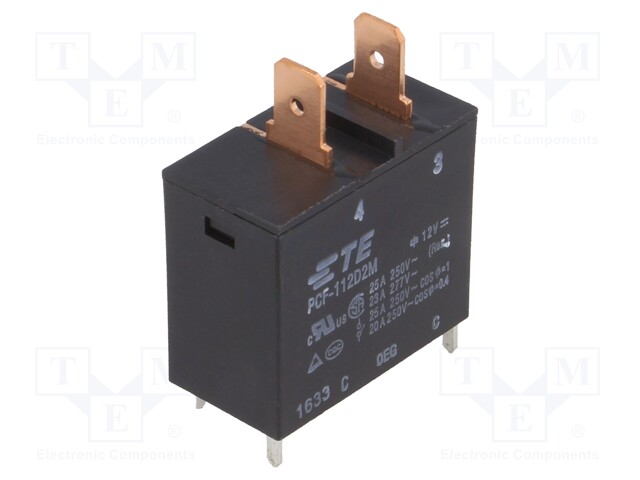

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 25A/250VAC; 25A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3-1419153-4
    Tootja: TE Connectivity
    Tootja tootekood: 3-1419153-4
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 25A/250VAC; 25A

    Mounting connectors, PCB
    Operating temperature -30...55°C
    Contact material AgSnO<sub>2</sub>

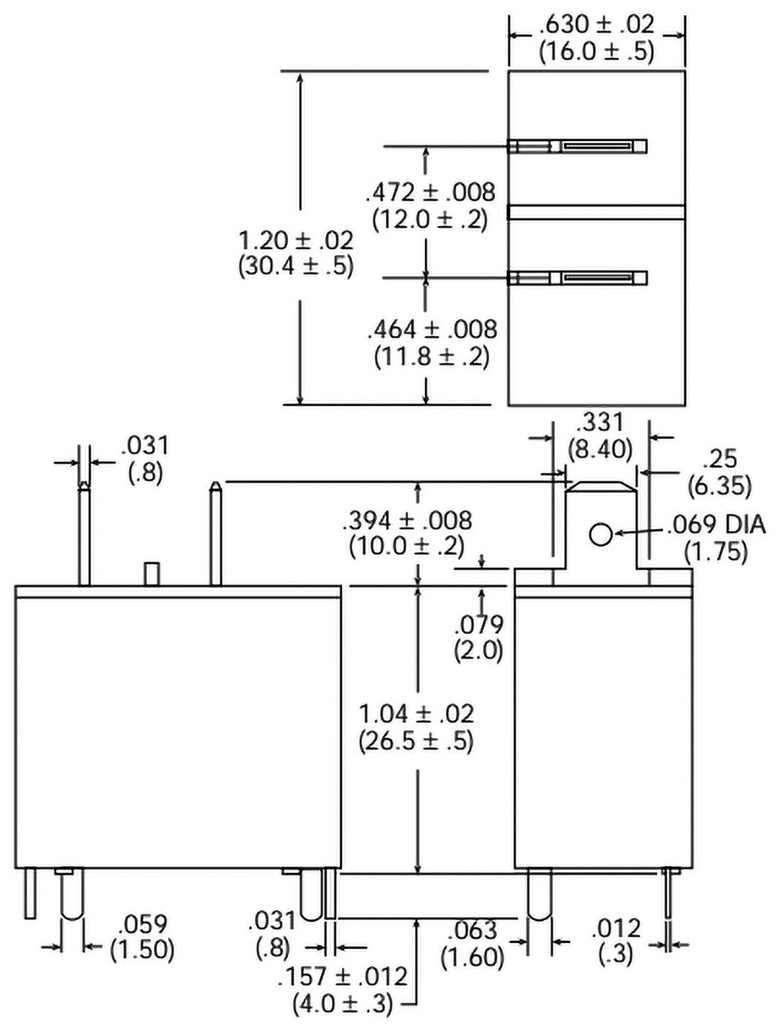

    Body dimensions 30.4x16x36.5mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 160Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 25A / 24V DC
    AC contacts rating @R 25A / 250V AC
    Contact current max. 25A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 0.9W
    Operate time 20ms
    Release time 10ms
