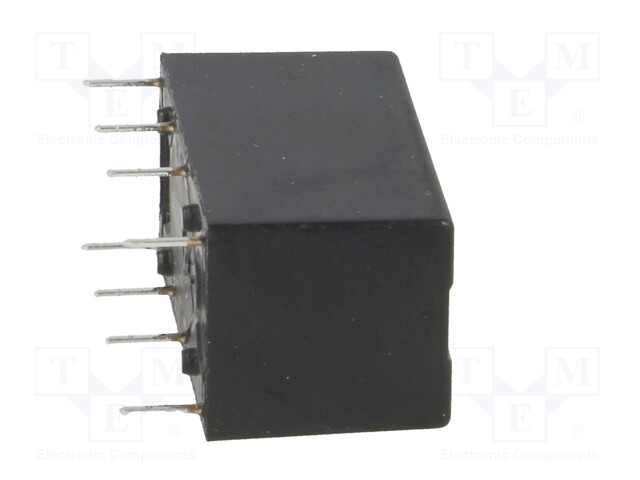

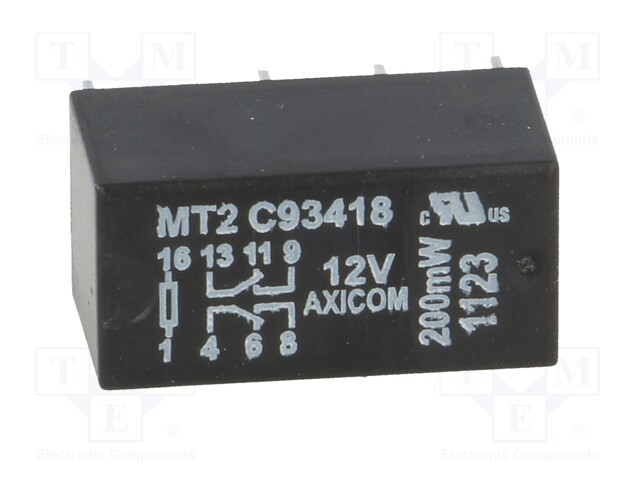

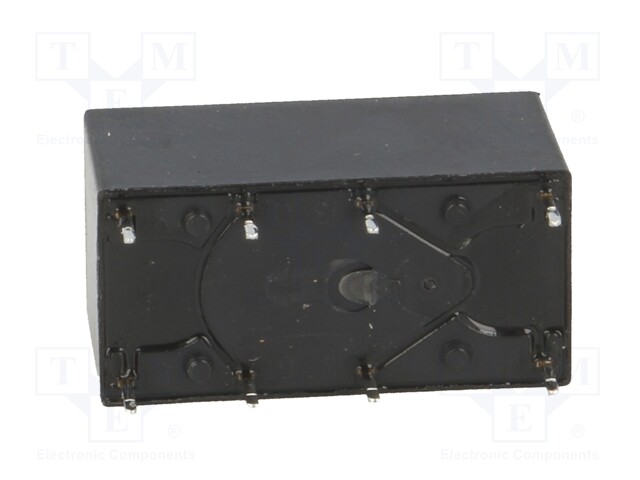

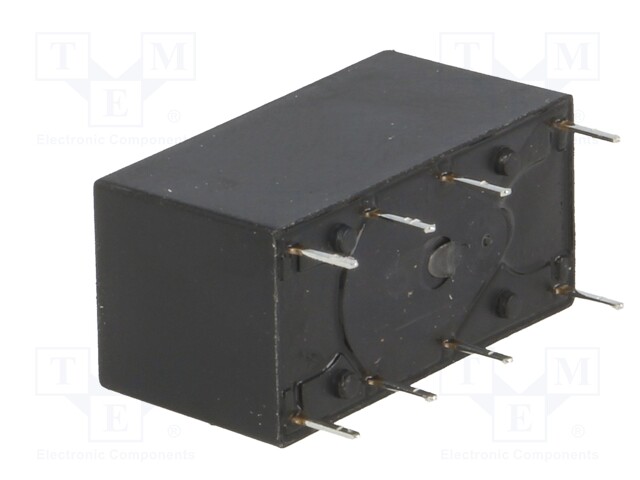

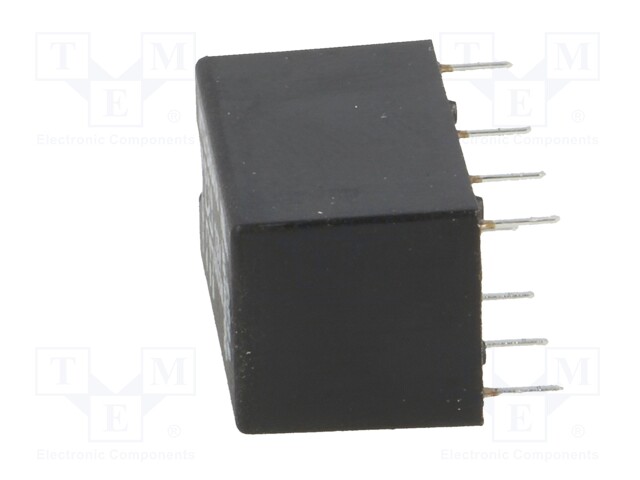

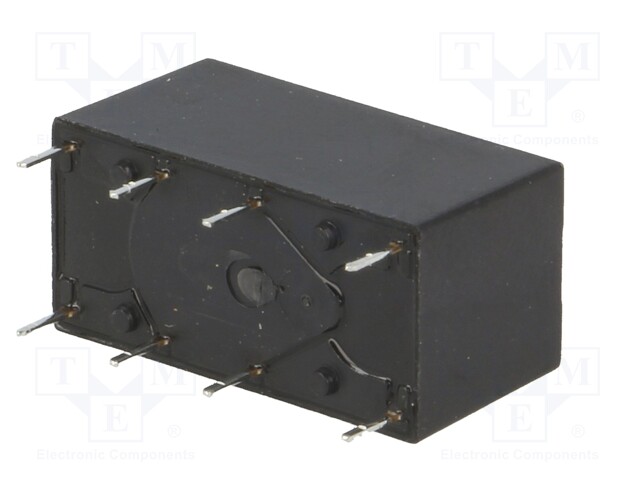

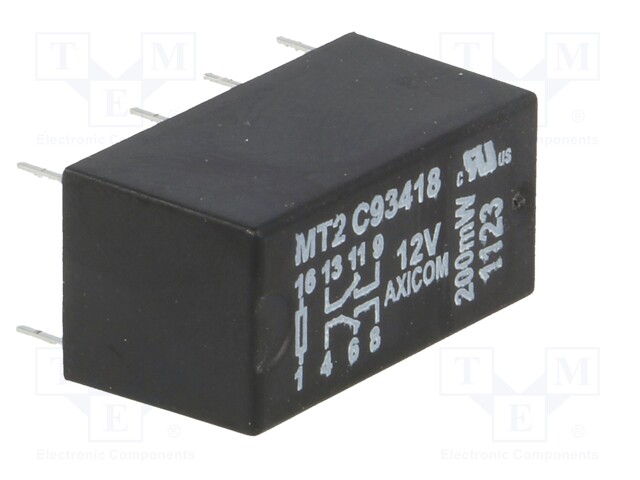

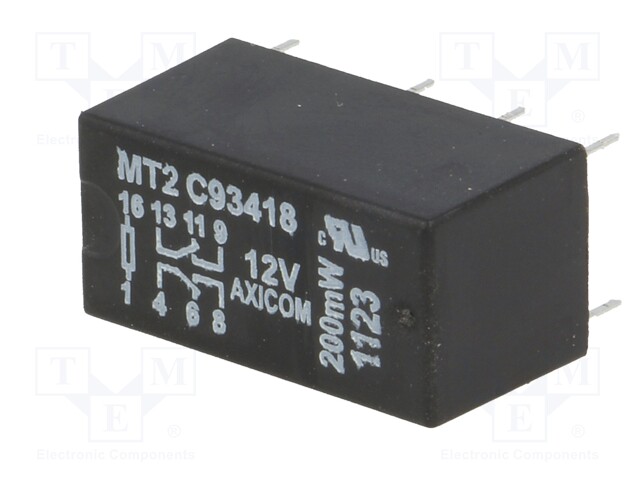

Relay: electromagnetic; DPDT; Ucoil: 12VDC; max.250VAC; max.220VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3-1462000-7
    Tootja: TE Connectivity
    Tootja tootekood: 3-1462000-7
    • Mounting
    • Operating temperature
    • IP rating
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Switched current
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    9,95 € 9,95 € (KM-TA) 9.950000000000001 EUR

    9,95 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; max.250VAC; max.220VDC

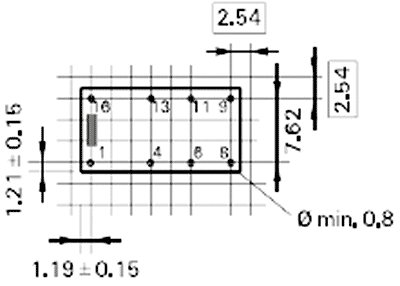

    Mounting PCB
    Operating temperature -55...85°C
    IP rating IP67

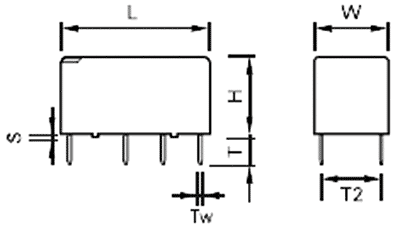

    Body dimensions 20.2x10x11mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Coil resistance 728Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    Contact resistance 70mΩ
    Switched current 2A
    Contact current max. 2A
    Relay variant signal
    Coil voltage max. 28V DC
    Type of relay electromagnetic
    Coil voltage min. 7.8V DC
    Coil power consumption 200mW
