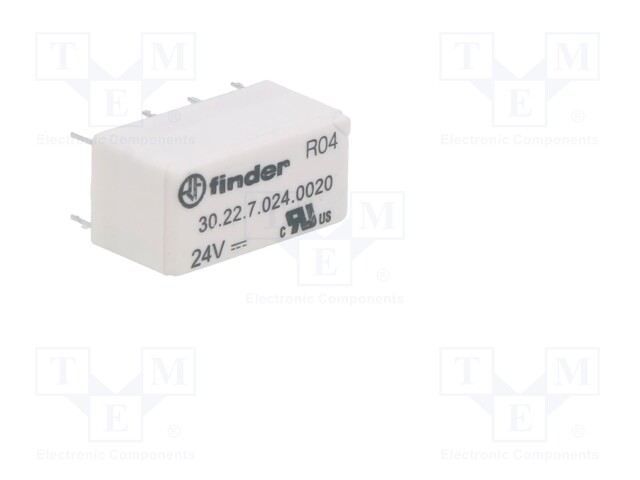

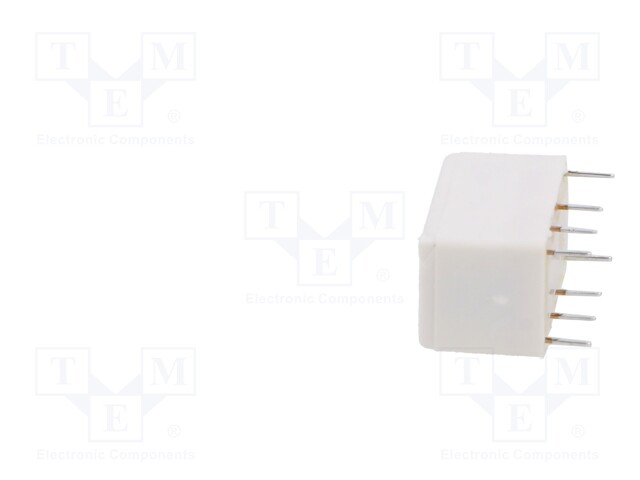

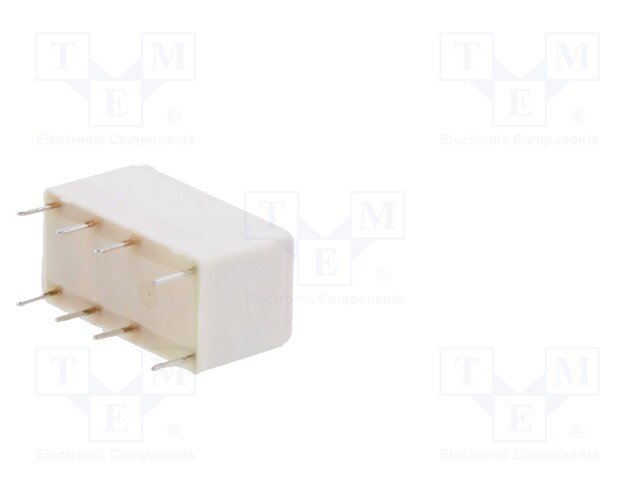

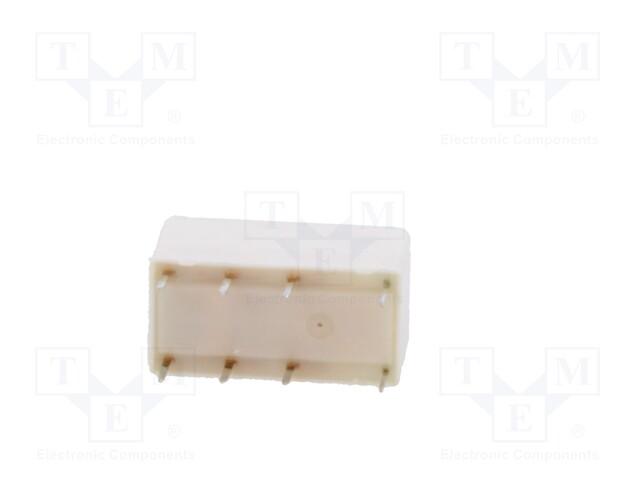

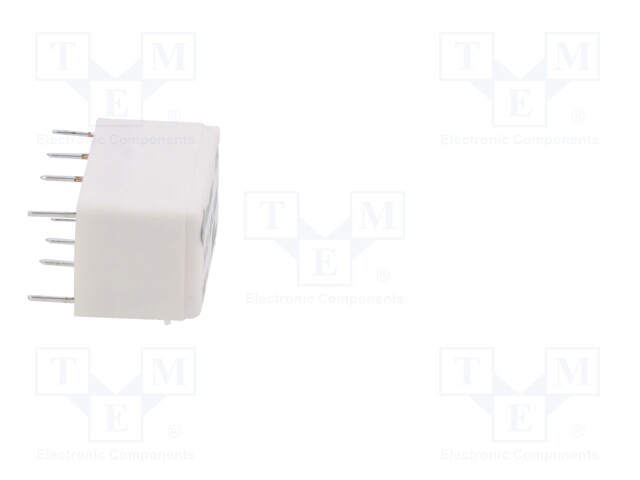

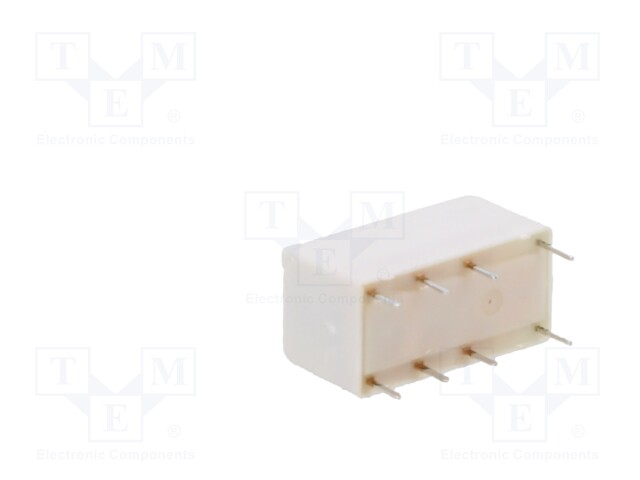

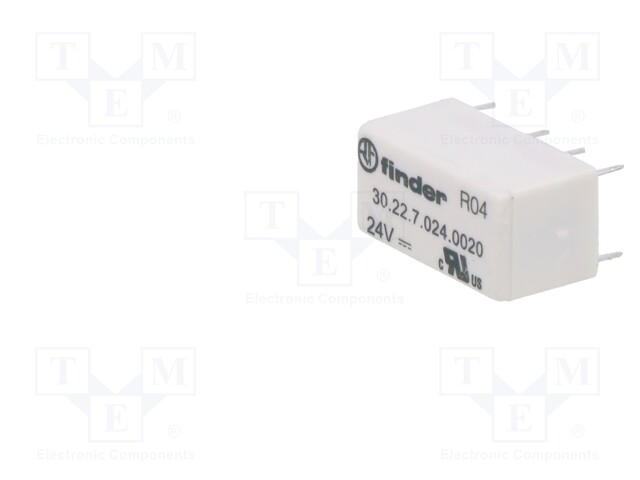

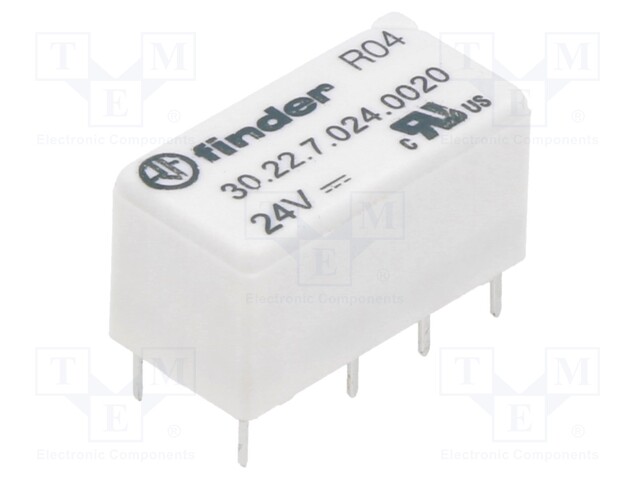

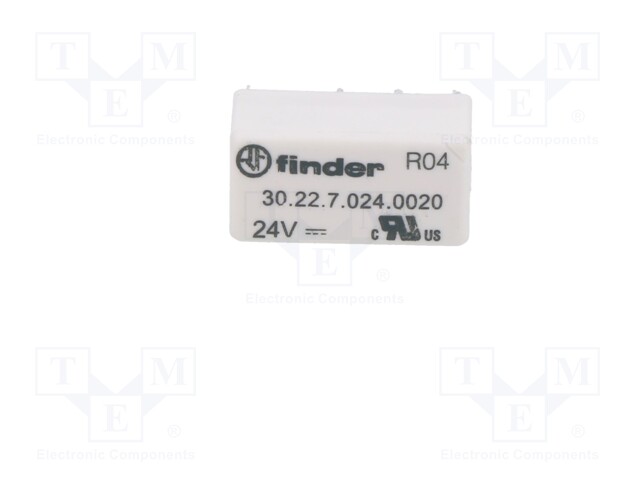

Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 3A; PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 30.22.7.024.0020
    Tootja: FINDER
    Tootja tootekood: 30.22.7.024.0020
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    7,32 € 7,32 € (KM-TA) 7.32 EUR

    7,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 3A; PCB

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi/Au 5μm
    Terminal pitch 5mm
    Body dimensions 20.3x10.1x11.4mm
    Switched voltage ≤ 110V DC, ≤ 250V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 2A / 125V AC
    Contact current max. 3A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Coil current 8.3mA
