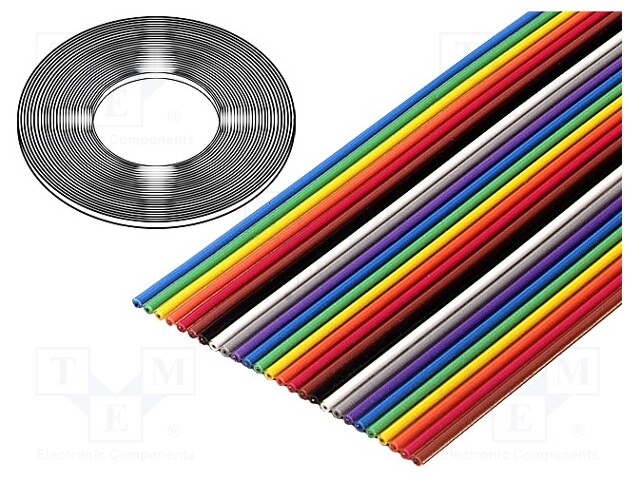

Wire: ribbon; 20x28AWG; 1.27mm; stranded; Cu; unshielded; PVC; 50V

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3302/20 (100FT)
    Tootja: 3M
    Tootja tootekood: 3302/20 (100FT)
    • Operating temperature
    • Core structure
    • Kind of core
    • Kind of core
    • Number of cores
    • Wire insulation material
    • Rated voltage
    • Ribbon cable pitch
    • B dimension
    • A dimension
    • Type of wire
    • Shield structure
    • Core marking
    • Earth core

    118,34 € 118,34 € (KM-TA) 118.34 EUR

    118,34 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Wire: ribbon; 20x28AWG; 1.27mm; stranded; Cu; unshielded; PVC; 50V

    Operating temperature -20...105°C
    Core structure stranded
    Kind of core Cu, tinned
    Number of cores 20
    Wire insulation material PVC
    Rated voltage 50V

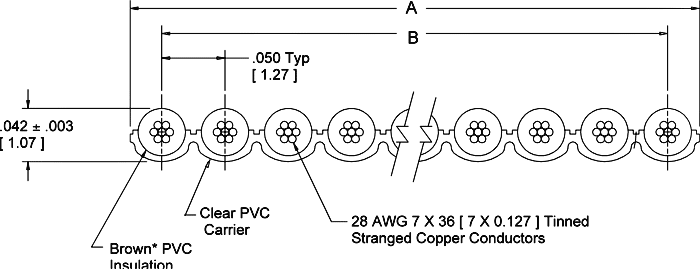

    Ribbon cable pitch 1.27mm
    B dimension 24.13mm
    A dimension 25.4mm
    Type of wire ribbon
    Shield structure unshielded
    Core marking colours with colour repetition
    Earth core without earth core
