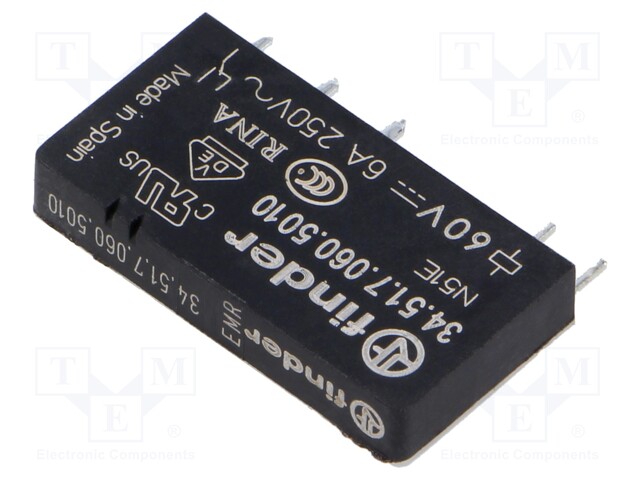

Relay: electromagnetic; miniature

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 34.51.7.060.5010
    Tootja: FINDER
    Tootja tootekood: 34.51.7.060.5010
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption

    16,94 € 16,94 € (KM-TA) 16.94 EUR

    16,94 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; miniature

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgNi + Au
    Body dimensions 28x5x15mm
    Switched voltage ≤ 220V DC, ≤ 400V AC
    Coil resistance 17kΩ
    Rated coil voltage 60V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 10A
    Relay variant miniature, sensitive
    Type of relay electromagnetic
    Coil power consumption 170mW
