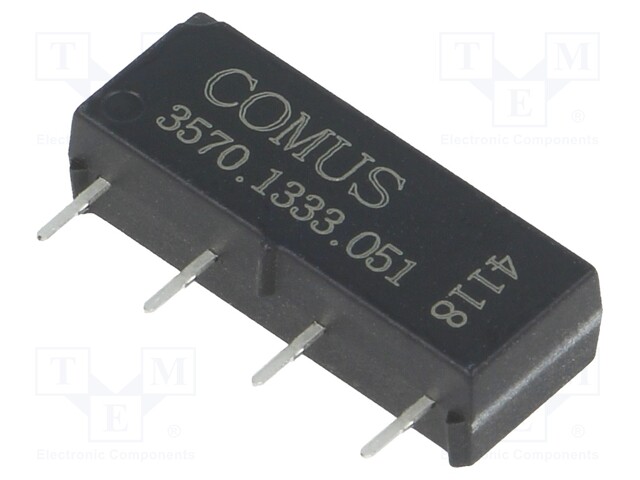

Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W; THT; SIP

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3570.1333.051
    Tootja: COMUS
    Tootja tootekood: 3570.1333.051
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay features

    2,88 € 2,88 € (KM-TA) 2.88 EUR

    2,88 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W; THT; SIP

    Mounting THT
    Case SIP
    Operating temperature -40...85°C
    Terminal pitch 5.08mm
    Body dimensions 19x7.7x5.08mm
    Switched voltage ≤ 200V DC
    Switching capacity 10W
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 7V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Relay features high reliability
