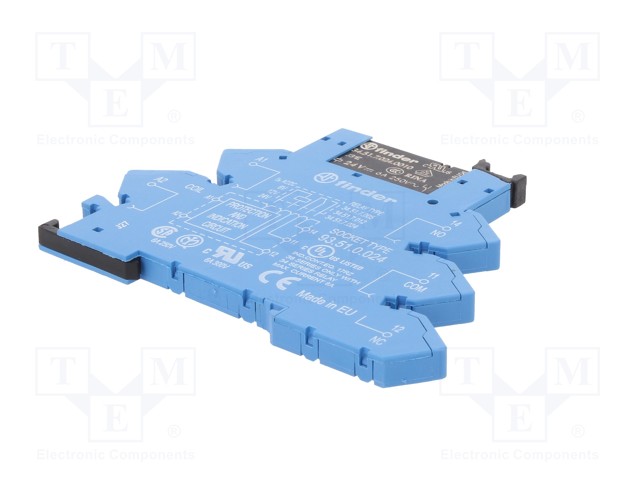

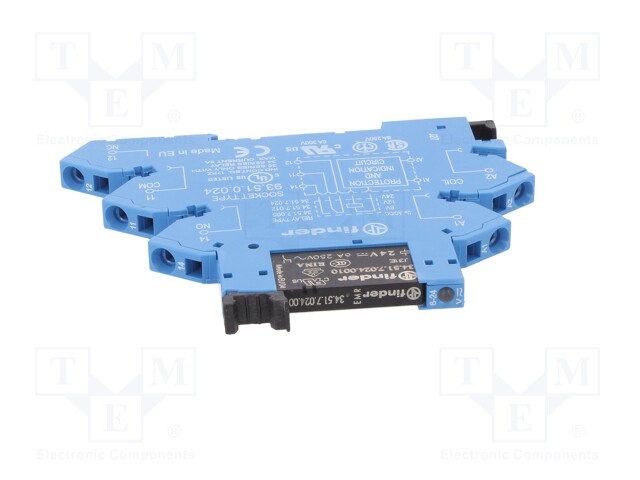

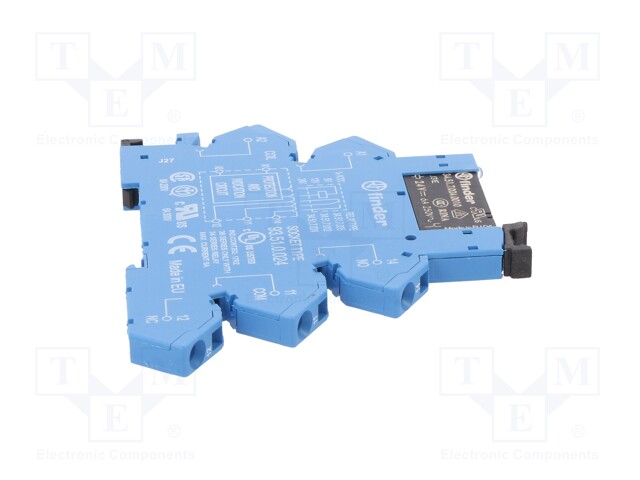

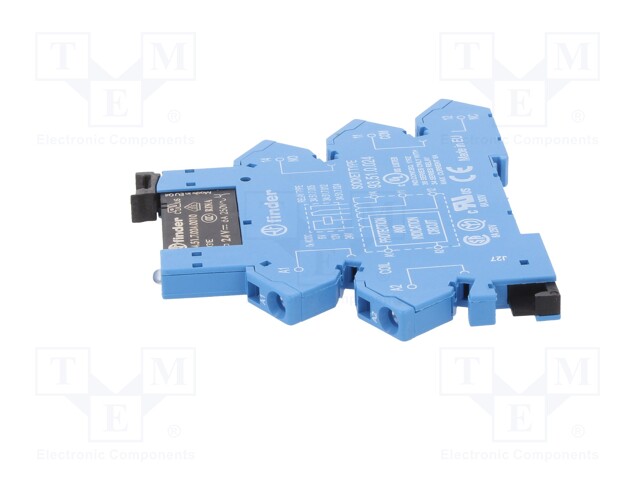

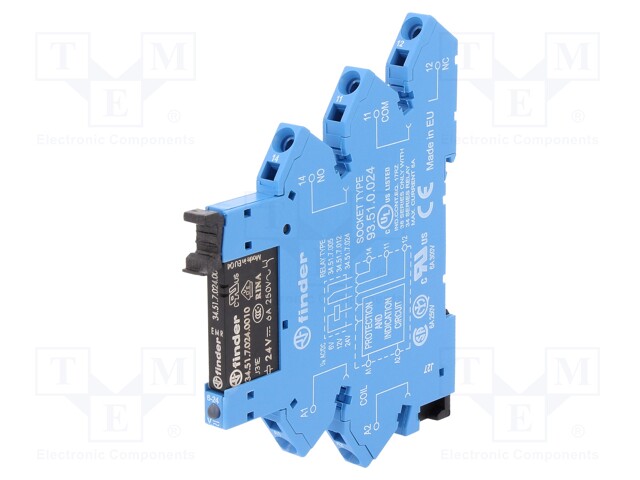

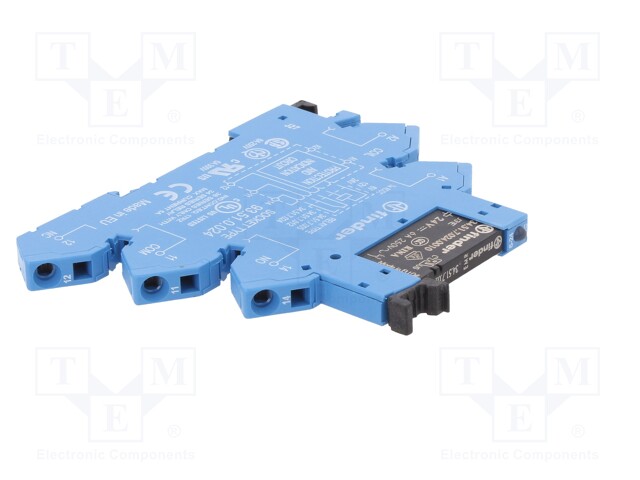

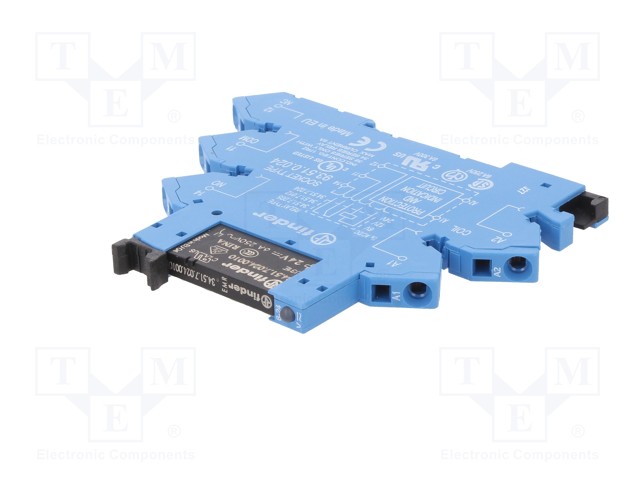

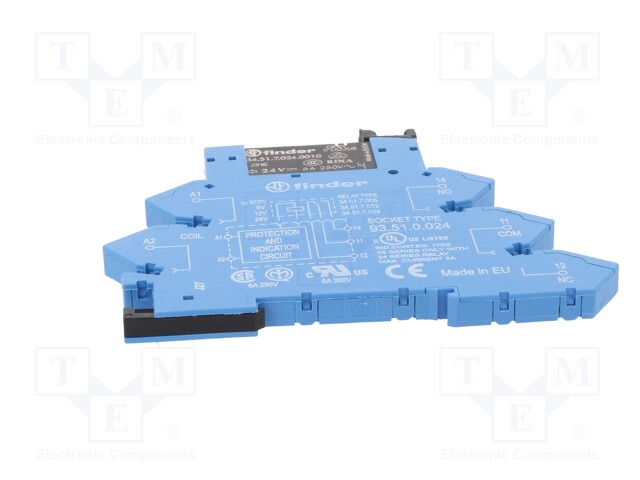

Relay: interface; SPDT; Ucoil: 24VDC; Ucoil: 24VAC; 6A; 6A/250VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 38.61.0.024.0060
    Tootja: FINDER
    Tootja tootekood: 38.61.0.024.0060
    • Mounting
    • Max. operating current
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Indication
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay

    19,67 € 19,67 € (KM-TA) 19.67 EUR

    19,67 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: interface; SPDT; Ucoil: 24VDC; Ucoil: 24VAC; 6A; 6A/250VAC

    Mounting for DIN rail mounting
    Max. operating current 6A
    Operating temperature -40...70°C
    IP rating IP20
    Leads spring clamps

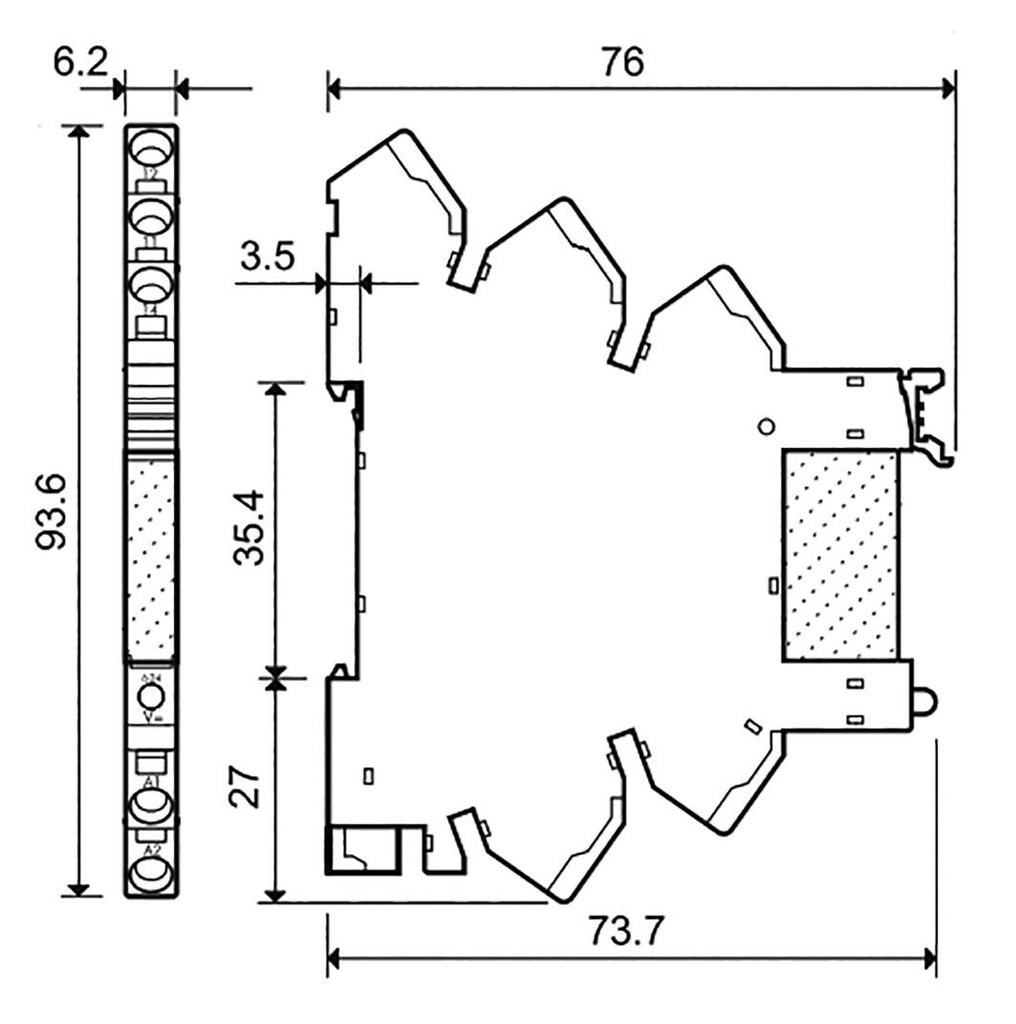

    Body dimensions 93.6x6.2x76mm
    Kit contents 34.51.7.024.0010, 93.51.0.024
    Switched voltage ≤ 220V DC, ≤ 400V AC
    Indication LED
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Relay variant Relay set
    Type of relay interface
