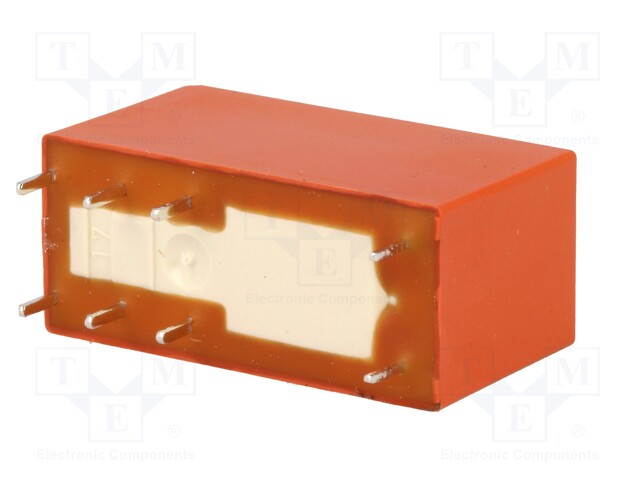

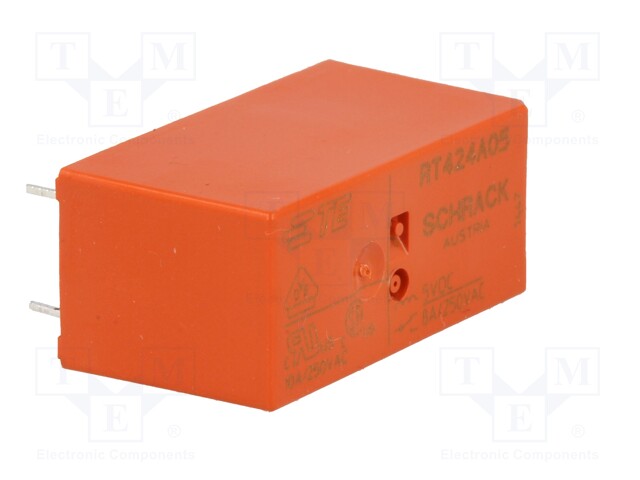

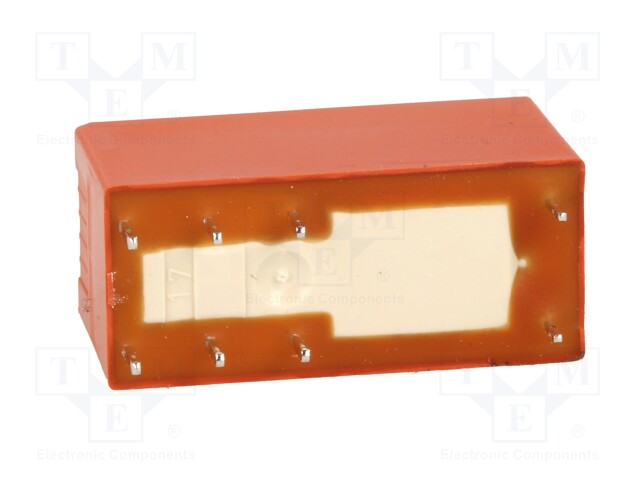

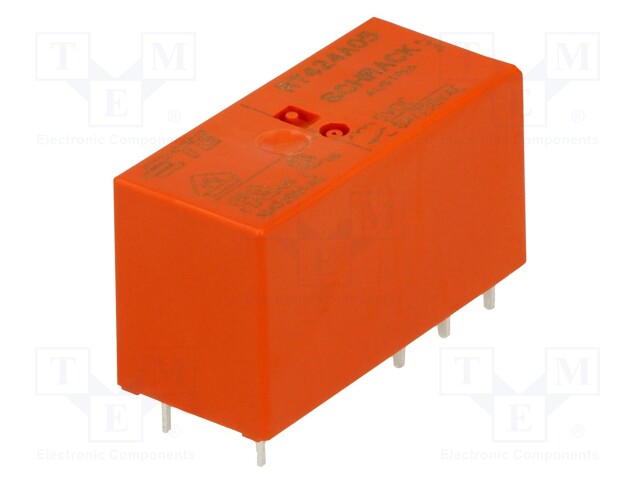

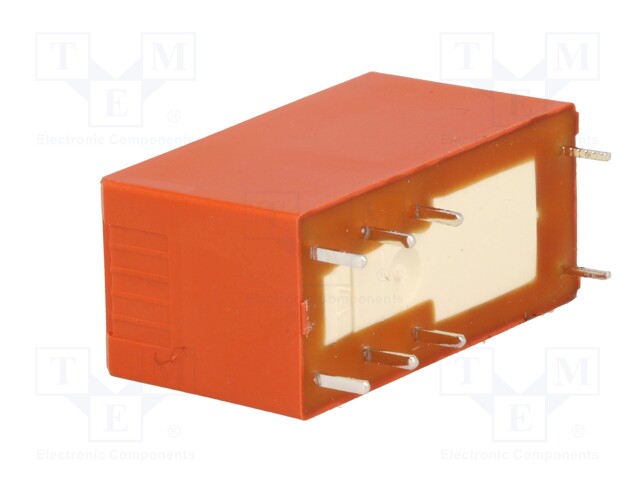

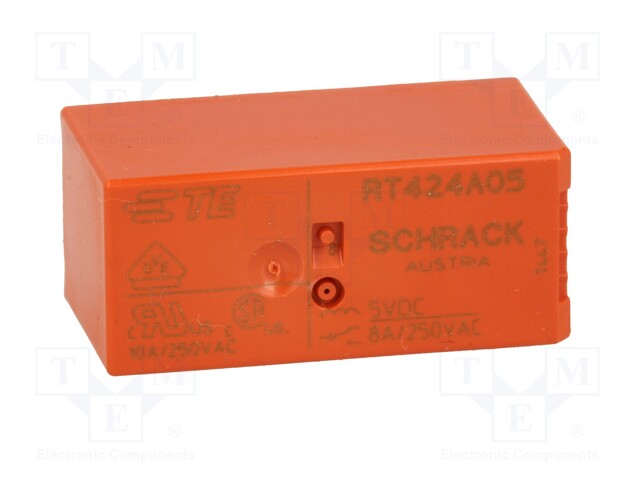

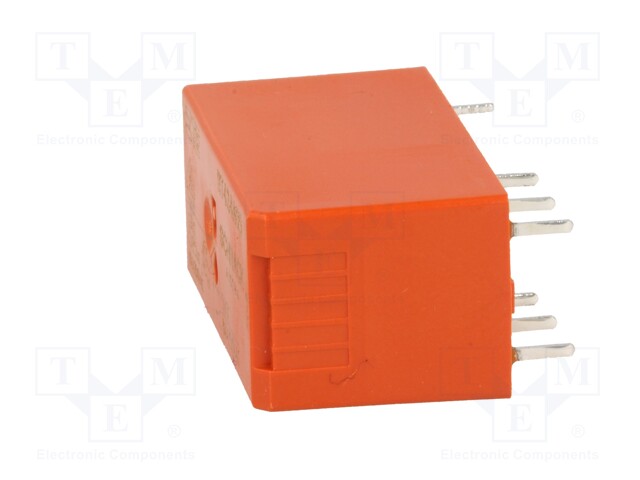

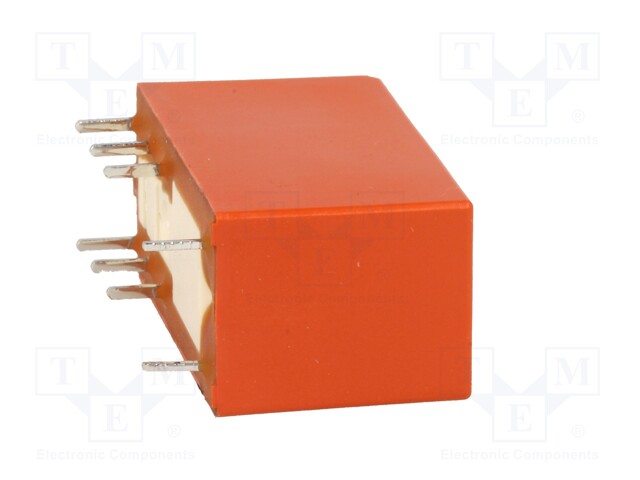

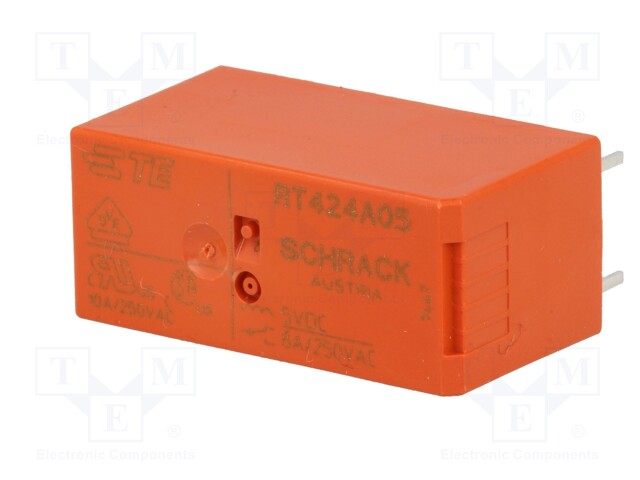

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 8A/250VAC; 8A/30VDC; 8A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 4-1393243-4
    Tootja: TE Connectivity
    Tootja tootekood: 4-1393243-4
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    9,41 € 9,41 € (KM-TA) 9.41 EUR

    9,41 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 5VDC; 8A/250VAC; 8A/30VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Number of pins 8
    Contact material AgNi 90/10

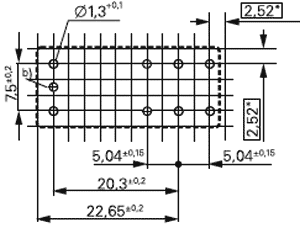

    Terminal pitch 5mm

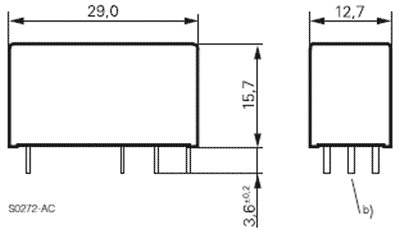

    Body dimensions 29x12.7x15.7mm
    Mechanical durability 1000000cycles
    Switched voltage ≤ 220V DC, ≤ 400V AC
    Coil resistance 62Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant bistable, miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 403mW
