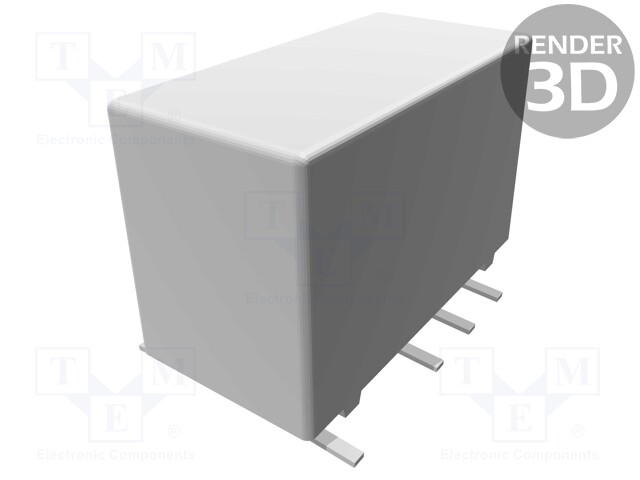

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 4-1393789-5
    Tootja: TE Connectivity
    Tootja tootekood: 4-1393789-5
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    2,94 € 2,94 € (KM-TA) 2.94 EUR

    2,94 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Mounting SMT
    Operating temperature -40...85°C
    Terminal pitch 2.54mm
    Body dimensions 14.5x7.2x9.8mm
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant miniature, monostable
    Coil voltage max. 24.2V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 200mW
