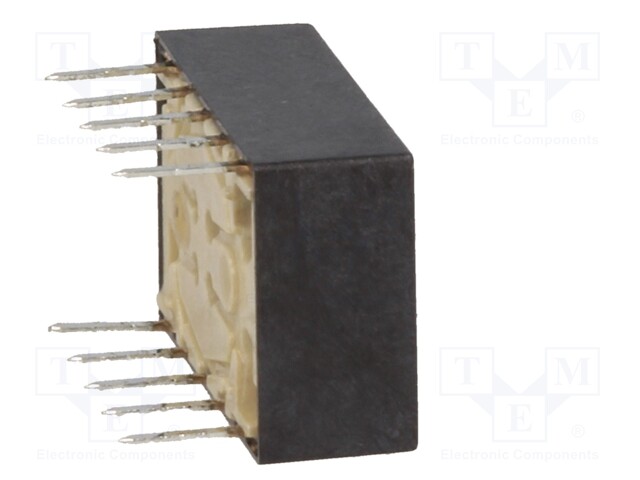

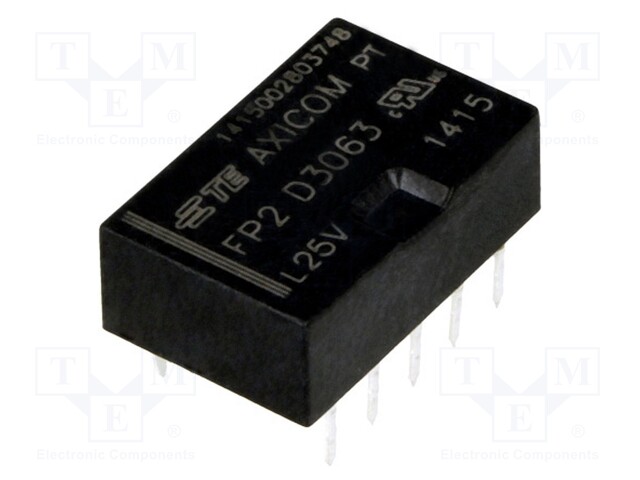

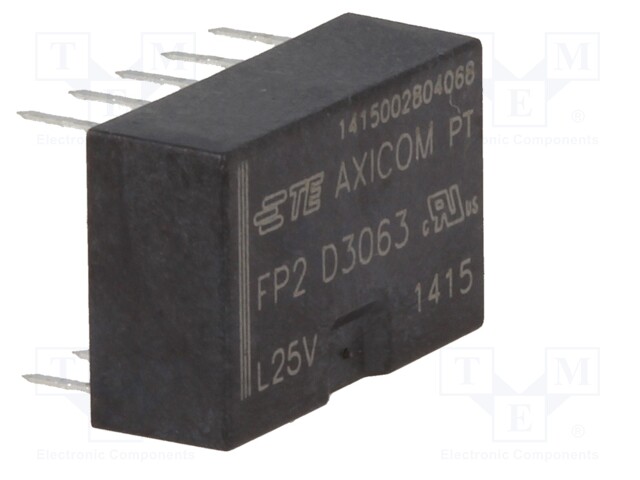

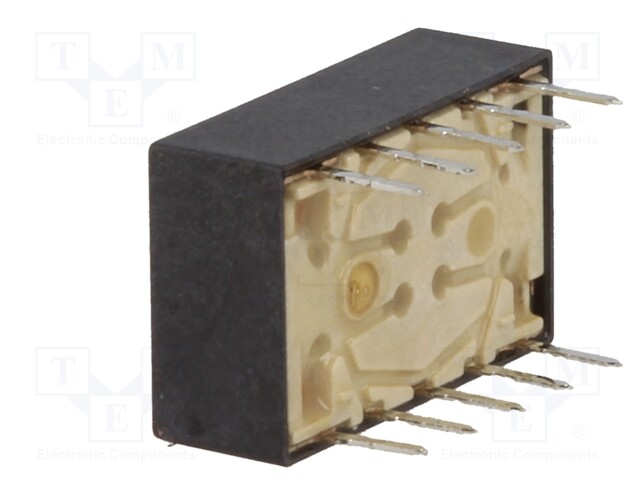

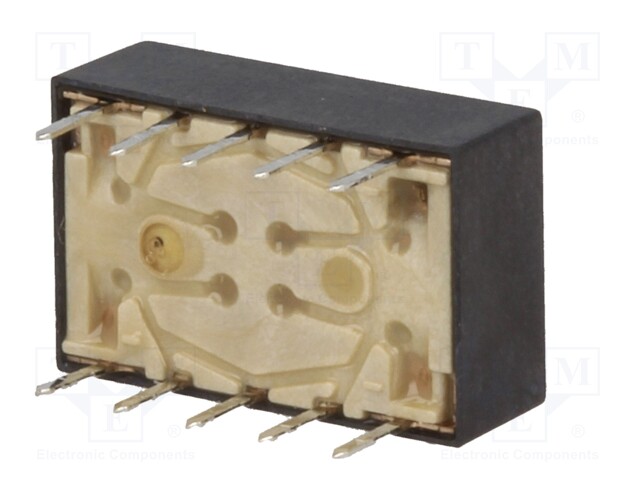

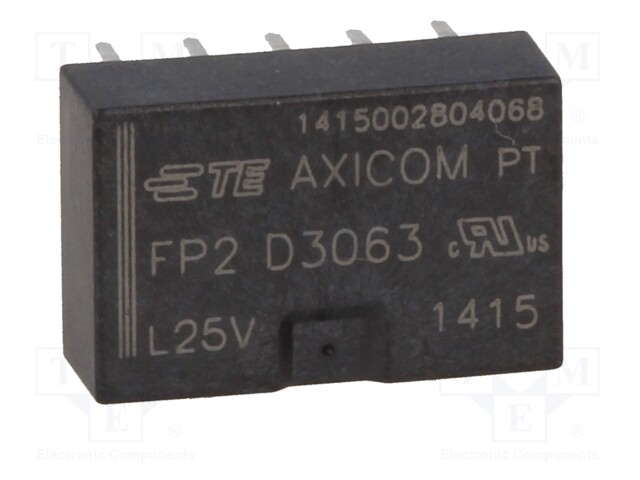

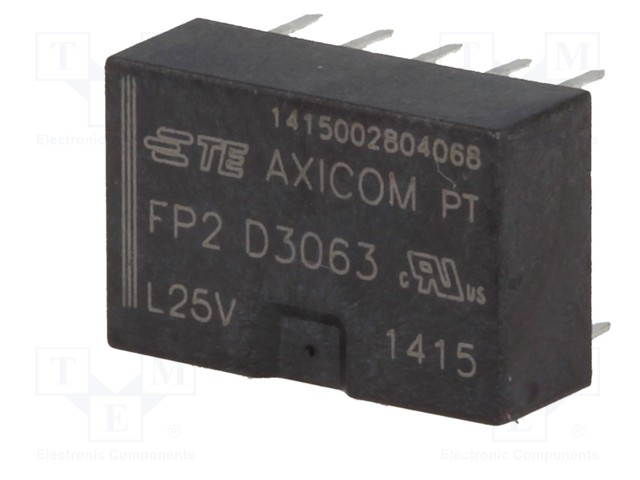

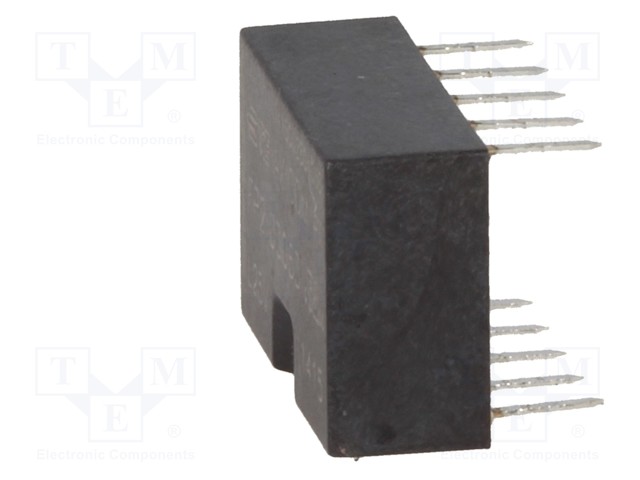

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 4-1462033-9
    Tootja: TE Connectivity
    Tootja tootekood: 4-1462033-9
    • Mounting
    • Operating temperature
    • IP rating
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Terminal pitch 2.54mm
    Body dimensions 14x9x5mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Electrical life 200000cycles
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 59mΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A

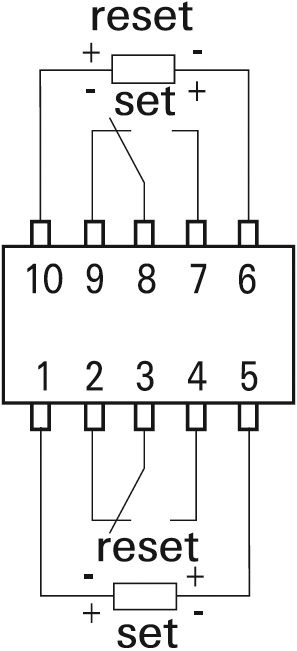

    Relay variant bistable, miniature
    Coil voltage max. 7.2V DC
    Type of relay electromagnetic
    Coil voltage min. 3.2V DC
    Coil power consumption 200mW
    Operate time 3ms
    Release time 3ms
