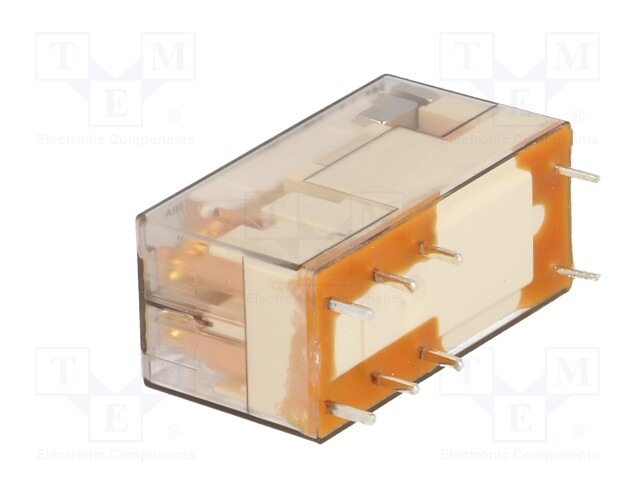

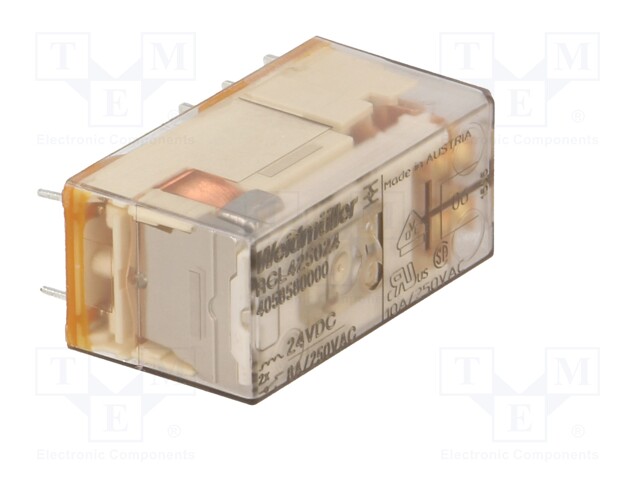

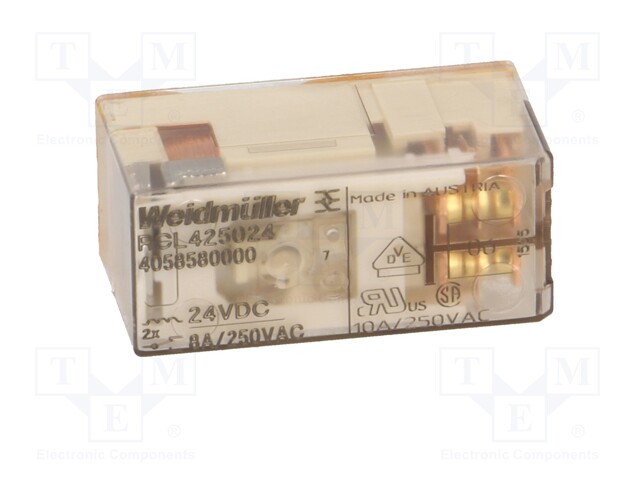

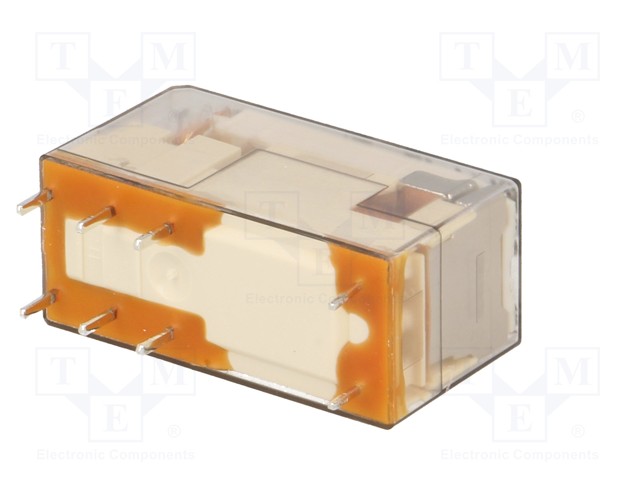

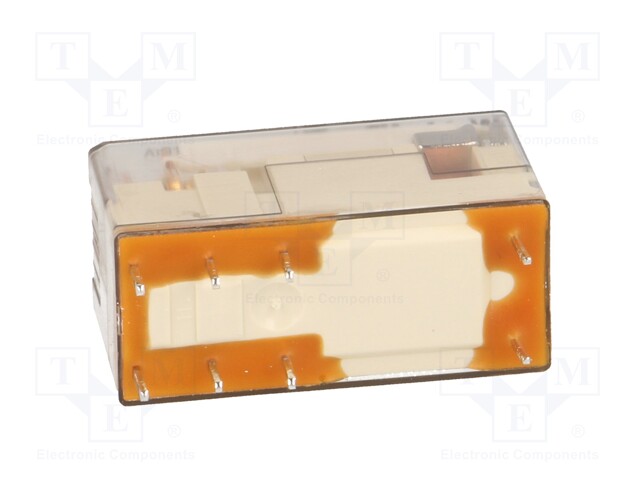

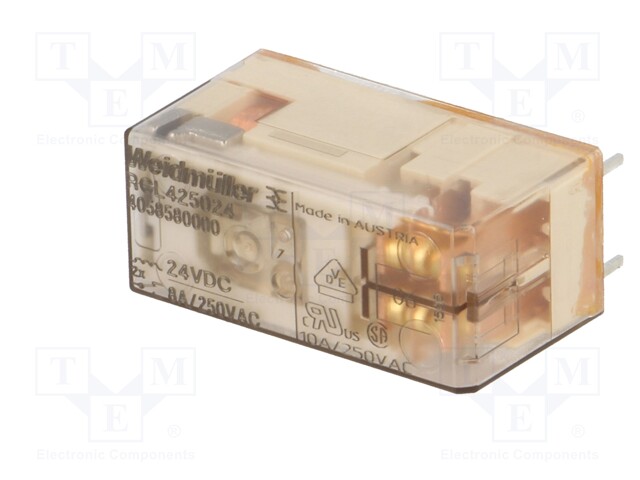

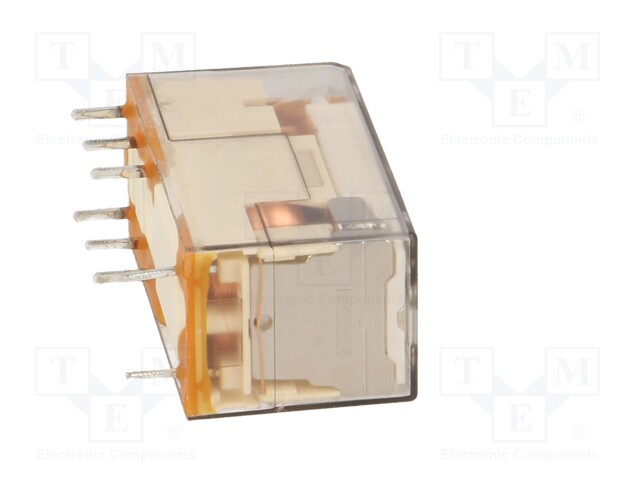

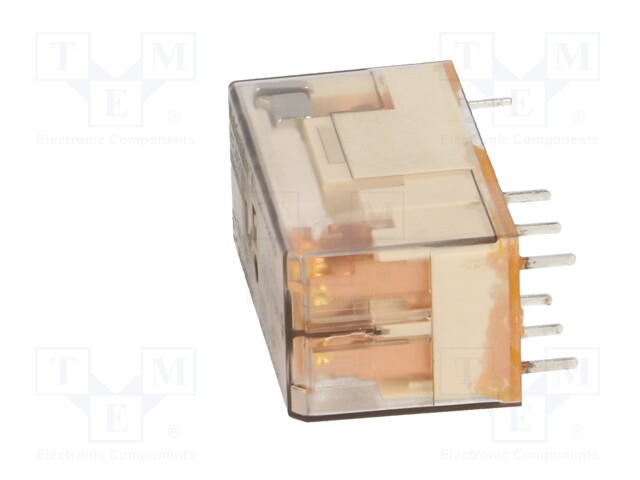

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; max.400VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 4058580000
    Tootja: WEIDMÜLLER
    Tootja tootekood: 4058580000
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    10,71 € 10,71 € (KM-TA) 10.71 EUR

    10,71 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; max.400VAC

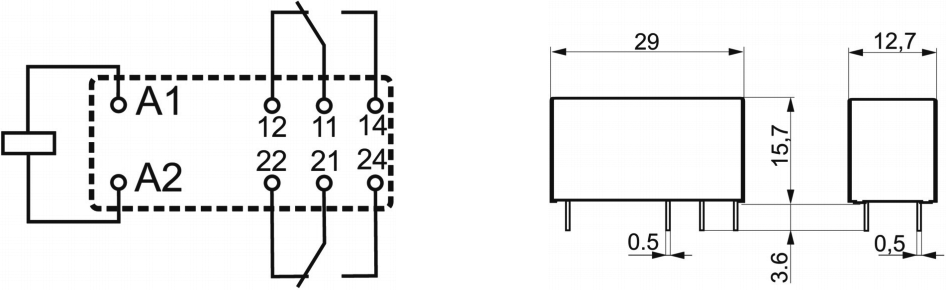

    Mounting PCB, socket
    Operating temperature -40...70°C
    Contact material AgNi/Au 0,5μm
    Terminal pitch 5mm
    Switched voltage ≤ 400V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 8ms
    Release time 6ms
    Coil current 16.7mA
