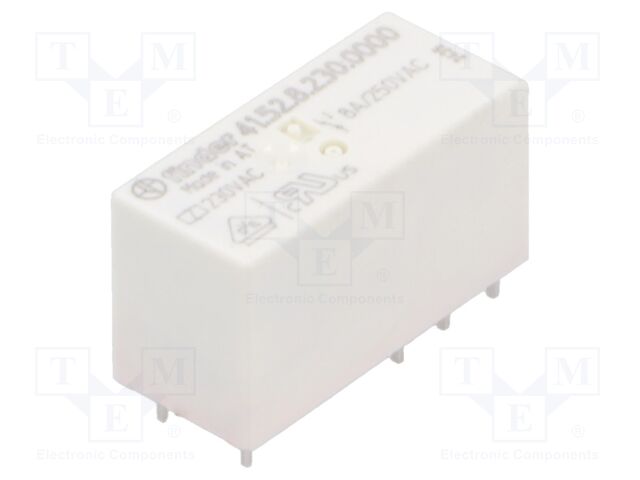

General Purpose Relay, 41 Series, Power, DPDT, 230 VAC, 8 A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 41.52.8.230.0000
    Tootja: FINDER
    Tootja tootekood: 41.52.8.230.0000
    • Mounting
    • Contact material
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    19,77 € 19,77 € (KM-TA) 19.77 EUR

    19,77 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele General Purpose Relay, 41 Series, Power, DPDT, 230 VAC, 8 A

    Mounting PCB
    Contact material AgNi
    Switched voltage ≤ 220V DC, ≤ 400V AC
    Coil resistance 32.5kΩ
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 0.75VA
    Coil current 3.2mA
