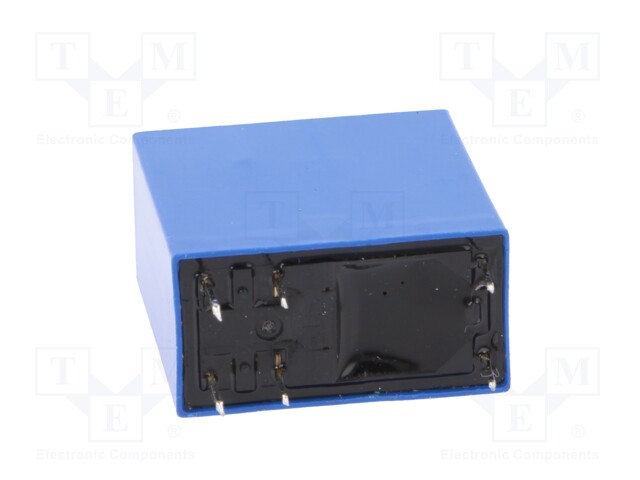

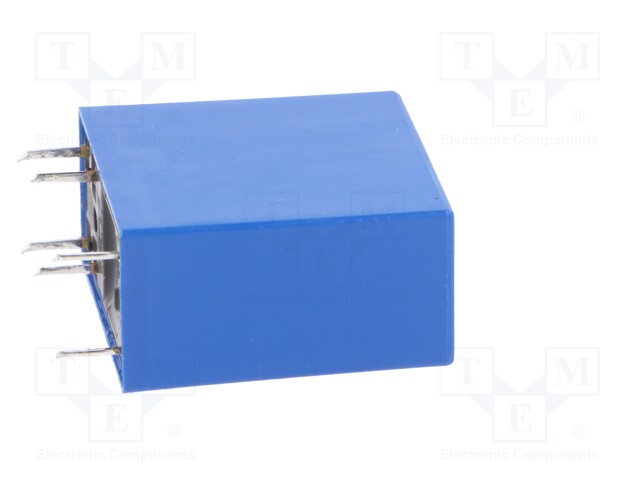

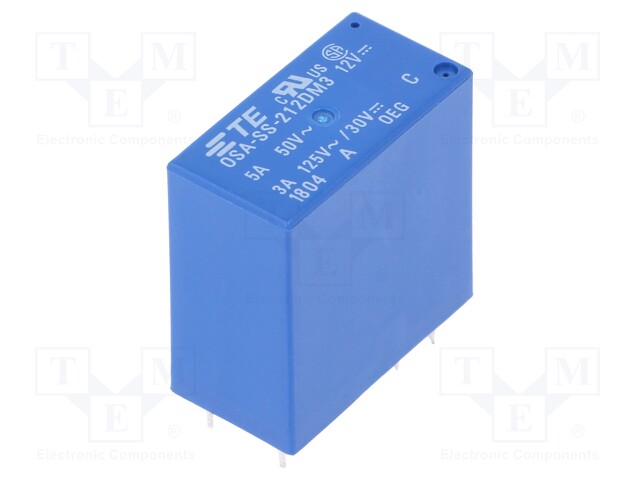

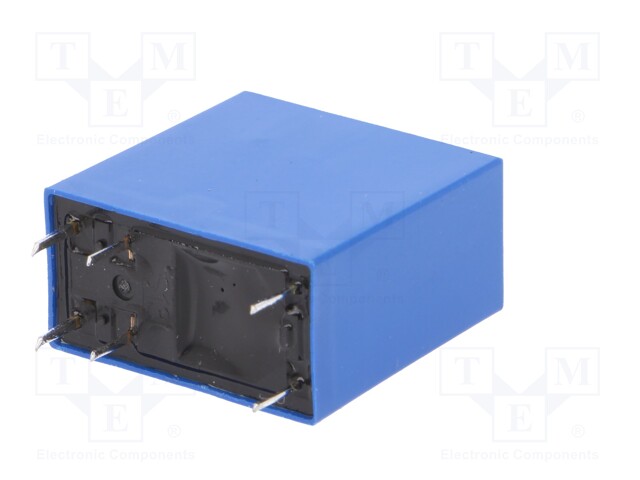

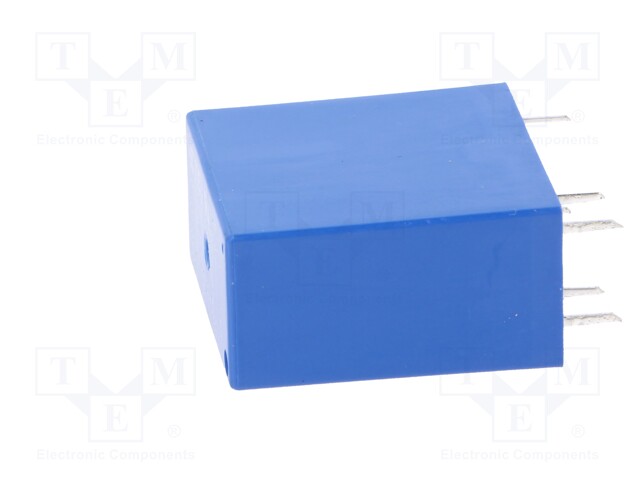

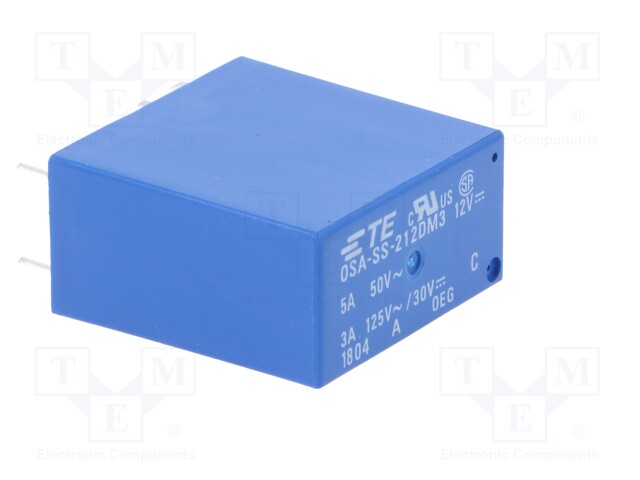

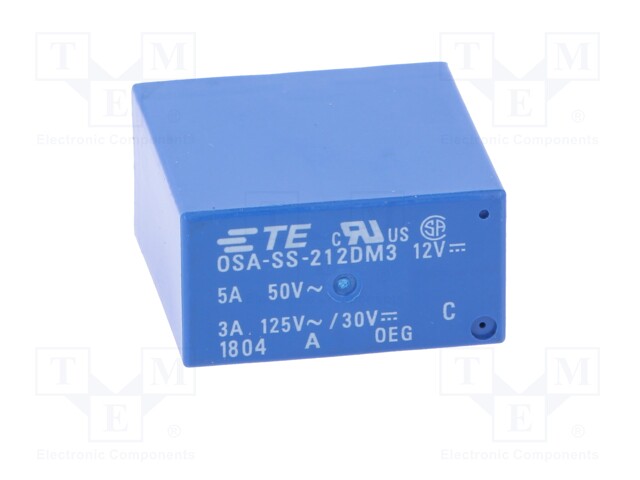

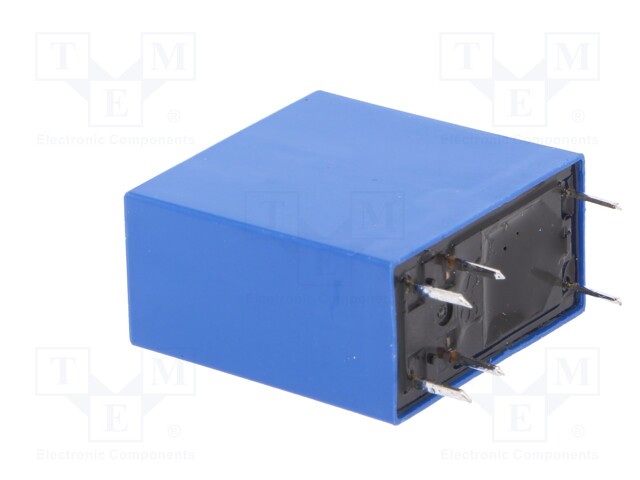

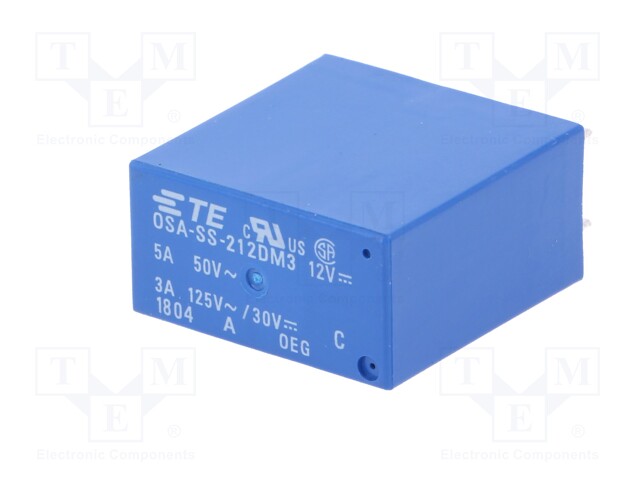

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 3A/240VAC; 3A; 270Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 5-1419124-6
    Tootja: TE Connectivity
    Tootja tootekood: 5-1419124-6
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 3A/240VAC; 3A; 270Ω

    Mounting PCB
    Operating temperature -30...60°C
    Contact material silver alloy
    Terminal pitch 5mm
    Height 24.8mm

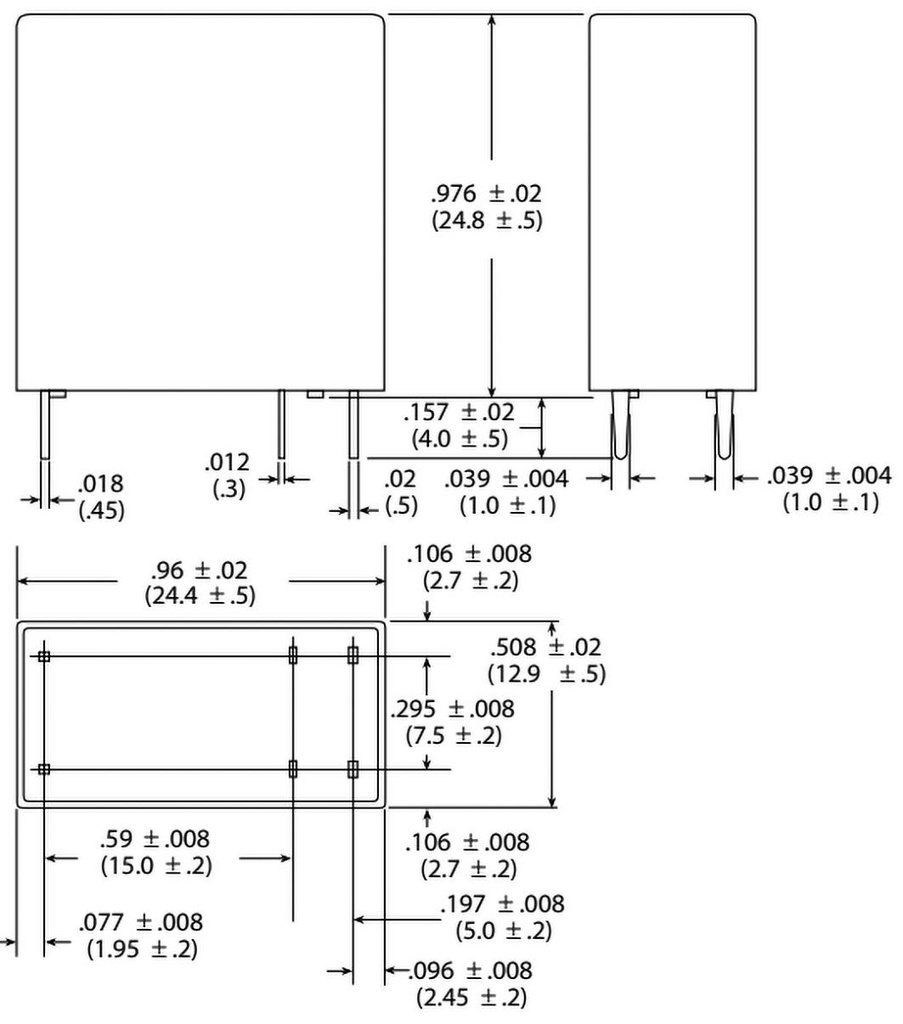

    Body dimensions 24.4x12.9x24.8mm
    Switched voltage ≤ 30V DC, ≤ 240V AC
    Coil resistance 270Ω
    Rated coil voltage 12V DC

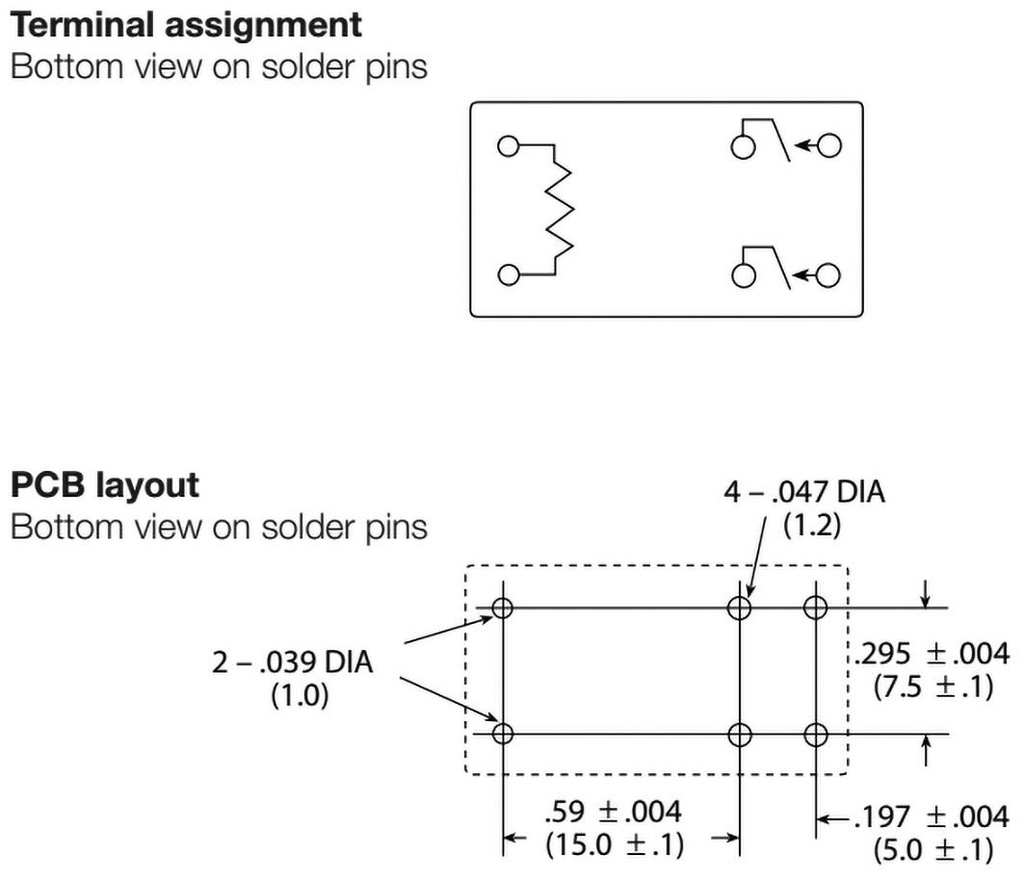

    Contacts configuration DPST-NO
    AC contacts rating @R 3A / 240V AC
    Contact current max. 3A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 540mW
    Operate time 20ms
    Release time 10ms
