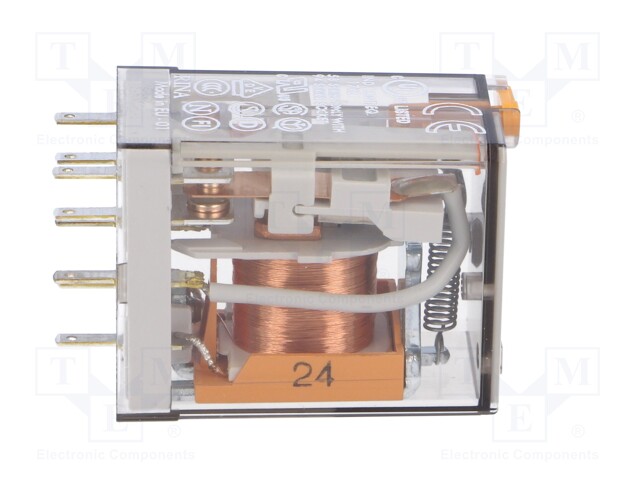

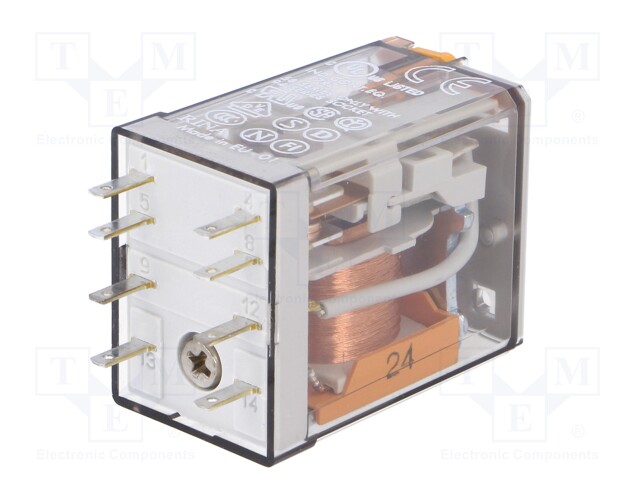

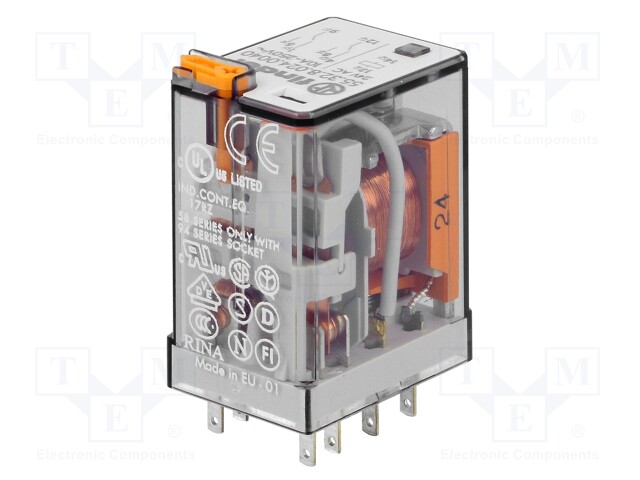

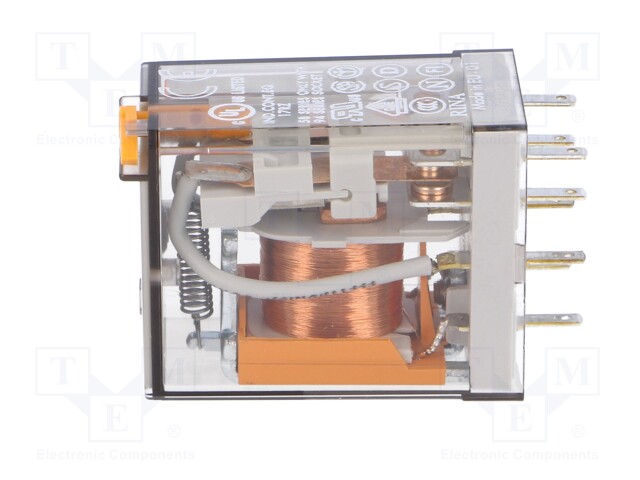

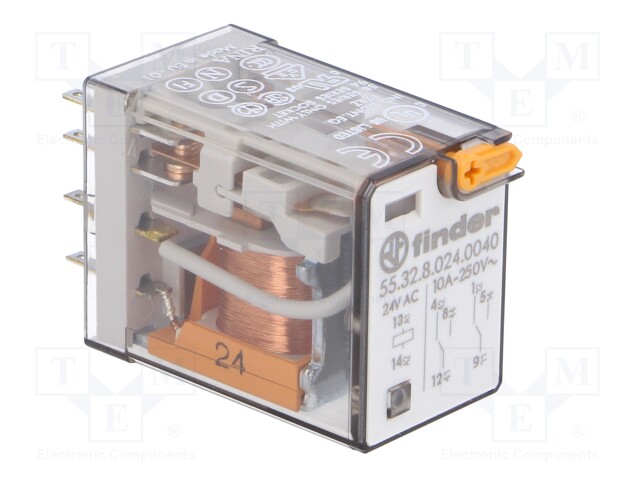

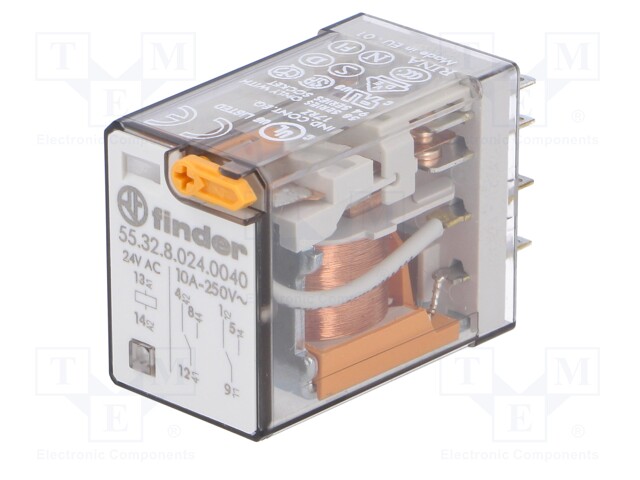

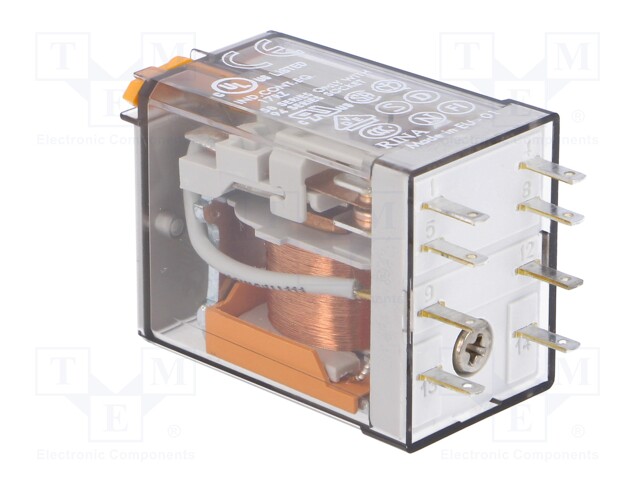

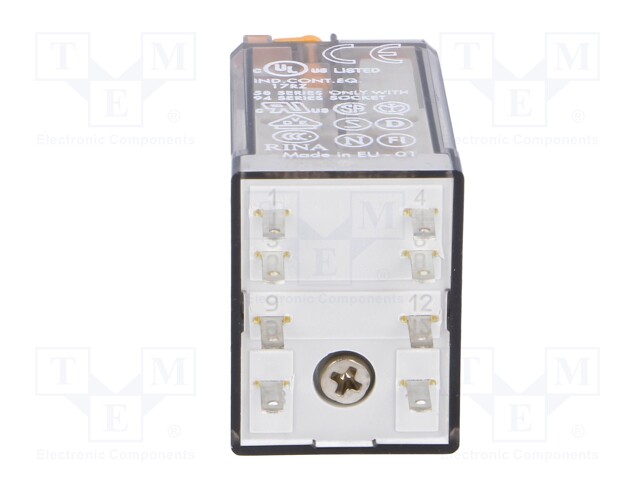

Relay: electromagnetic; DPDT; Ucoil: 24VAC; 10A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 55.32.8.024.0040
    Tootja: FINDER
    Tootja tootekood: 55.32.8.024.0040
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    14,27 € 14,27 € (KM-TA) 14.27 EUR

    14,27 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VAC; 10A/250VAC; 10A/30VDC

    Mounting socket
    Operating temperature -40...85°C
    Contact material AgNi
    Body dimensions 27.7x20.7x35.8mm
    Switched voltage ≤ 220V DC, ≤ 400V AC
    Contacts configuration DPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.5VA
    Coil current 53mA
