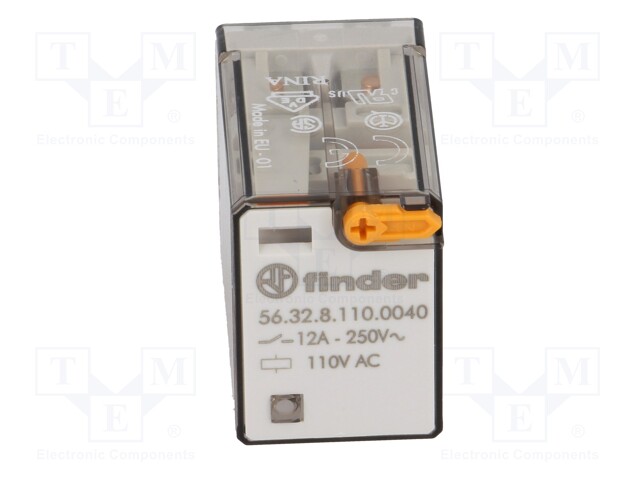

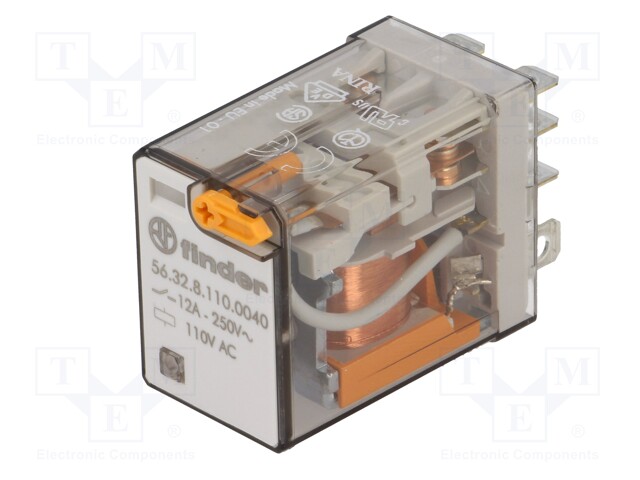

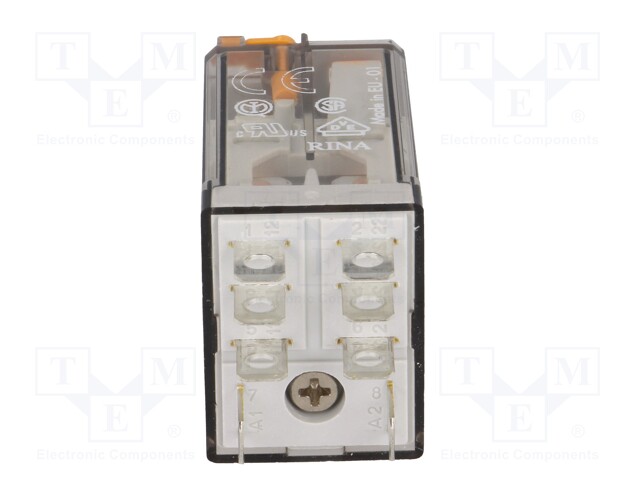

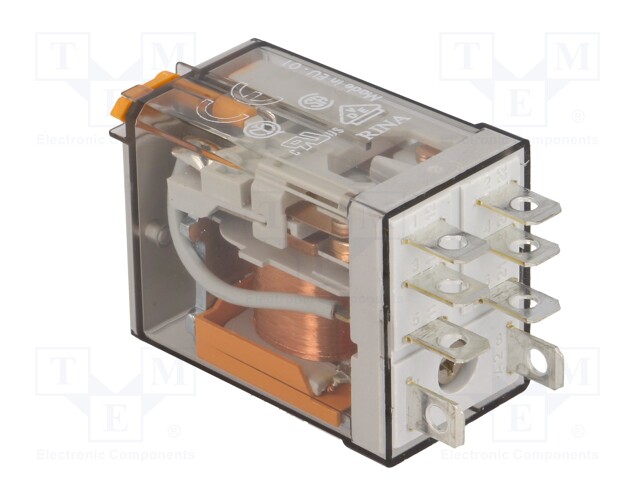

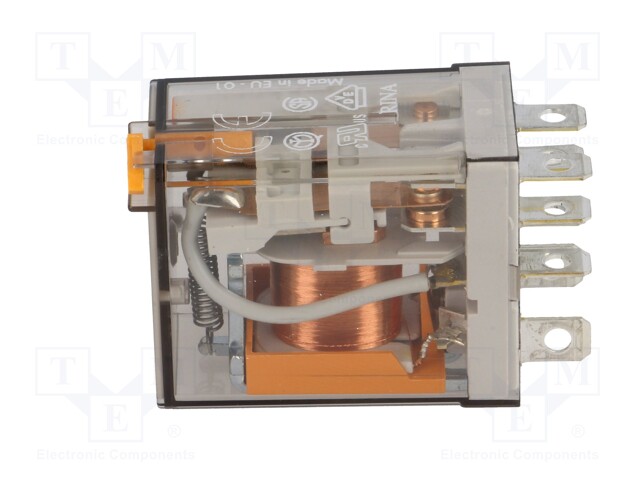

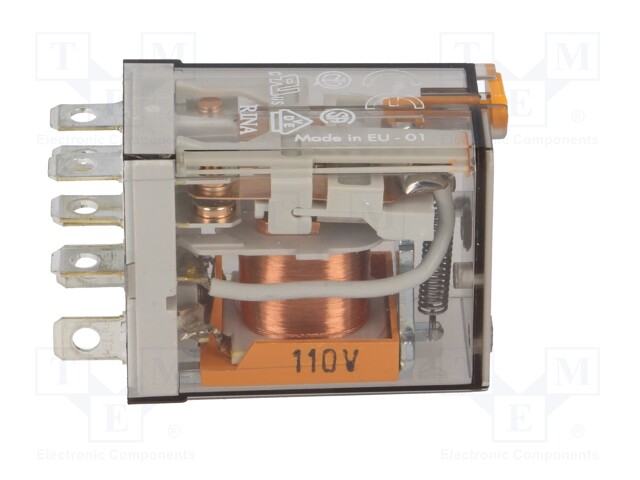

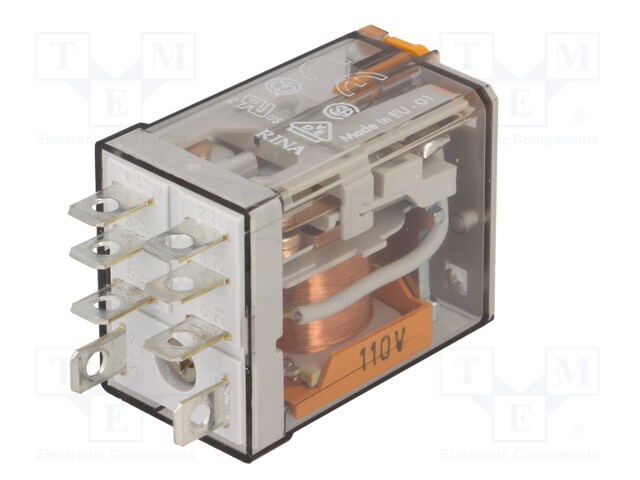

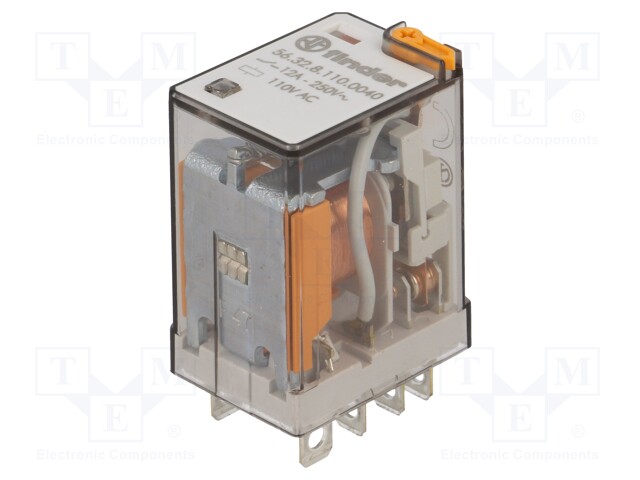

Relay: electromagnetic; DPDT; Ucoil: 110VAC; 12A/250VAC; 12A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 56.32.8.110.0040
    Tootja: FINDER
    Tootja tootekood: 56.32.8.110.0040
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    18,90 € 18,90 € (KM-TA) 18.900000000000002 EUR

    18,90 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 110VAC; 12A/250VAC; 12A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Leads connectors
    Contact material AgNi
    Body dimensions 27.7x20.7x37.7mm
    Switched voltage ≤ 220V DC, ≤ 400V AC
    Coil resistance 3.94kΩ
    Contacts configuration DPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.5VA
    Coil current 12.5mA
