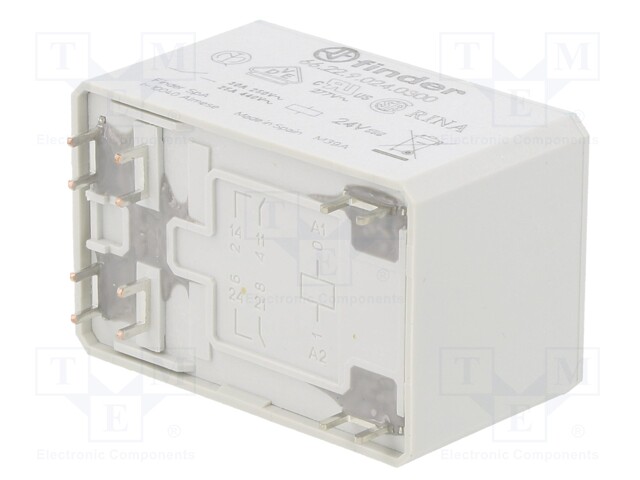

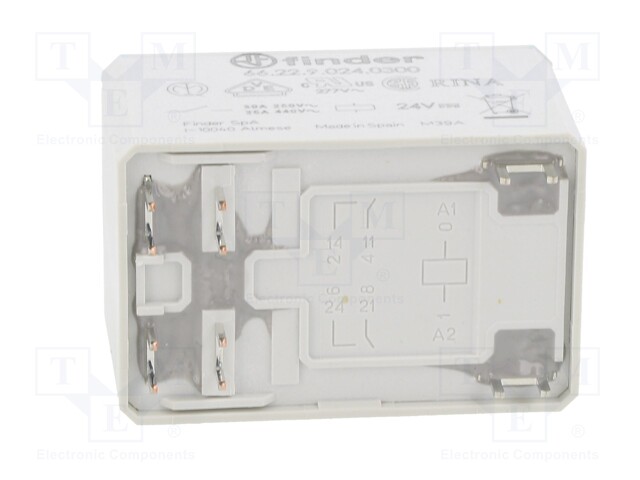

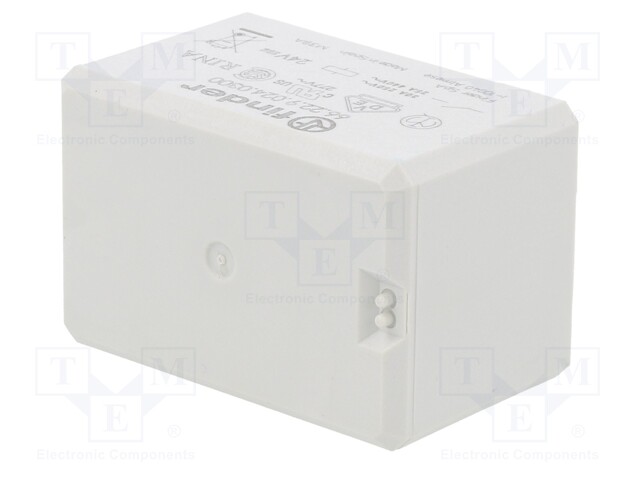

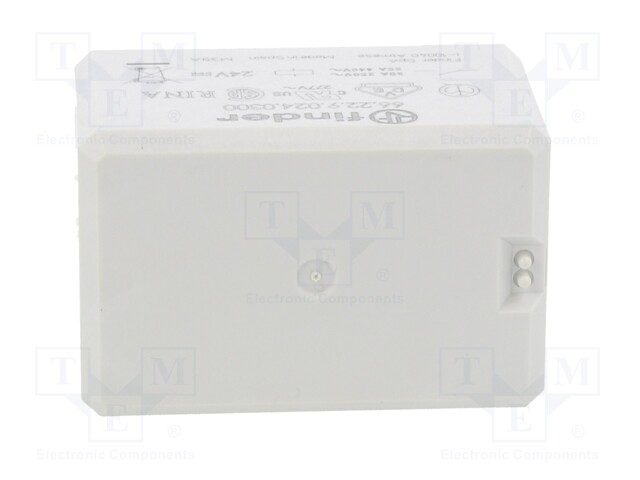

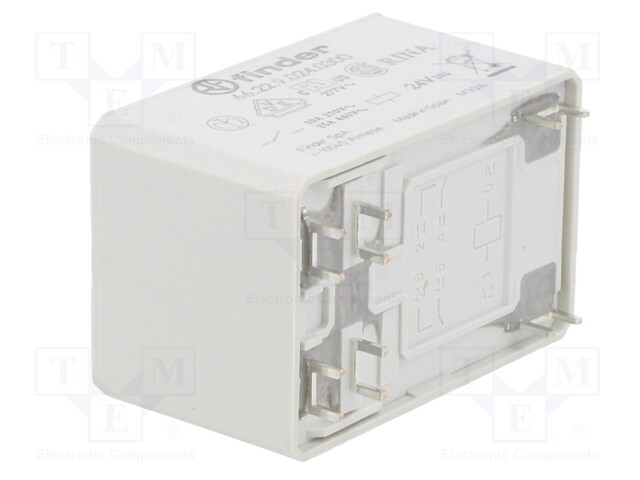

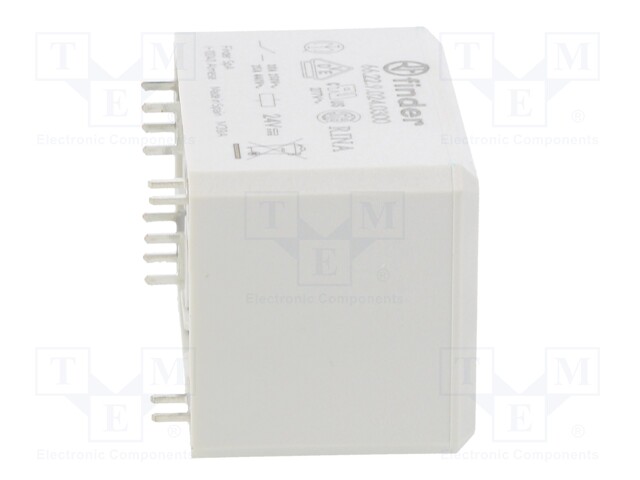

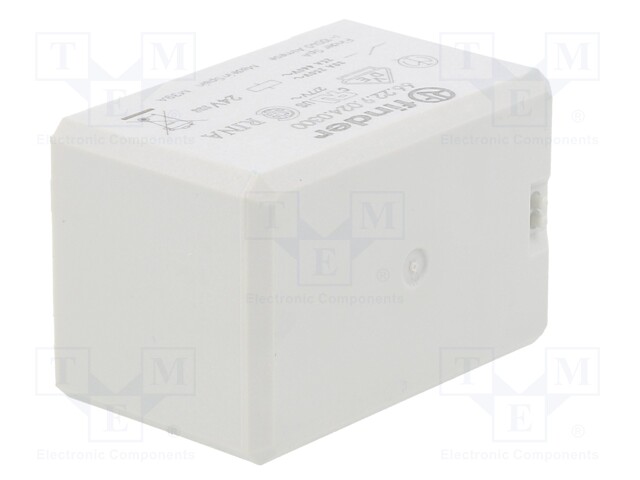

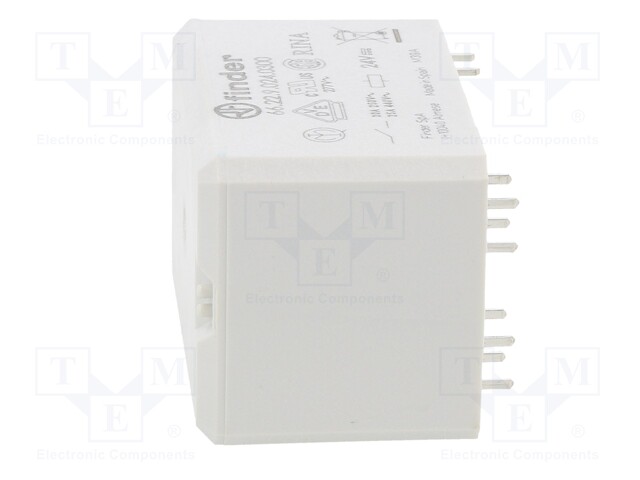

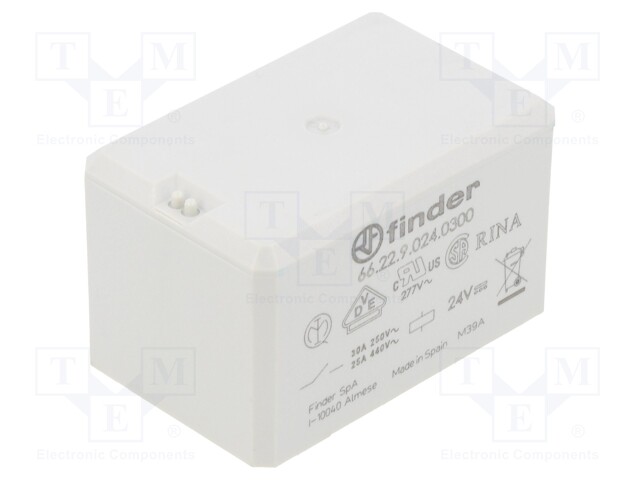

Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; Icontacts max: 30A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 66.22.9.024.0300
    Tootja: FINDER
    Tootja tootekood: 66.22.9.024.0300
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; Icontacts max: 30A

    Mounting PCB
    Operating temperature -40...70°C
    Leads for PCB

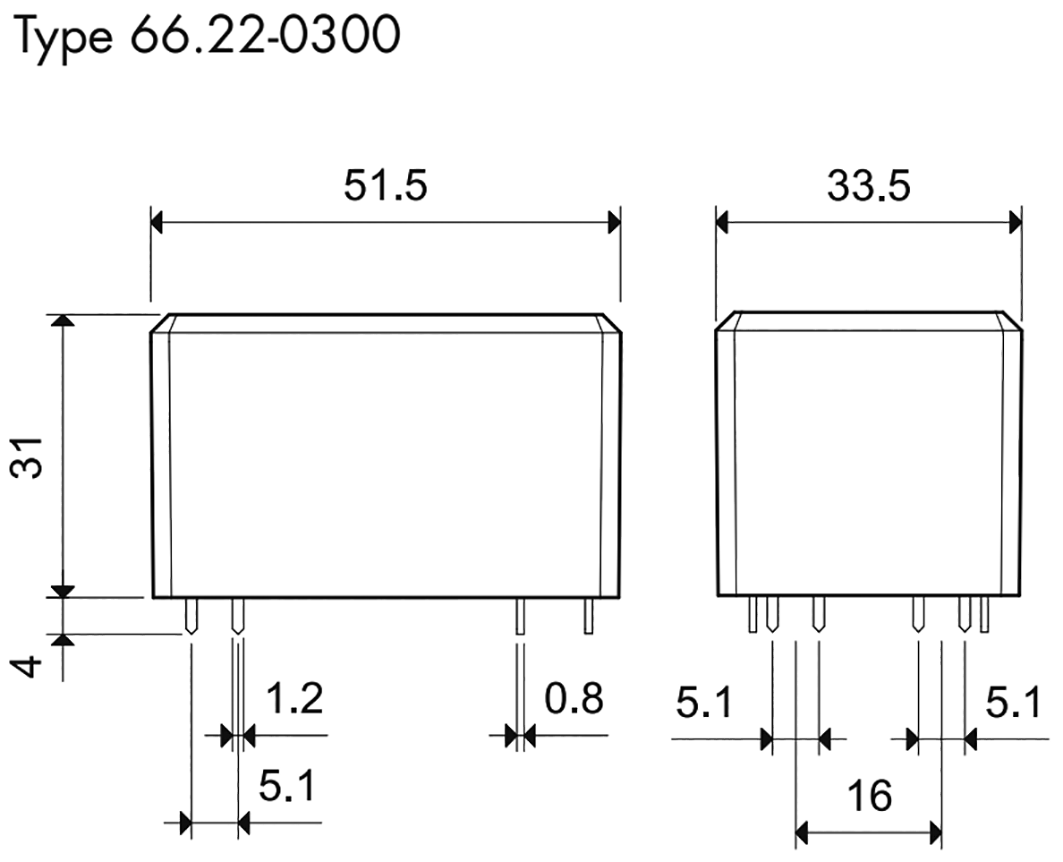

    Body dimensions 51.5x33.5x31mm
    Switched voltage ≤ 220V DC, ≤ 440V AC
    Coil resistance 340Ω
    Rated coil voltage 24V DC

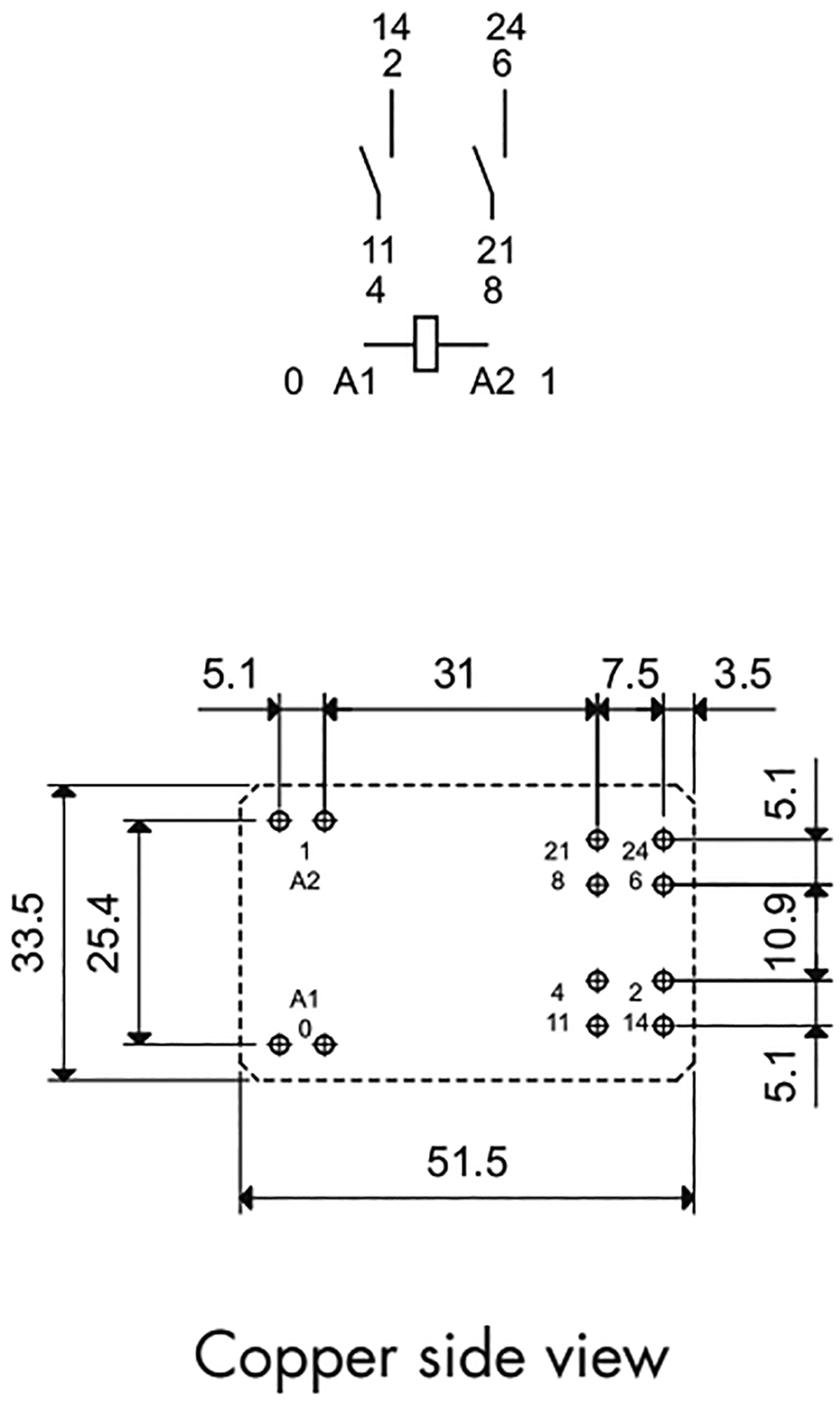

    Contacts configuration DPST-NO
    DC contacts rating @R 30A / 30V DC
    AC contacts rating @R 30A / 250V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil current 70.5mA
