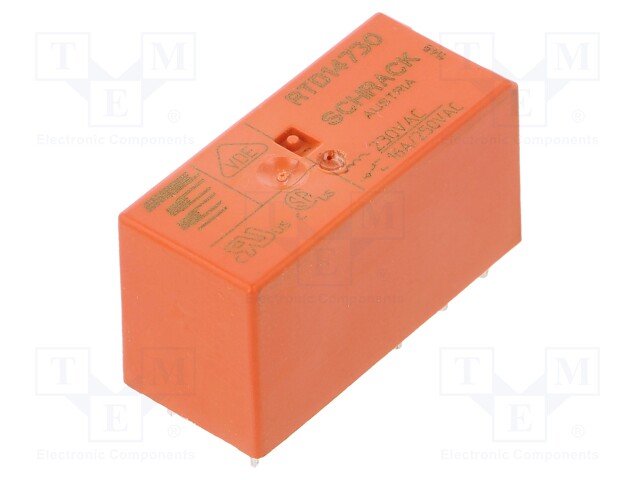

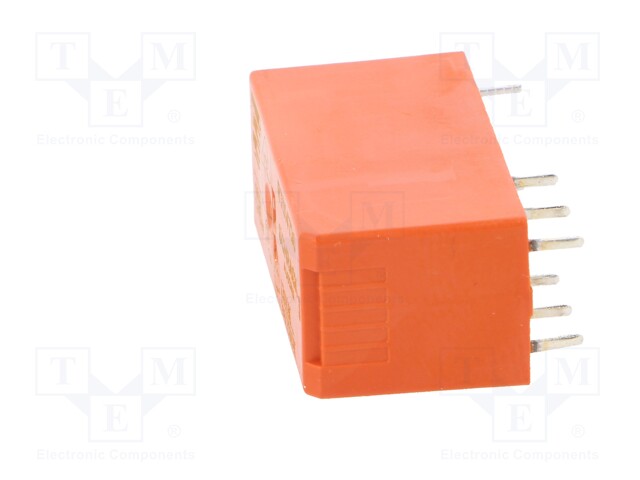

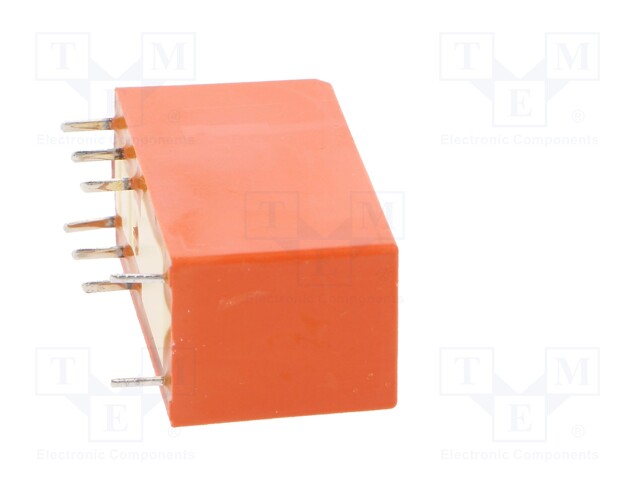

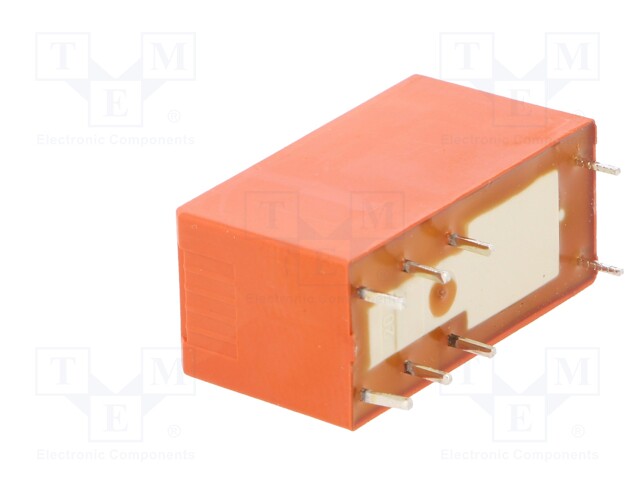

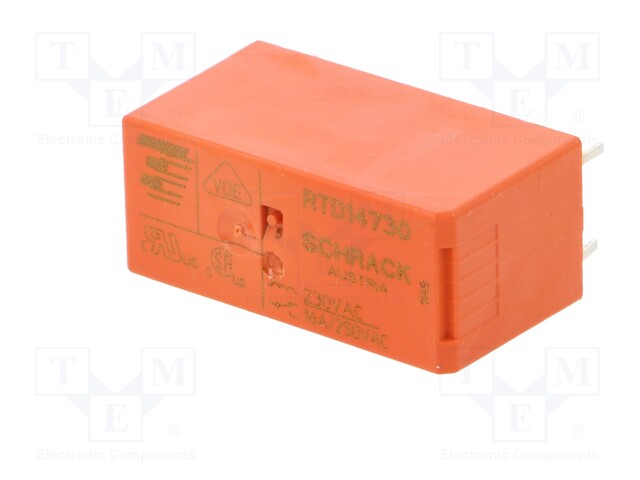

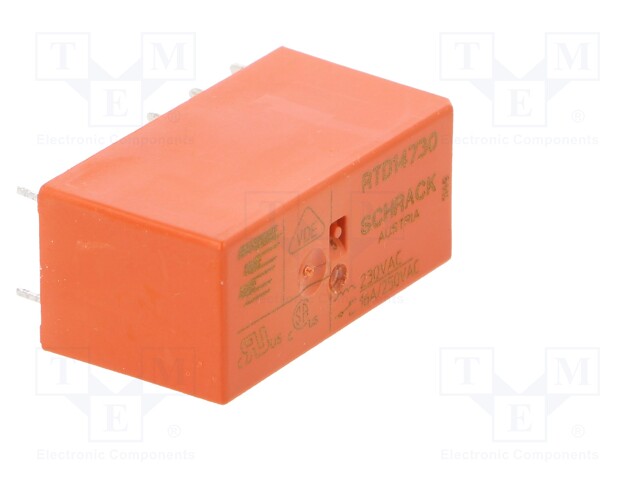

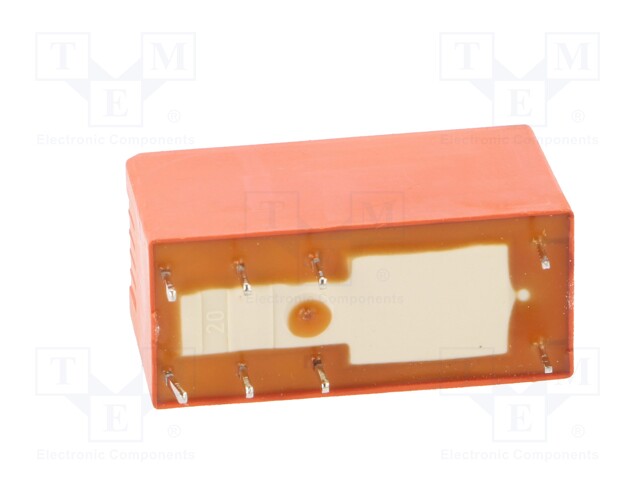

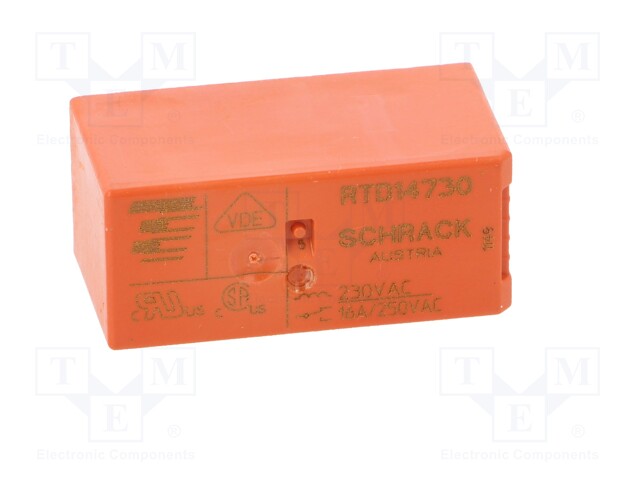

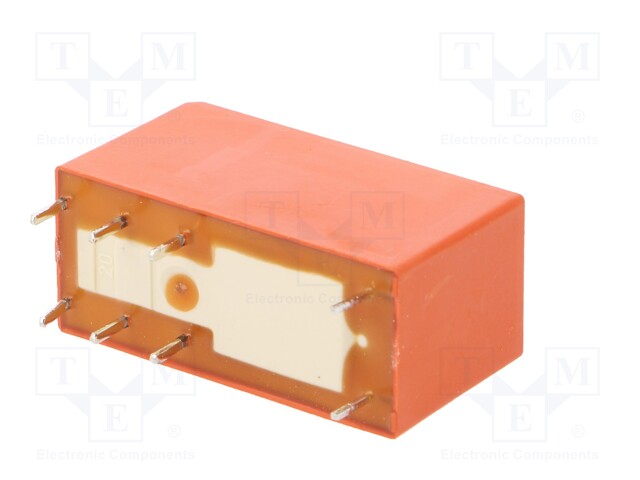

Relay: electromagnetic; SPDT; Ucoil: 230VAC; 16A/250VAC; 16A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 7-1393238-7
    Tootja: TE Connectivity
    Tootja tootekood: 7-1393238-7
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Switching capacity
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    10,53 € 10,53 € (KM-TA) 10.53 EUR

    10,53 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 230VAC; 16A/250VAC; 16A/24VDC

    Mounting THT
    Operating temperature -40...70°C
    IP rating IP67
    Number of pins 8
    Contact material AgNi
    Terminal pitch 5mm
    Height 15.7mm
    Body dimensions 29x15.7x12.7mm
    Mechanical durability 30000000cycles
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Max surge current 25A
    Switching capacity 3kVA
    Coil resistance 32.5kΩ
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 740mVA
