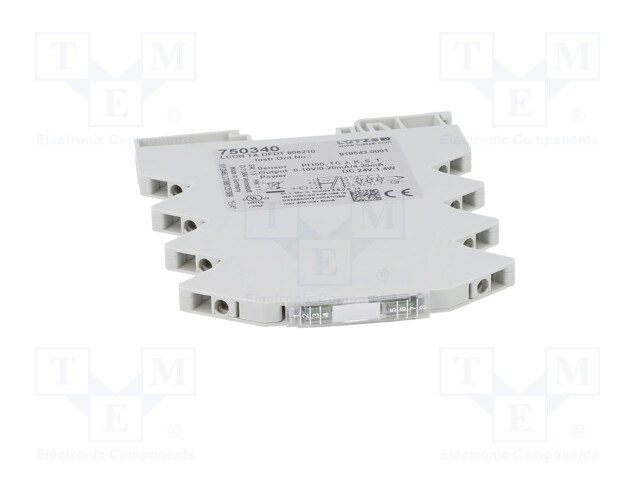

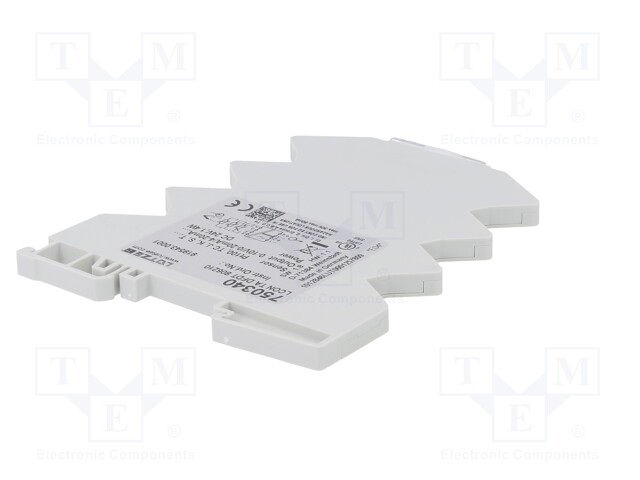

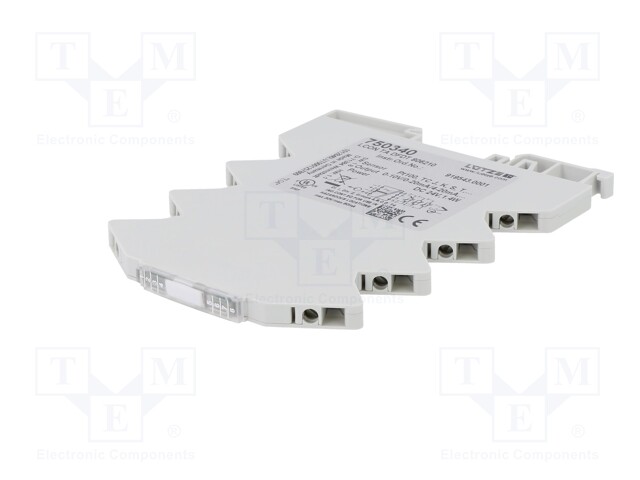

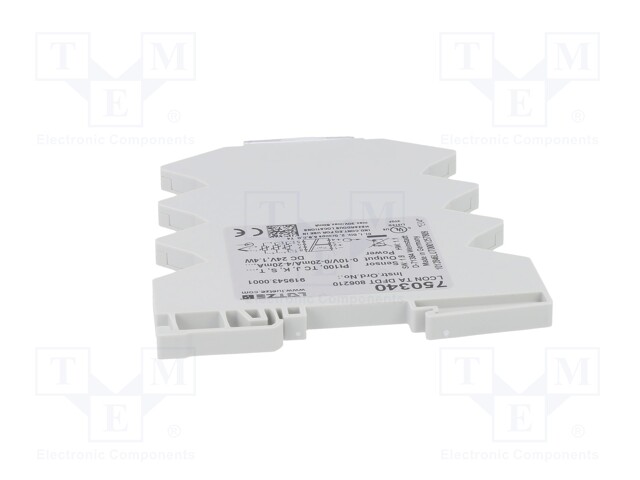

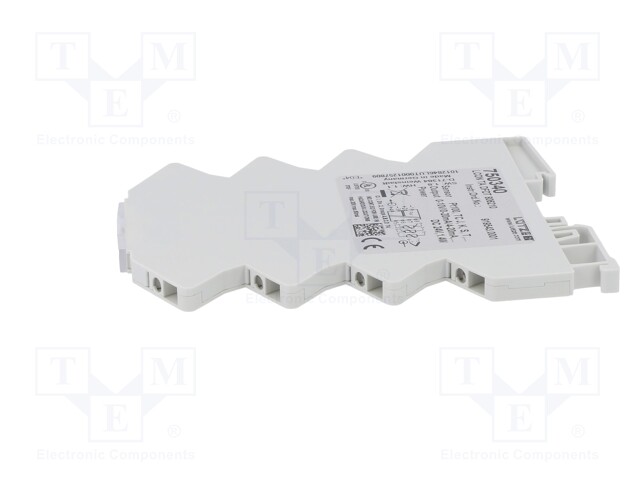

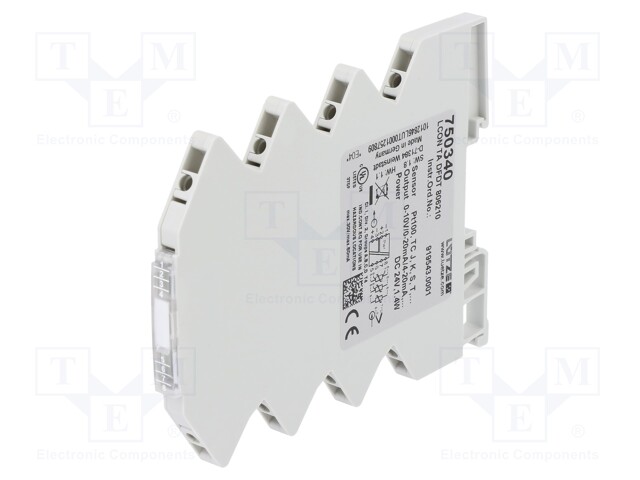

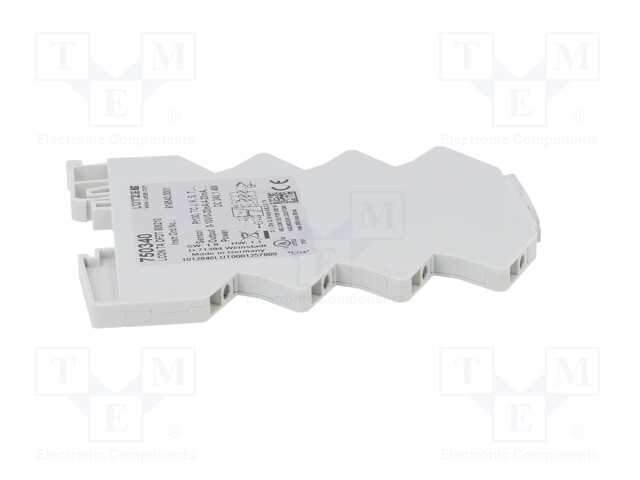

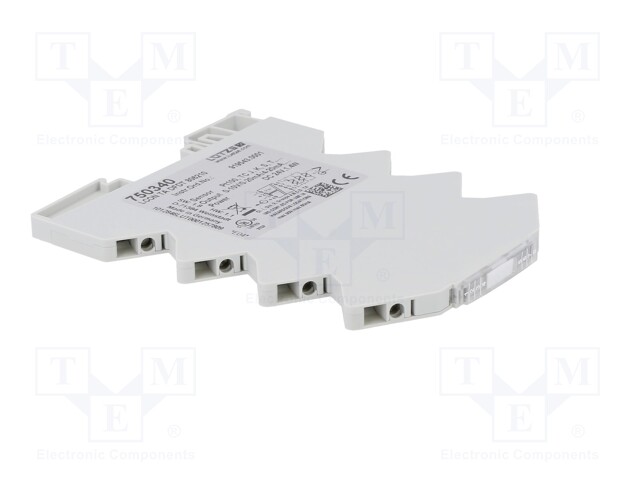

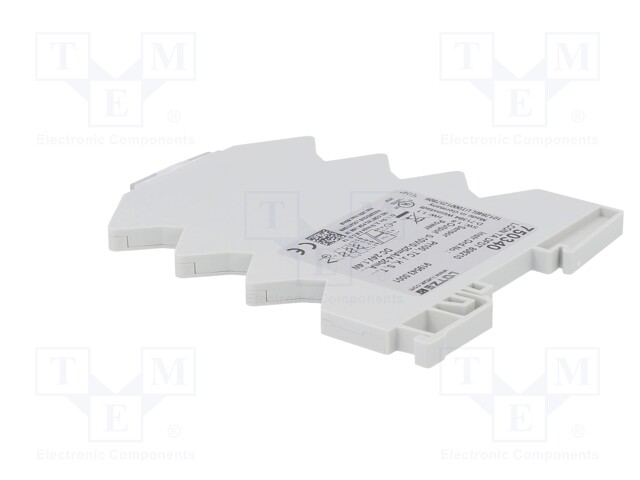

Converter: temperature; Usup: 24VDC; 6.2x90x115.5mm; Mounting: DIN
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
750340
Tootja: LÜTZE
Tootja tootekood: 750340
Product downloads
Spetsifikatsioon tootele Converter: temperature; Usup: 24VDC; 6.2x90x115.5mm; Mounting: DIN
| Mounting | for DIN rail mounting |
| Supply voltage | 24V DC |
| Operating voltage | 16.8...30V DC |
| Operating temperature | -40...70°C |
| IP rating | IP20 |
| Type of converter | temperature |
| Protection | short circuit protection, anti-overvoltage |
| Leads | screw terminals |
| Series | LCIS |
| Body dimensions | 6.2x90x115.5mm |
| Additional functions | inputs / outputs / power supply galvanic insulation, LED status indicator |
| Insulation voltage | 2.5kV |
| Kind of input 1 | Pt100, Pt1000, RTD, thermocouple B, thermocouple C, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | temperature |
| Kind of output 1 | 0...10V, 0...20mA, 4...20mA, -10...+10V |
| The programming method | DIP-SWITCH |
| Input 1 properties | 3 wires connection |
