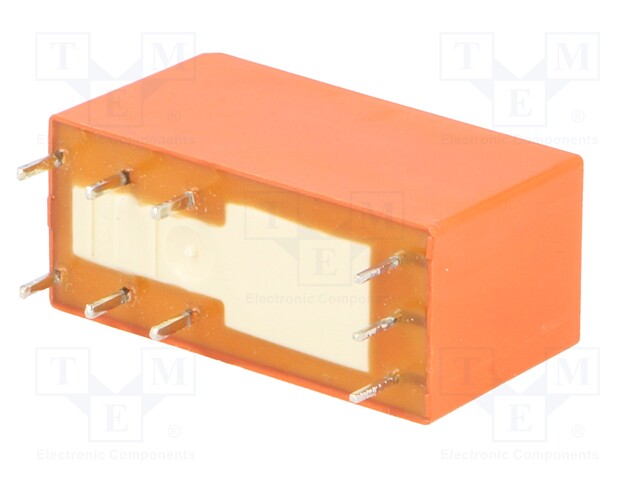

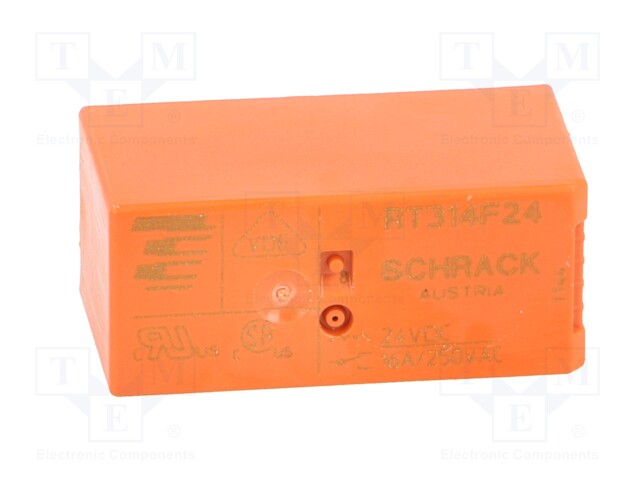

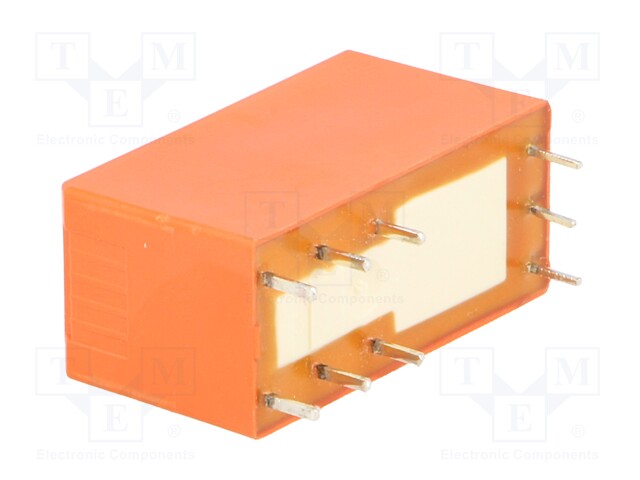

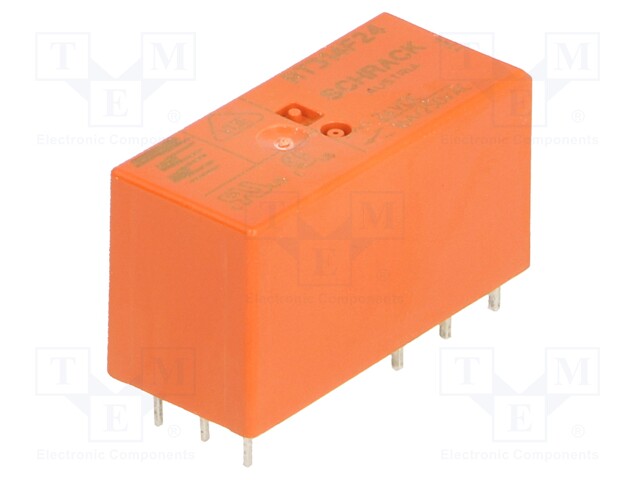

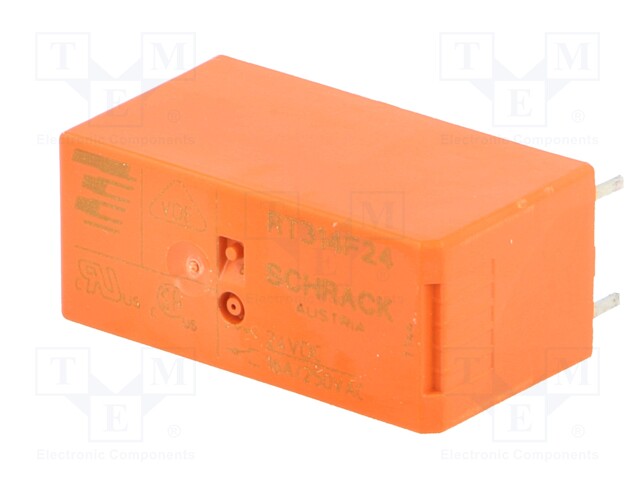

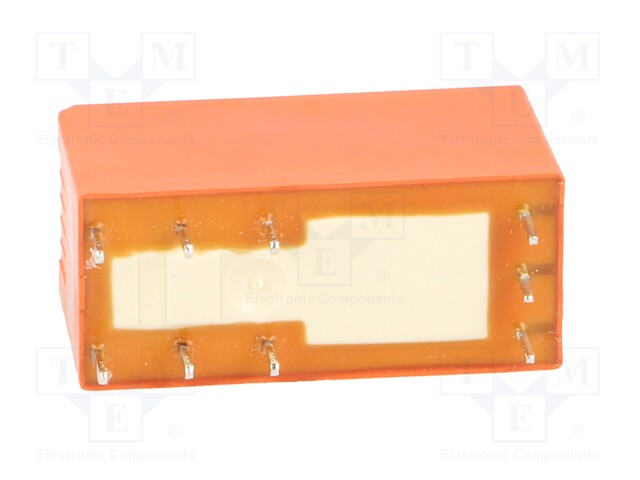

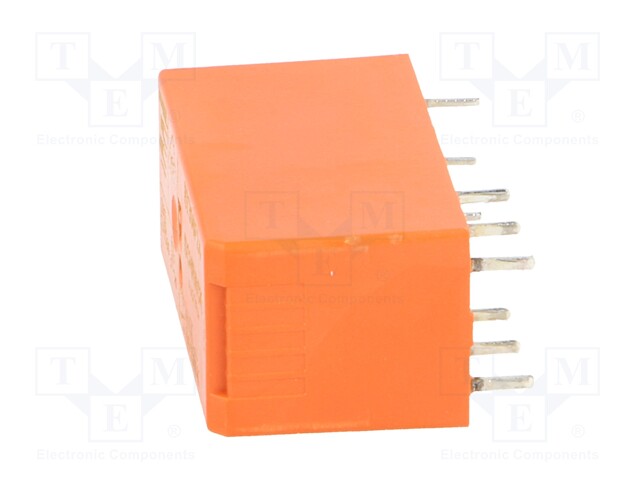

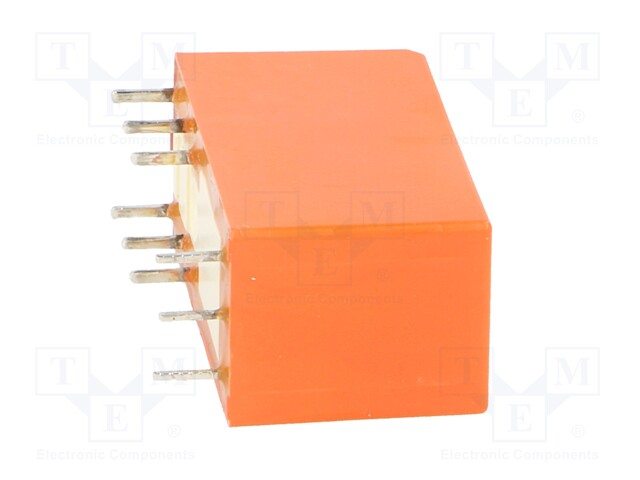

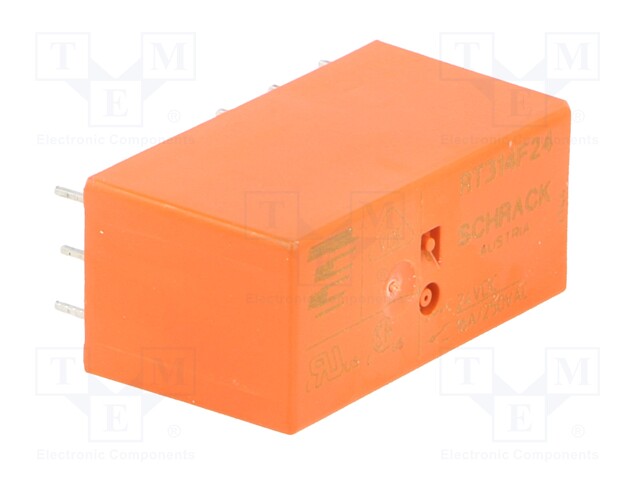

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 8-1393239-8
    Tootja: TE Connectivity
    Tootja tootekood: 8-1393239-8
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption

    7,07 € 7,07 € (KM-TA) 7.07 EUR

    7,07 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/24VDC

    Mounting THT
    Operating temperature -40...85°C
    IP rating IP40
    Number of pins 9
    Contact material AgNi 90/10

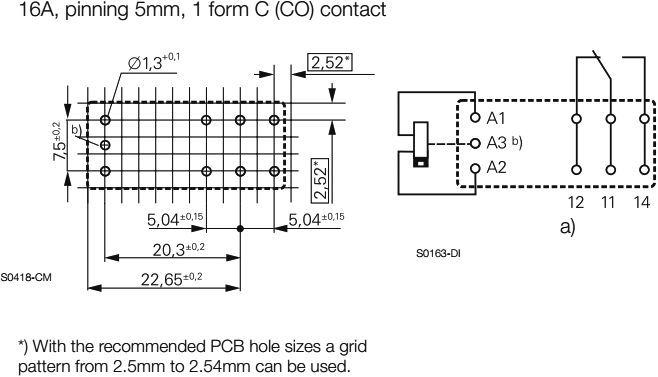

    Terminal pitch 5mm
    Height 15.7mm

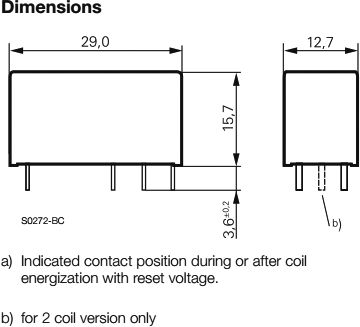

    Body dimensions 29x15.7x12.7mm
    Mechanical durability 5000000cycles
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Max surge current 30A
    Switching capacity 4kVA
    Coil resistance 886Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant bistable, miniature
    Type of relay electromagnetic
    Coil power consumption 650mW
