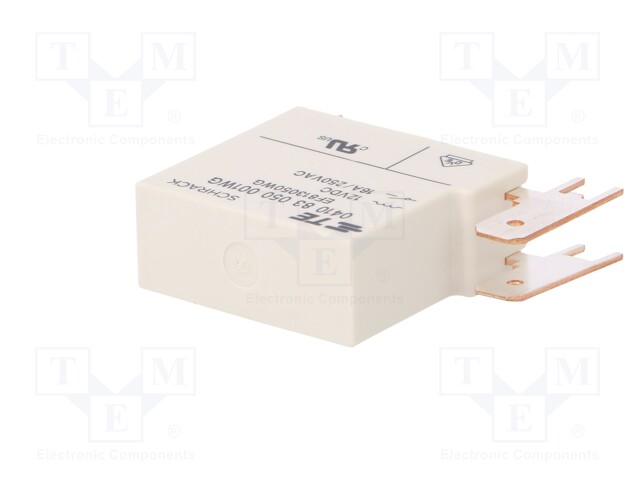

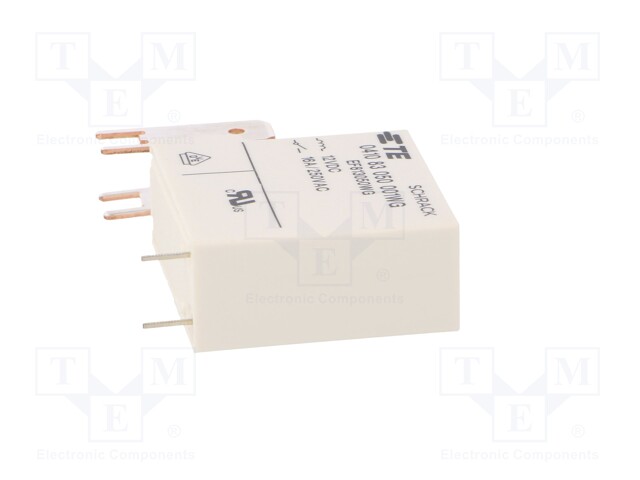

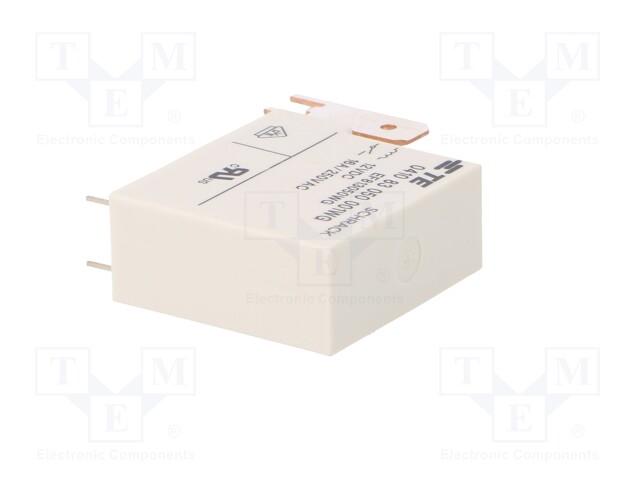

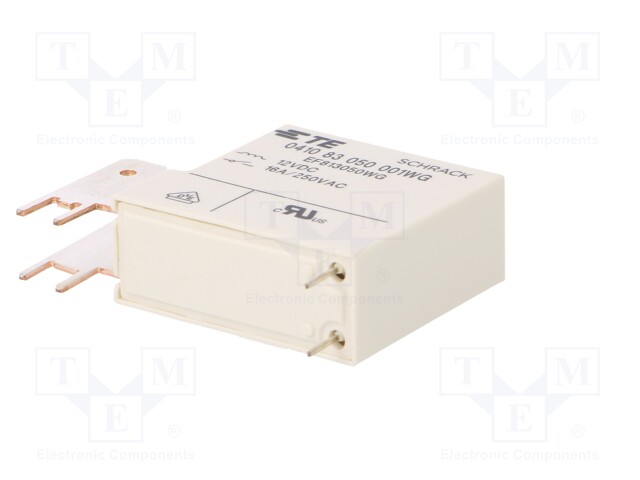

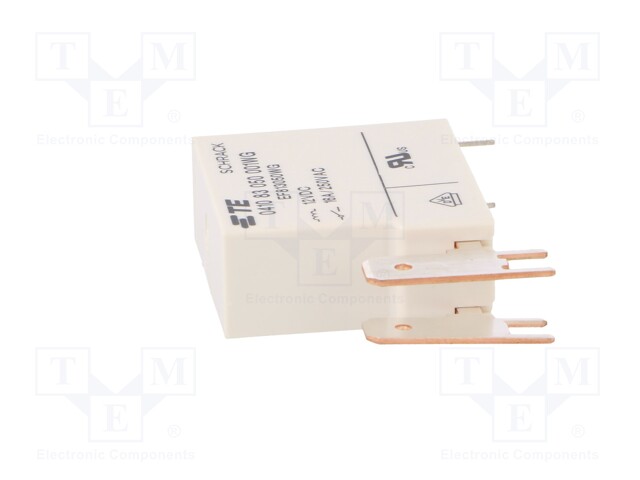

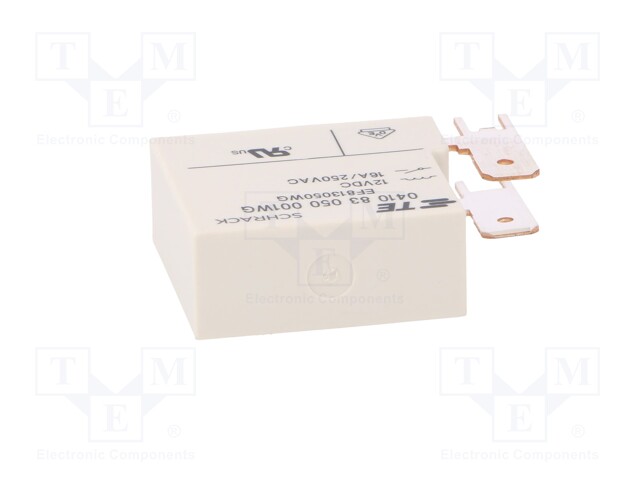

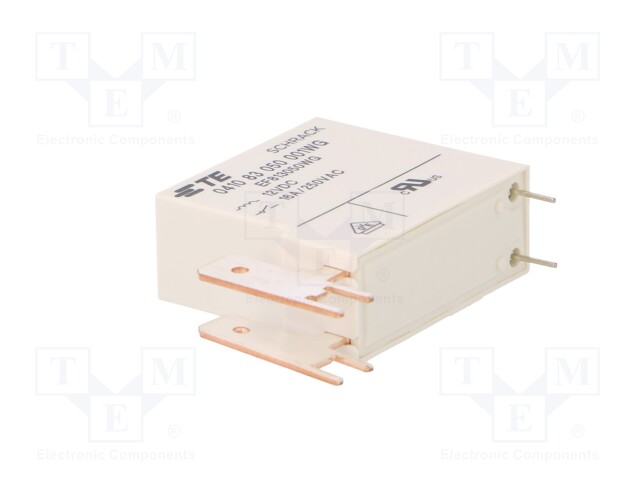

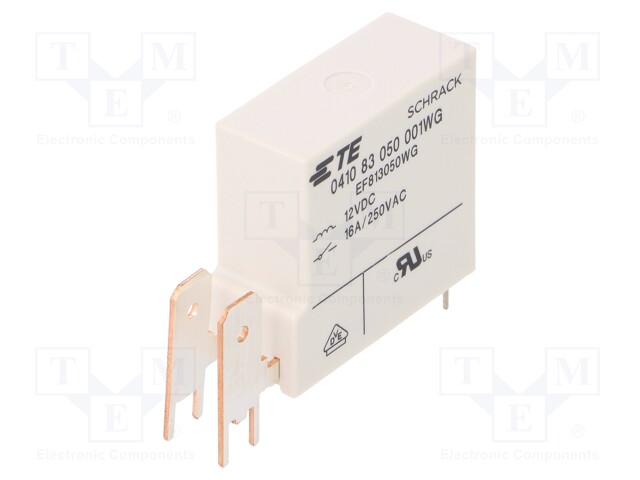

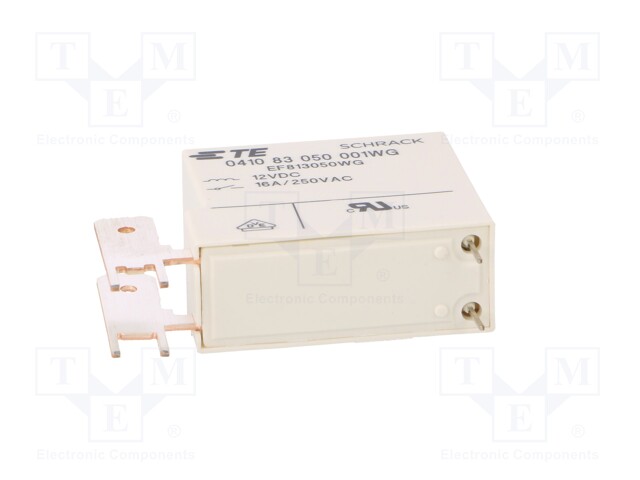

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 16A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 8-1415536-7
    Tootja: TE Connectivity
    Tootja tootekood: 8-1415536-7
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    15,88 € 15,88 € (KM-TA) 15.88 EUR

    15,88 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 16A

    Mounting PCB
    Operating temperature -20...85°C
    Contact material AgNi

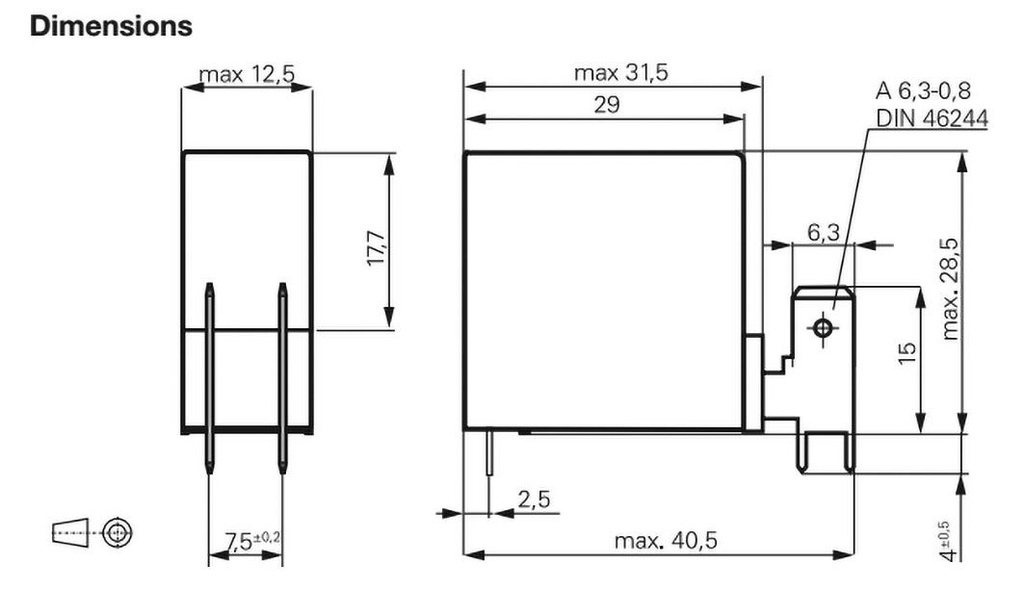

    Body dimensions 40.5x12.5x28.5mm
    Switched voltage ≤ 400V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 7.9V DC
    Coil power consumption 360mW
