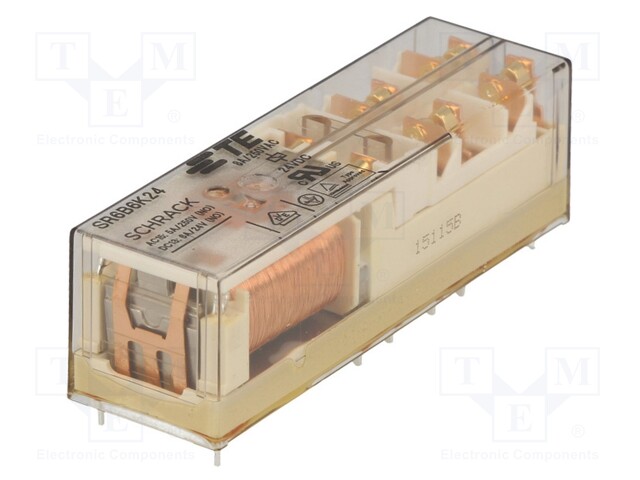

Relay: electromagnetic; NC x2 + NO x4; Ucoil: 24VDC; 8A; safety

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 8-1415537-0
    Tootja: TE Connectivity
    Tootja tootekood: 8-1415537-0
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.

    26,38 € 26,38 € (KM-TA) 26.38 EUR

    26,38 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; NC x2 + NO x4; Ucoil: 24VDC; 8A; safety

    Mounting THT
    Operating temperature -25...70°C
    Contact material AgSnO<sub>2</sub>/Au

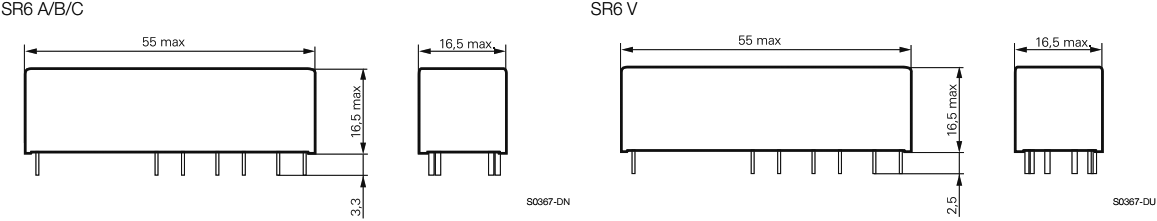

    Body dimensions 55x16.5x16.5mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 400V AC
    Coil resistance 720Ω
    Rated coil voltage 24V DC

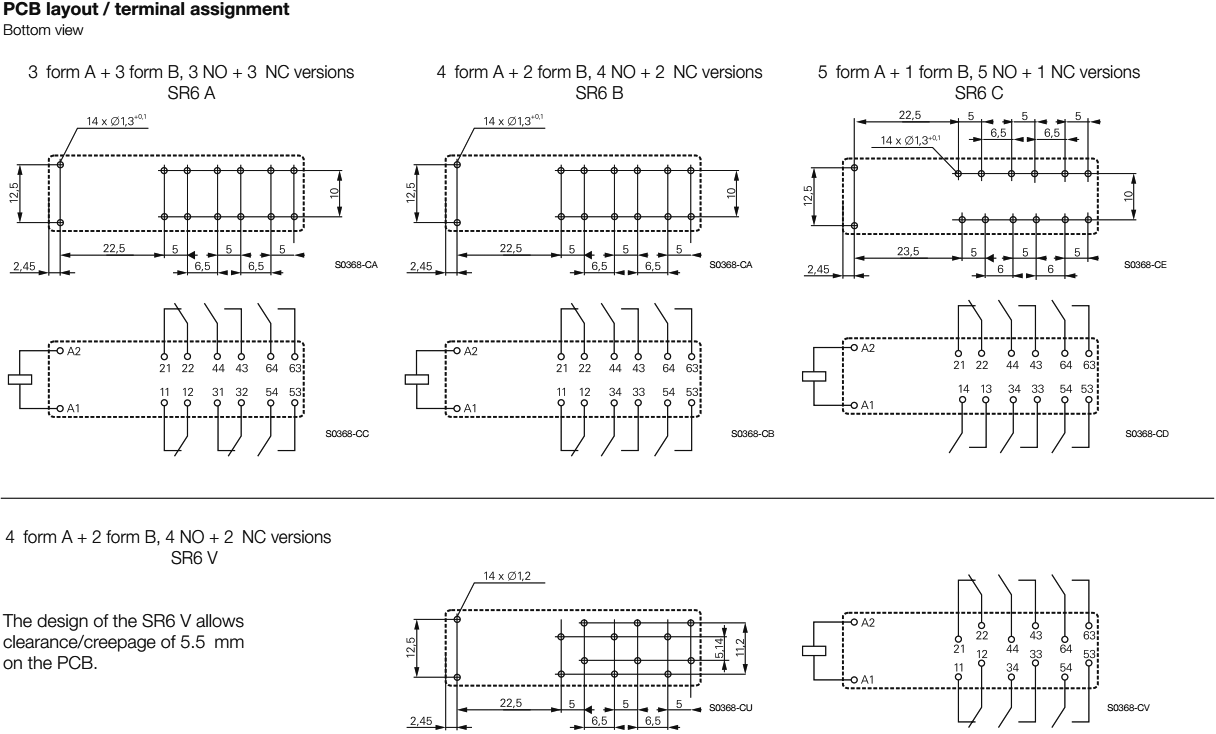

    Contacts configuration NC x2 + NO x4
    Contact current max. 8A
    Relay variant safety
    Type of relay electromagnetic
    Coil voltage min. 18V DC
