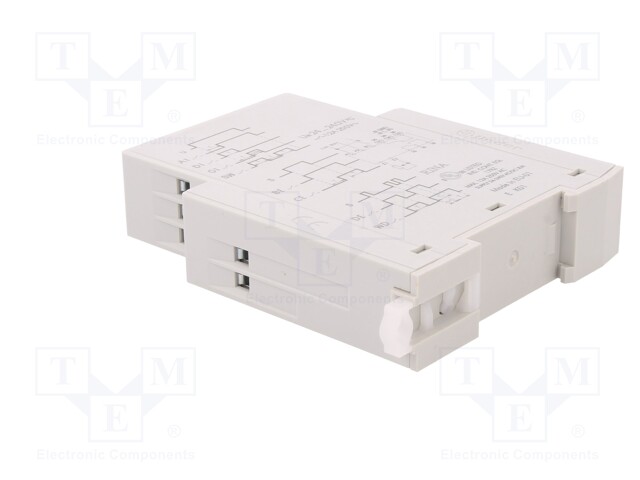

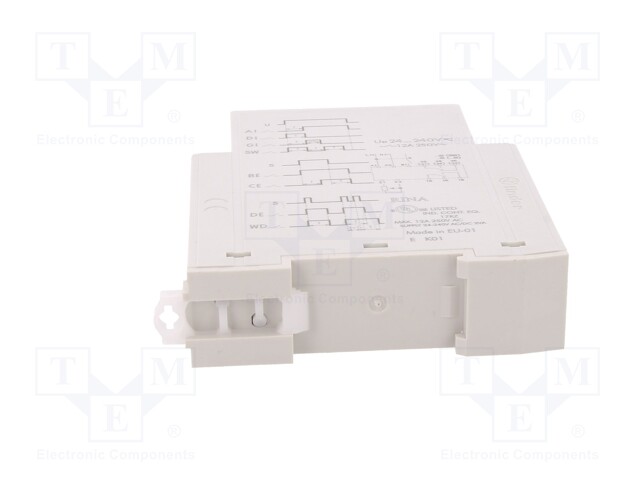

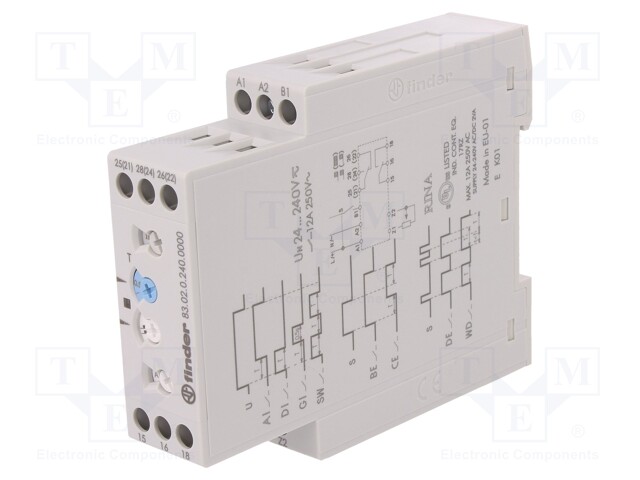

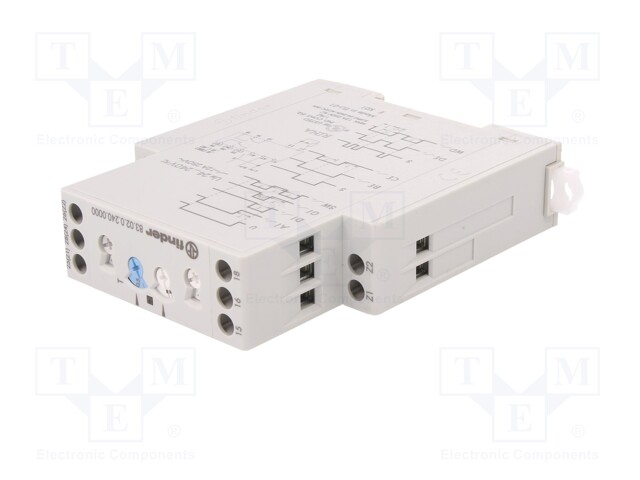

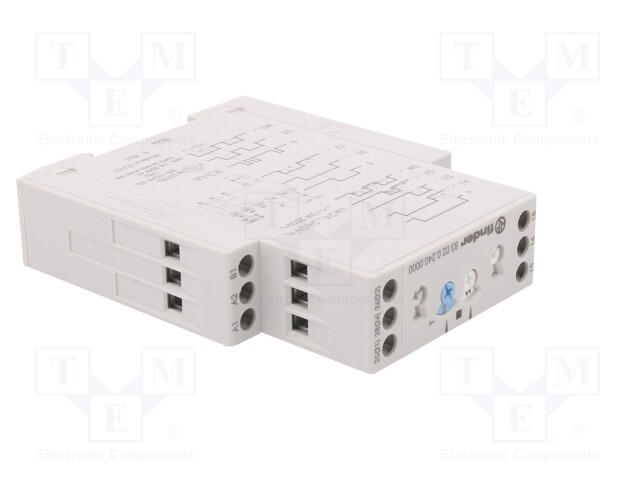

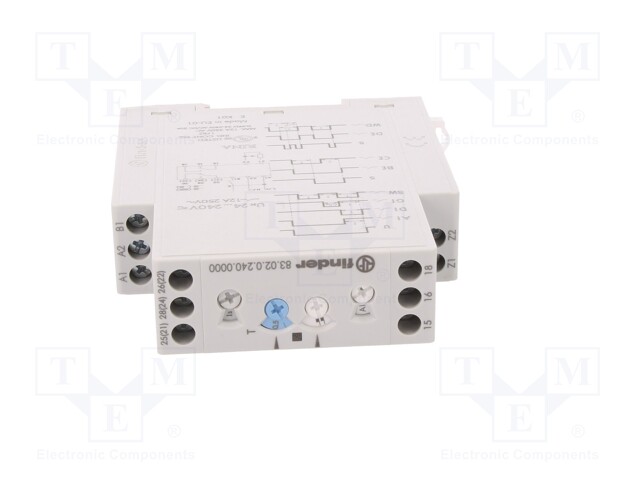

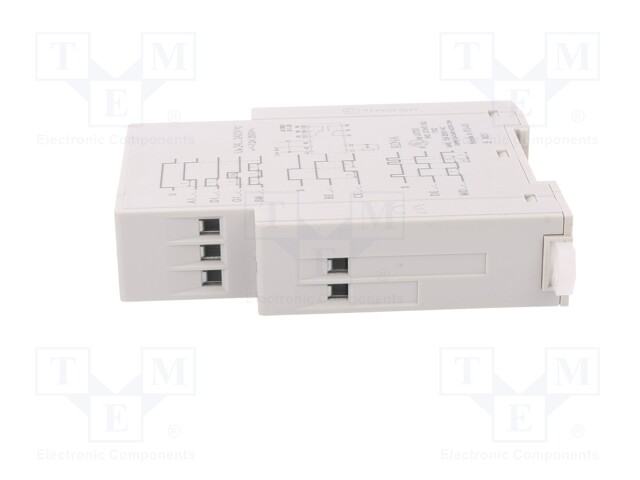

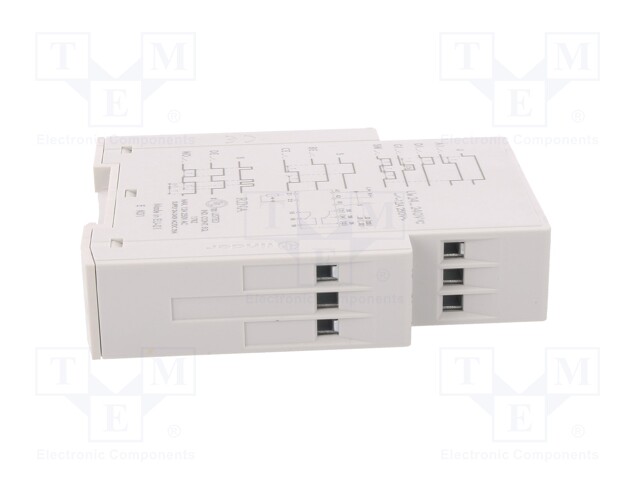

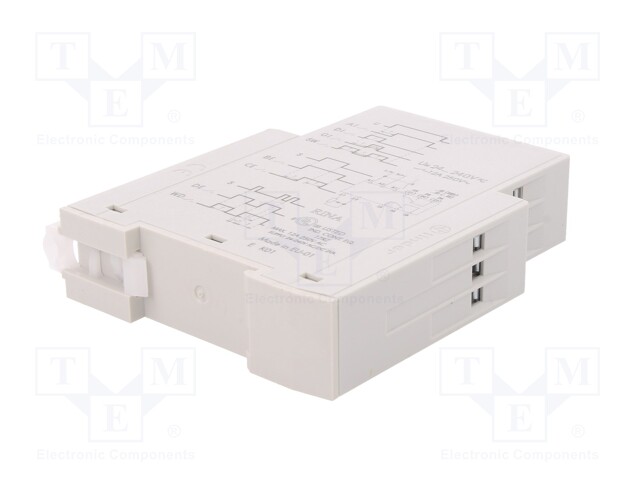

Timer; 0,05s÷10days; DPDT; 250VAC/12A; 24÷240VAC; 24÷240VDC; DIN
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
83.02.0.240.0000
Tootja: FINDER
Tootja tootekood: 83.02.0.240.0000
Product downloads
Spetsifikatsioon tootele Timer; 0,05s÷10days; DPDT; 250VAC/12A; 24÷240VAC; 24÷240VDC; DIN
| Mounting | for DIN rail mounting |
| Supply voltage | 24...240V AC, 24...240V DC |
| Operating temperature | -20...60°C |
| IP rating | IP20 |
| Number of pins | 11 |
| Kind of output | DPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,05s...10days |
| Counter operation modes | delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, pulse after a specified time, symmetrical cyclical operation pulse first, with the control contact S |
| Timers features | possibility to use a remote potentiometer to set the time |
| number of operation modes | 8 |
| The additional control inputs | START |
