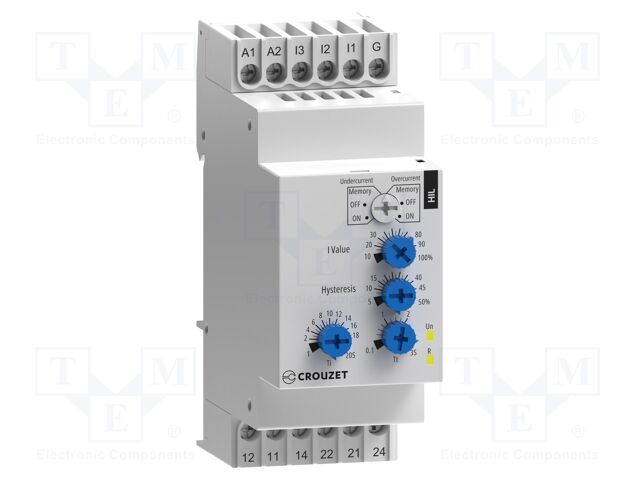

Module: current monitoring relay; AC current,DC current; 0.1÷3s

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 84871120
    Tootja: CROUZET
    Tootja tootekood: 84871120
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Additional functions
    • Power supply
    • Controlled parameter
    • Controlled parameter
    • Contact actuation delay
    • Kind of output 1

    170,79 € 170,79 € (KM-TA) 170.79 EUR

    170,79 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Module: current monitoring relay; AC current,DC current; 0.1÷3s

    Mounting for DIN rail mounting
    Supply voltage 24...240V AC, 24...240V DC
    Operating temperature -20...50°C
    IP rating IP20
    Leads screw terminals

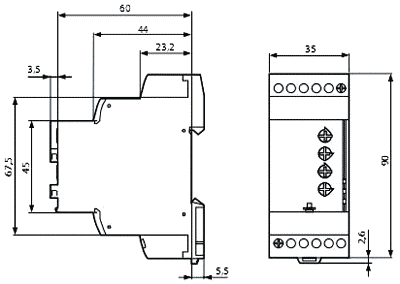

    Body dimensions 92.6x35x65.5mm
    Additional functions hysteresis 5-50%
    Power supply external
    Controlled parameter AC current, DC current
    Contact actuation delay 100ms...3s
    Kind of output 1 DPDT
