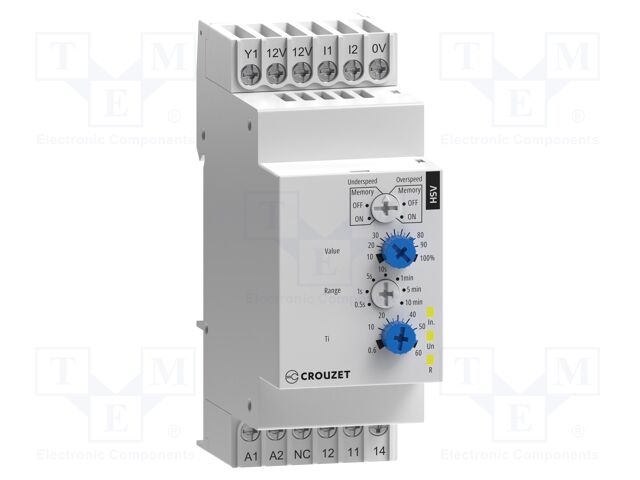

Module: speed monitoring relay; speed, stopping, cycles time

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 84874320
    Tootja: CROUZET
    Tootja tootekood: 84874320
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • Leads
    • Body dimensions
    • Kind of input 1
    • Kind of input 1
    • Kind of input 1
    • Kind of input 1
    • Counting range
    • Controlled parameter
    • Contact actuation delay
    • Kind of output 1

    200,93 € 200,93 € (KM-TA) 200.93 EUR

    200,93 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Module: speed monitoring relay; speed, stopping, cycles time

    Mounting for DIN rail mounting
    Supply voltage 24...240V AC, 24...240V DC
    Operating temperature -20...50°C
    Leads screw terminals

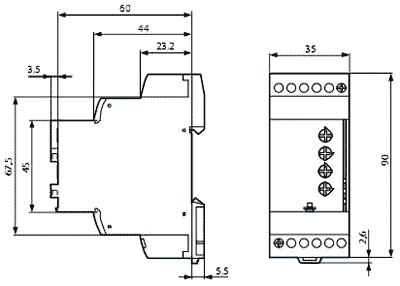

    Body dimensions 92.6x35x65.5mm
    Kind of input 1 contact, NPN, PNP, voltage
    Counting range 0.5s...10min
    Controlled parameter speed, stopping, cycles time
    Contact actuation delay 50ms
    Kind of output 1 SPDT
