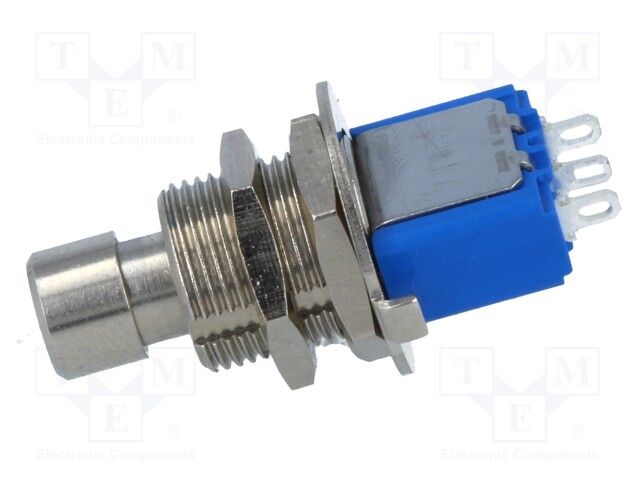

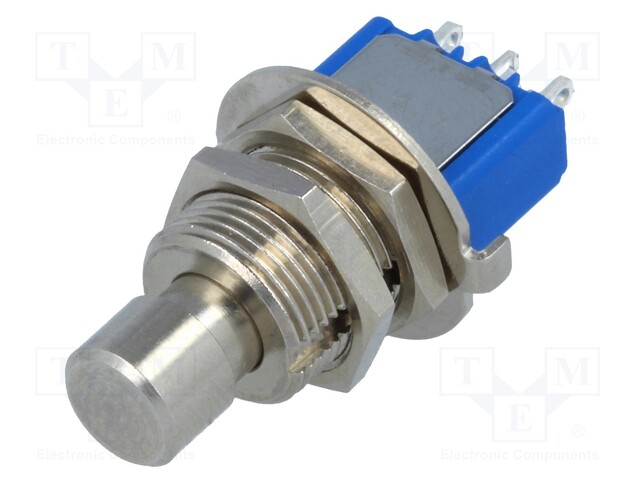

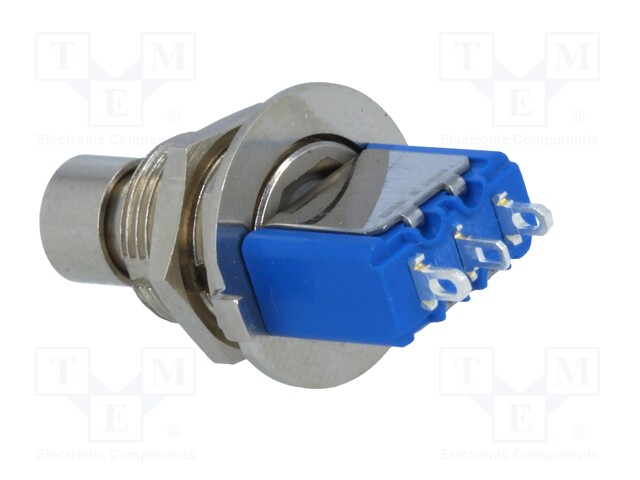

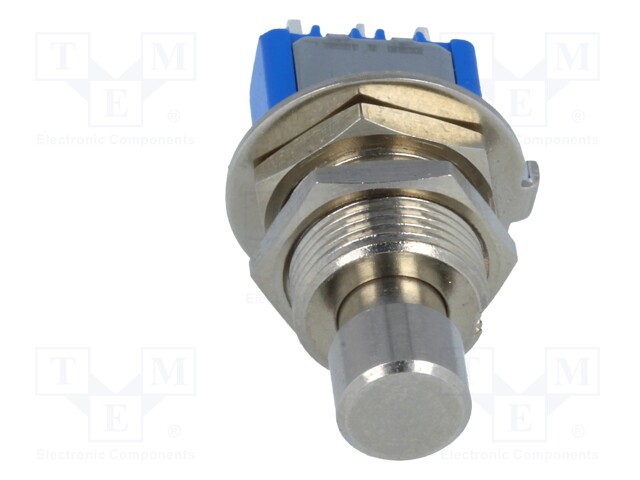

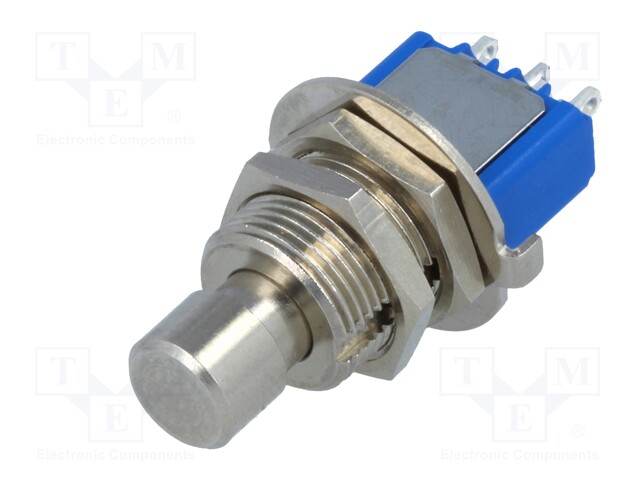

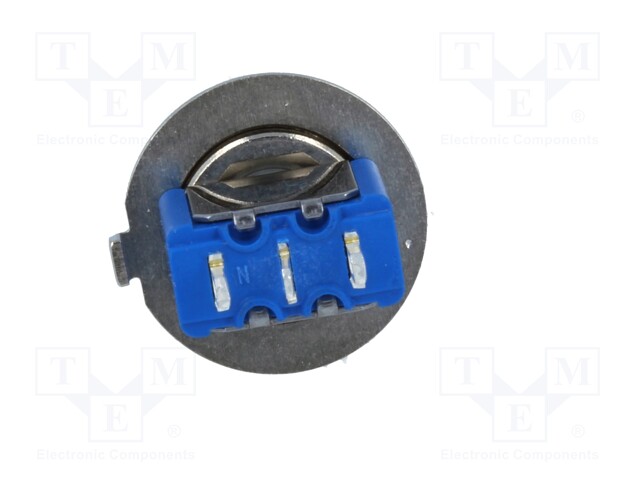

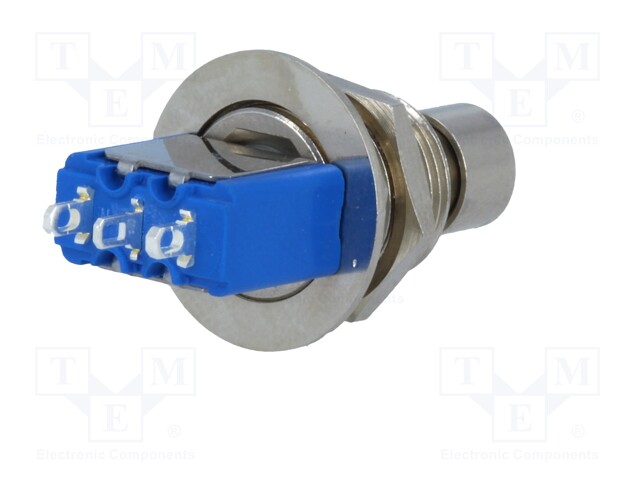

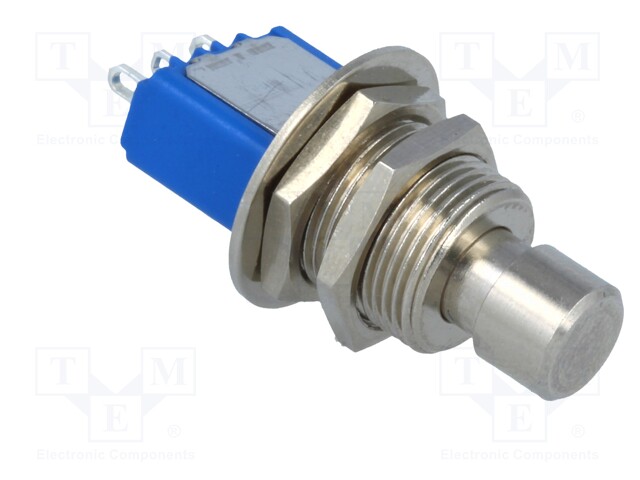

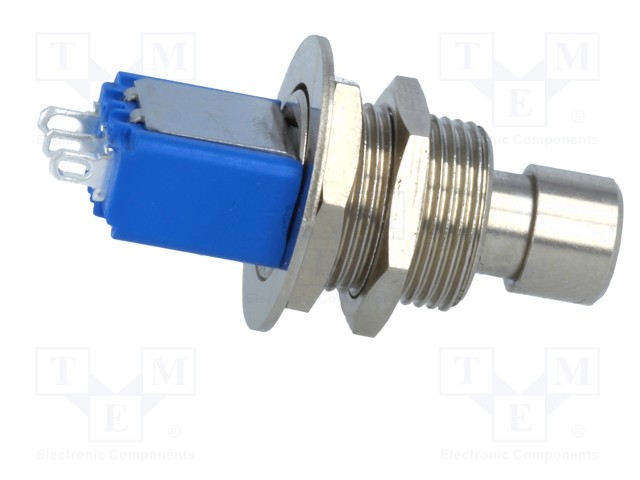

Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 4A/30VDC; Ø12.5mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 8632A5X933
    Tootja: APEM
    Tootja tootekood: 8632A5X933
    • Mounting
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Illumination
    • Plating material
    • Min. insulation resistance
    • Electrical life
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape

    12,66 € 12,66 € (KM-TA) 12.66 EUR

    12,66 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 4A/30VDC; Ø12.5mm

    Mounting on panel, PCB
    Operating temperature -40...85°C
    IP rating IP40
    Type of switch push-button
    Number of positions 2
    Leads for soldering
    Contact material silver
    Max. contact resistance 10mΩ
    Body material brass

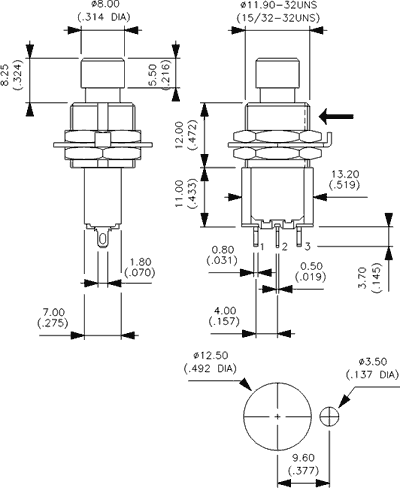

    Mounting hole diameter Ø12.5mm
    Body colour silver
    Illumination none
    Plating material nickel
    Min. insulation resistance 1GΩ
    Electrical life 30000cycles
    Test voltage 2kV
    Contacts configuration SPDT
    DC contacts rating @R 4A / 30V DC
    AC contacts rating @R 3A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Button shape prominent
