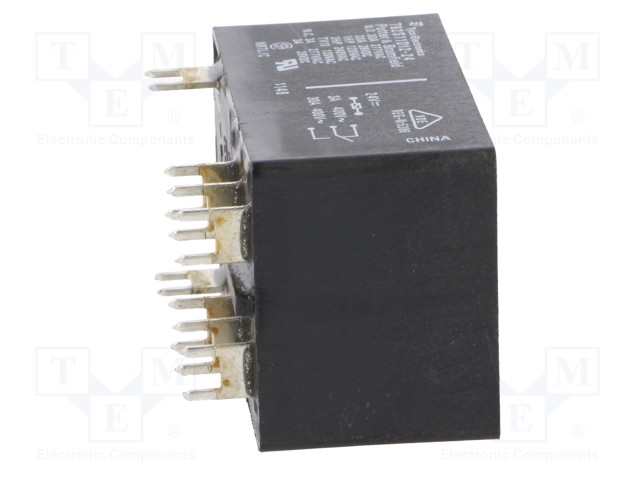

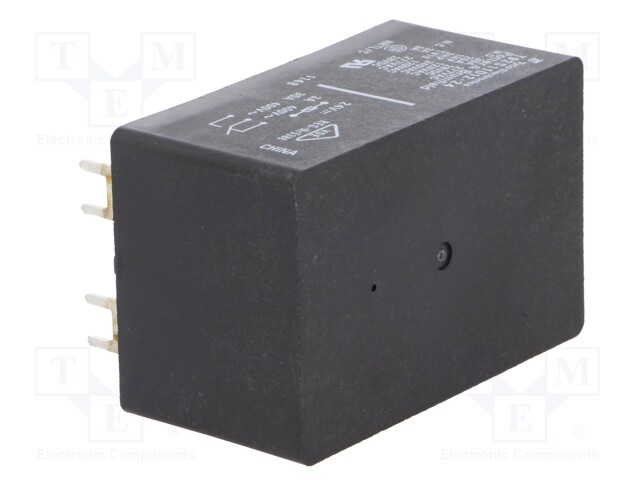

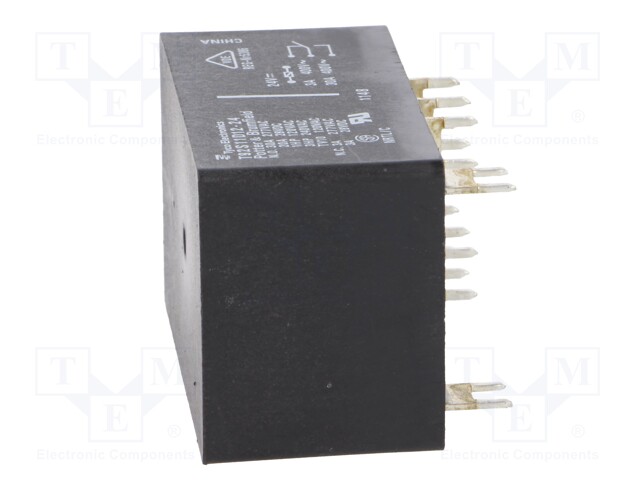

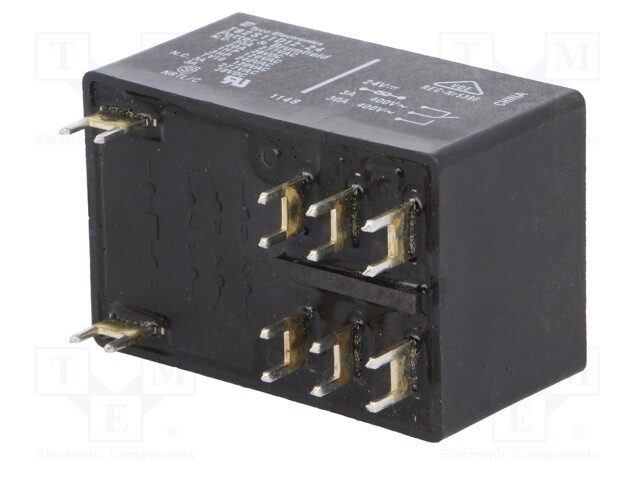

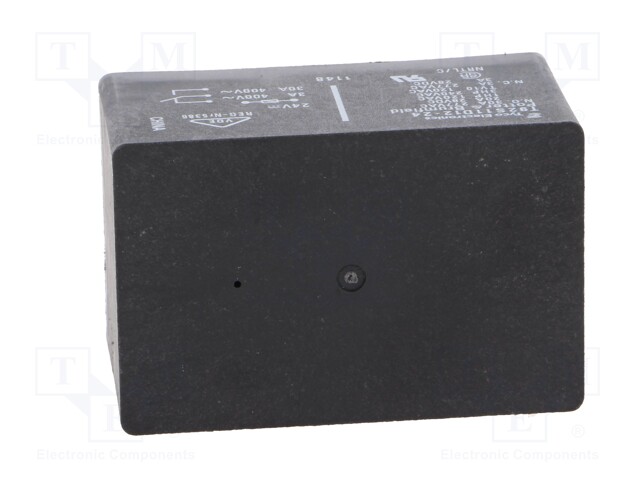

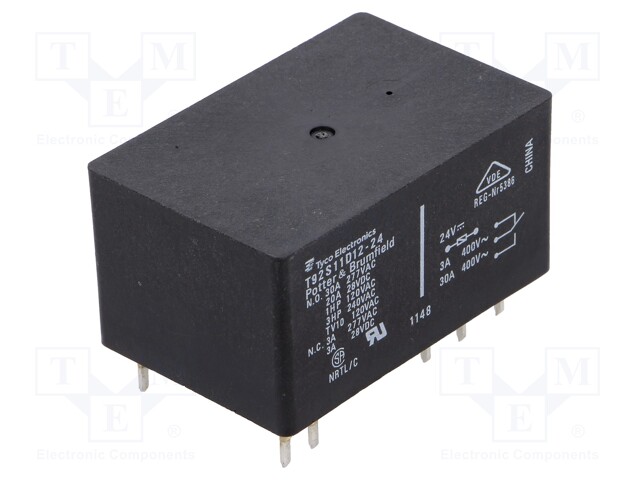

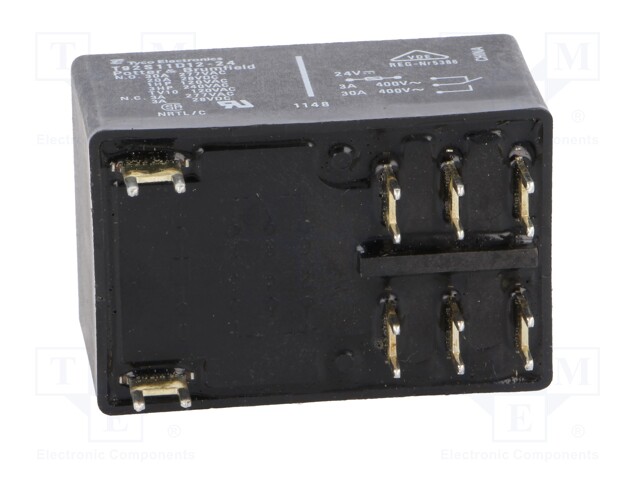

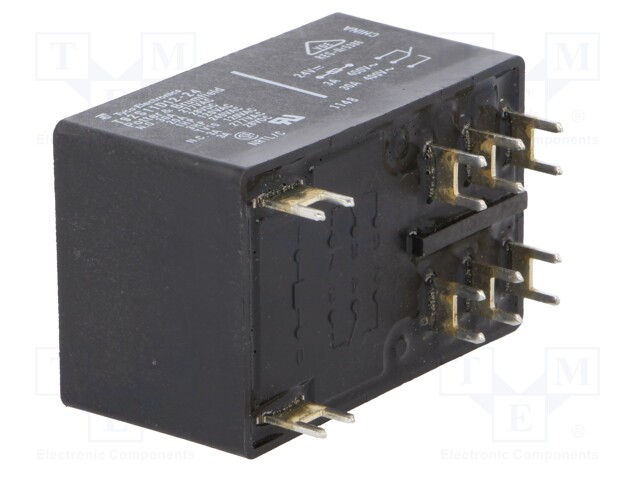

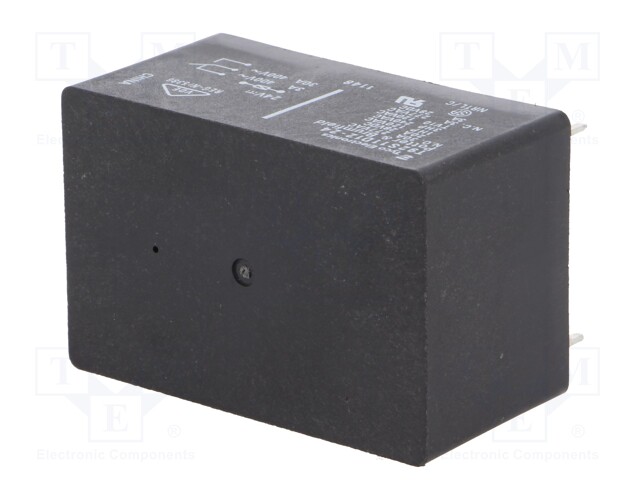

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 30A; Series: T92; 350Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9-1393211-0
    Tootja: TE Connectivity
    Tootja tootekood: 9-1393211-0
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    20,85 € 20,85 € (KM-TA) 20.85 EUR

    20,85 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 30A; Series: T92; 350Ω

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Contact material AgCdO

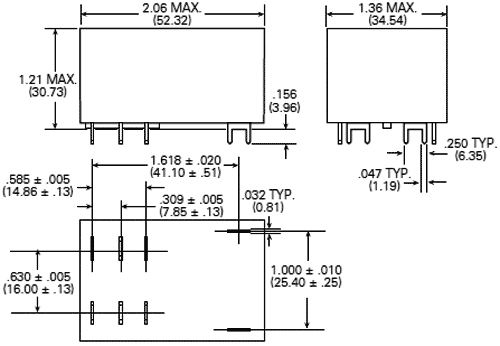

    Body dimensions 52.32x34.54x30.73mm
    Mechanical durability 5000000cycles
    Switched voltage ≤ 28V DC, ≤ 600V AC
    Coil resistance 350Ω
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 20A / 28V DC
    AC contacts rating @R 30A / 277V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 1.7W
