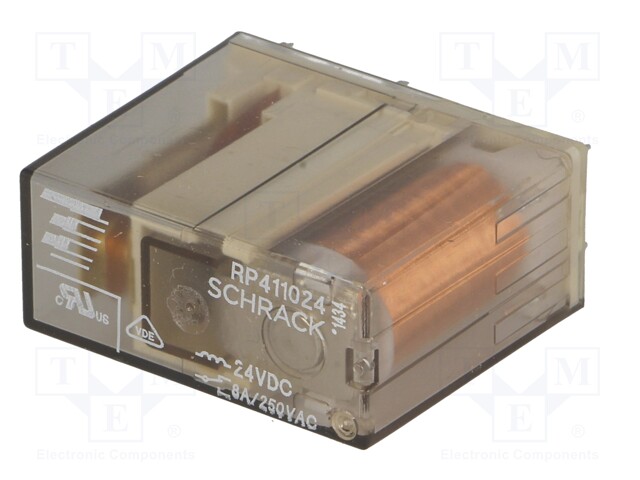

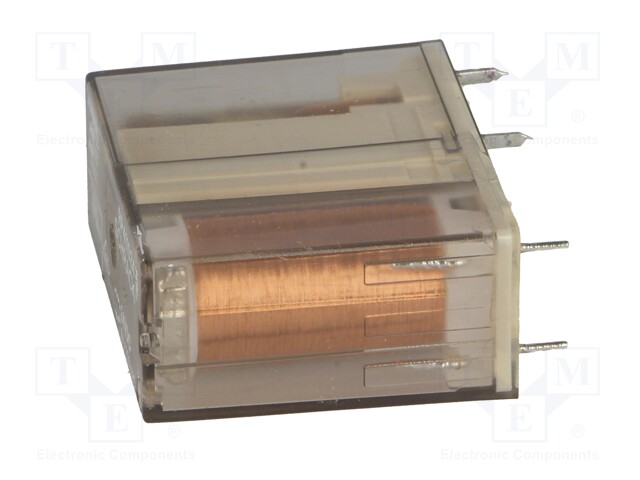

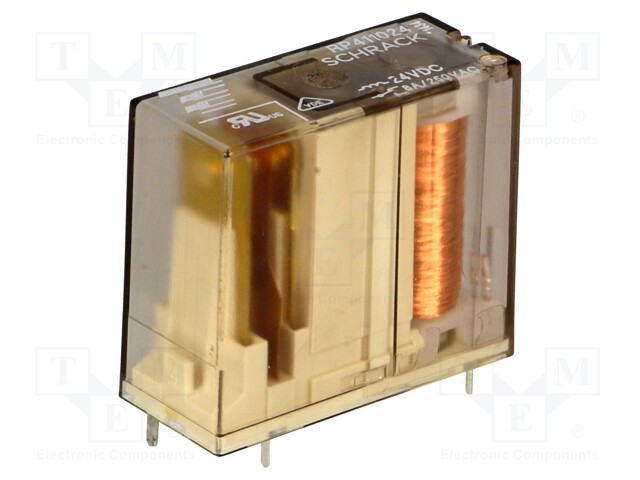

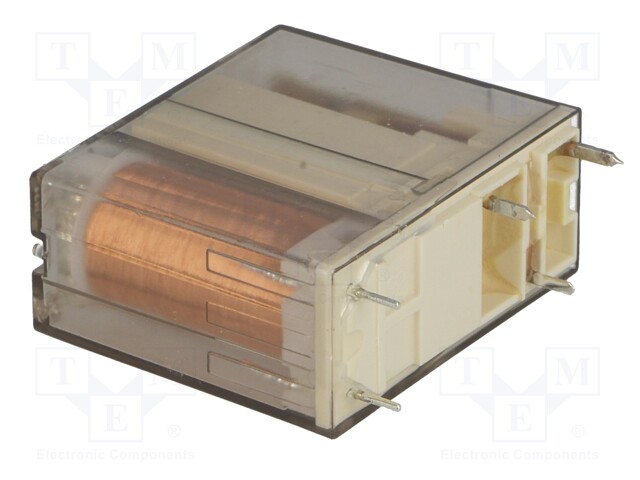

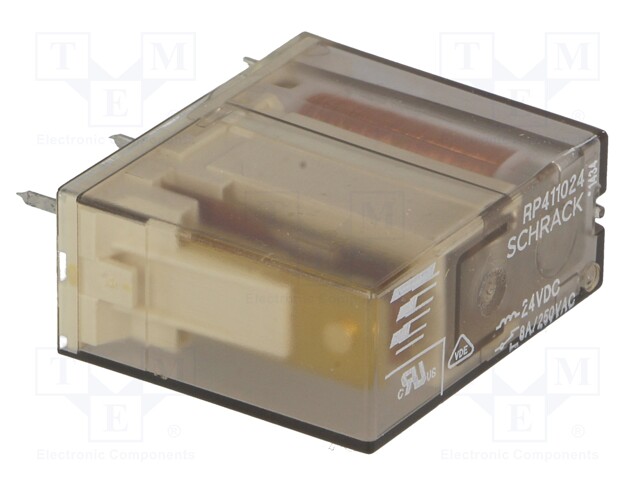

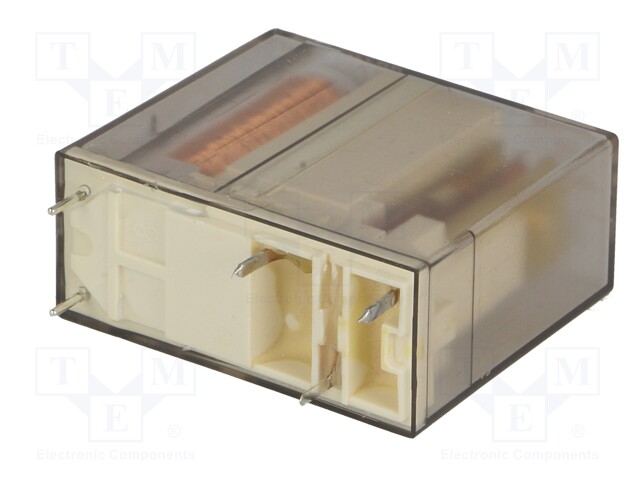

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9-1393230-5
    Tootja: TE Connectivity
    Tootja tootekood: 9-1393230-5
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    9,36 € 9,36 € (KM-TA) 9.36 EUR

    9,36 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP40
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 29x12.6x25.5mm
    Mechanical durability 30000000cycles
    Switched voltage ≤ 300V DC, ≤ 440V AC
    Switching capacity 4kVA
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 24V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 0.5W
    Operate time 8ms
    Release time 2ms
    Coil current 21.8mA
